Bilstein 33-344188 - XVA-BV Universal Shock Absorber (1-way Adjustable / 8in LMSC Rear)

Bilstein  |  SKU: BIL-33-344188
Sale price $74639 Regular price $82103

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

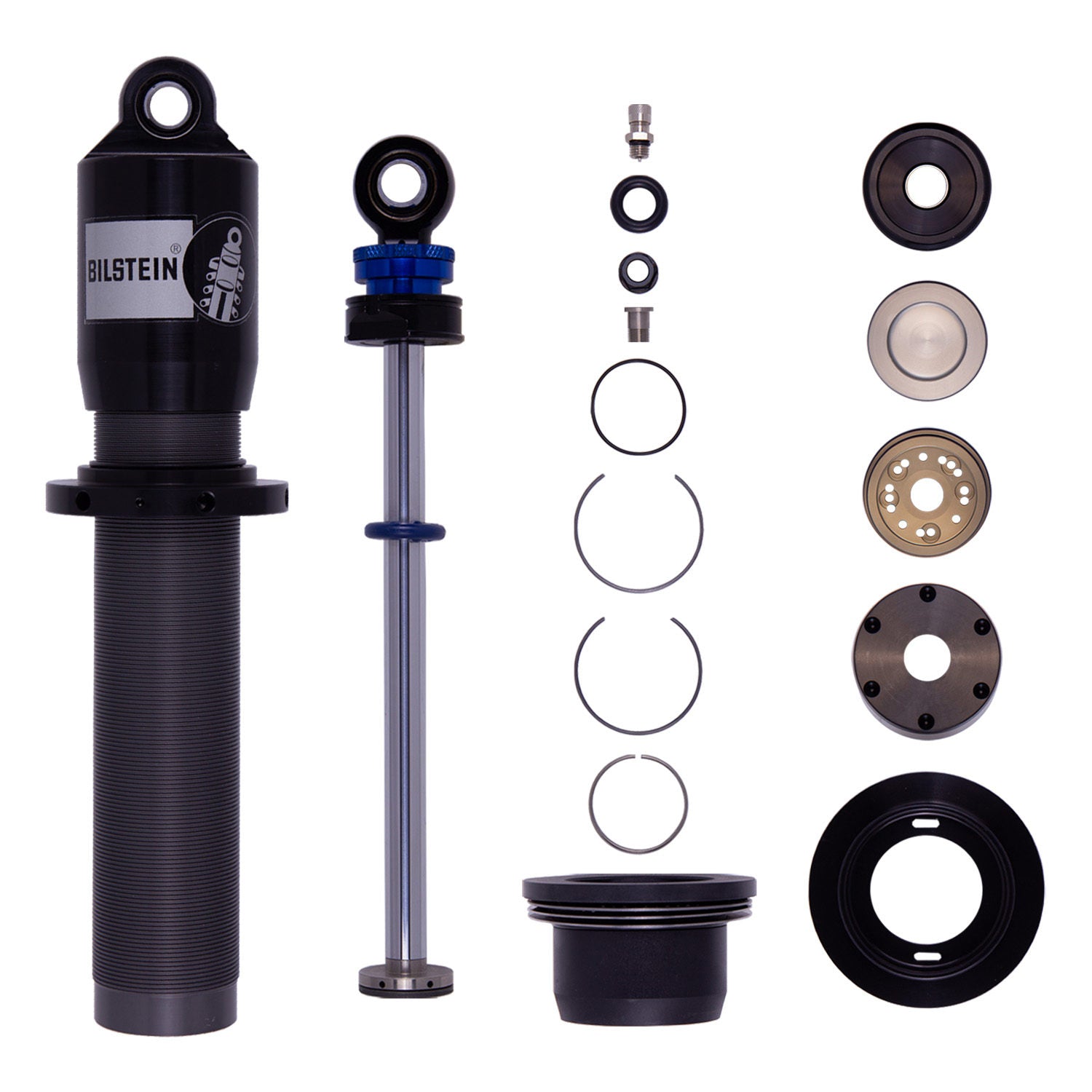

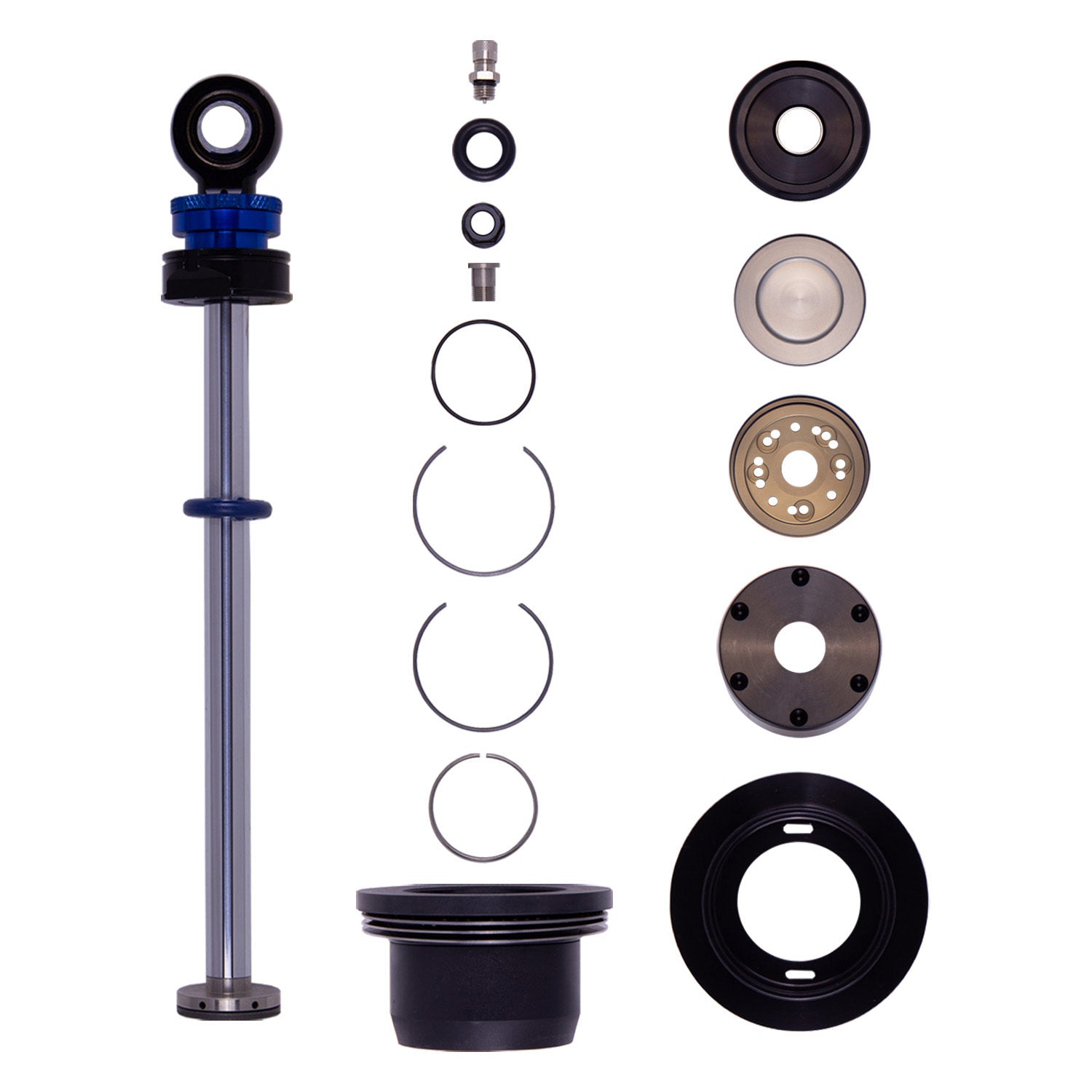

Bilstein 33-344188 - XVA-BV Universal Shock Absorber (1-way Adjustable / 8in LMSC Rear)

XVA Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

  • 46mm extruded aluminum threaded body improves durability and heat dissipation
  • Dual-zone gas bulb decreases gas pressure while increasing grip levels
  • Optimized floating piston improves driver feel and response
Boot Included: No
Internal Design: Monotube
Body Material: Aluminum
Finish: Clear Anodized
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Series: XVA Series
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Upper Mount Type: 1/2in Heim
Piston Diameter: 46mm
Shaft Diameter: 14mm
Collapsed Length (IN): 14.86
Spring Seat Included: Yes
Collapsed Length (MM): 377.5
Extended Length (IN): 22.00
Adjustable Damping: Single Adjustable - Rebound
Stroke/Travel Length (IN): 7.14
Stroke/Travel Length (mm): 181.4
Piston Type: Sold Separately
Segment: Motorsports
Extended Length (MM): 558.8
