Bilstein 33-318950 - 15-20 Ford F-150 B8 5100 Shock Rear
Bilstein | SKU:
BIL-33-318950
Sale price
$12300
Regular price
$17185
Unit price
/
Unavailable
$48.85 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

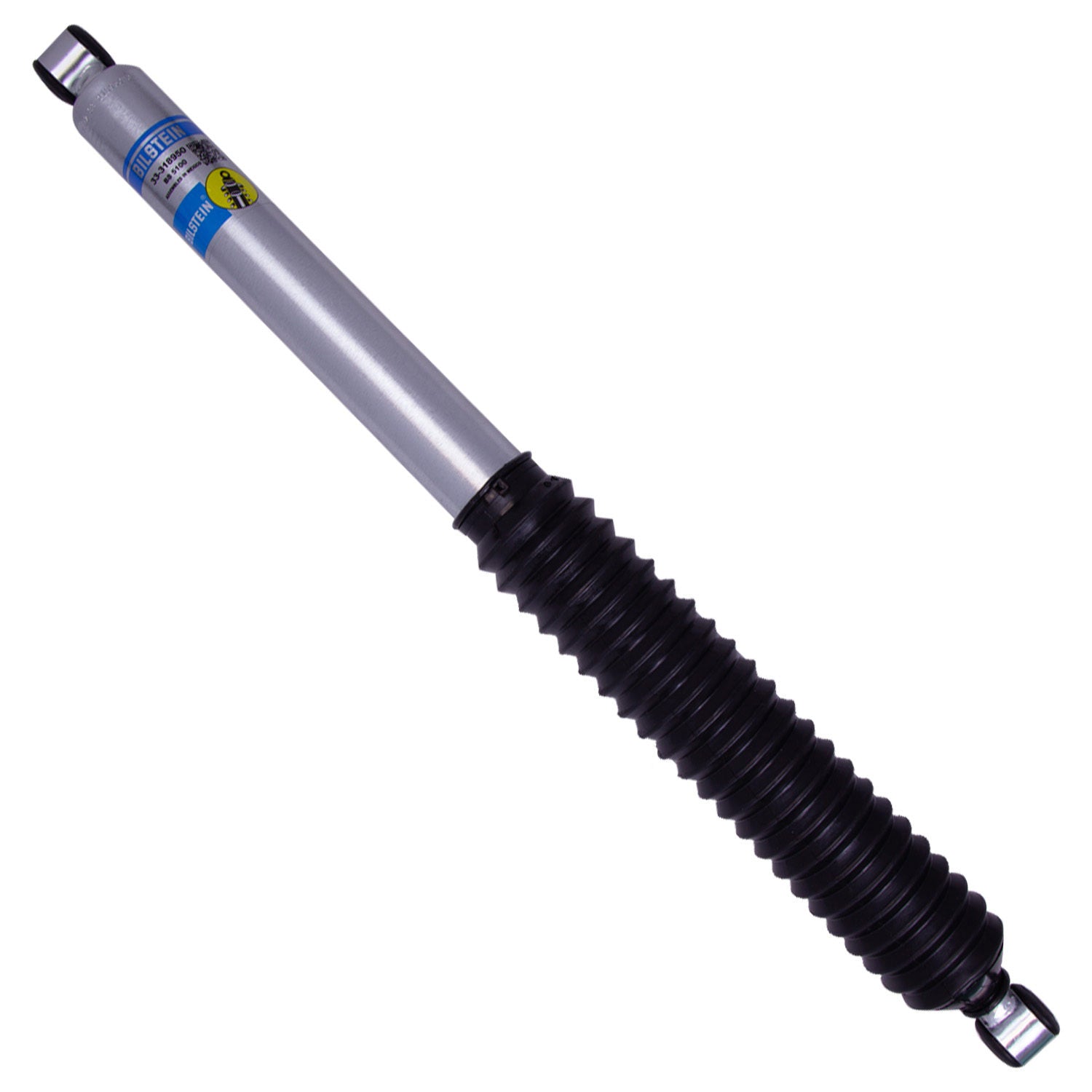

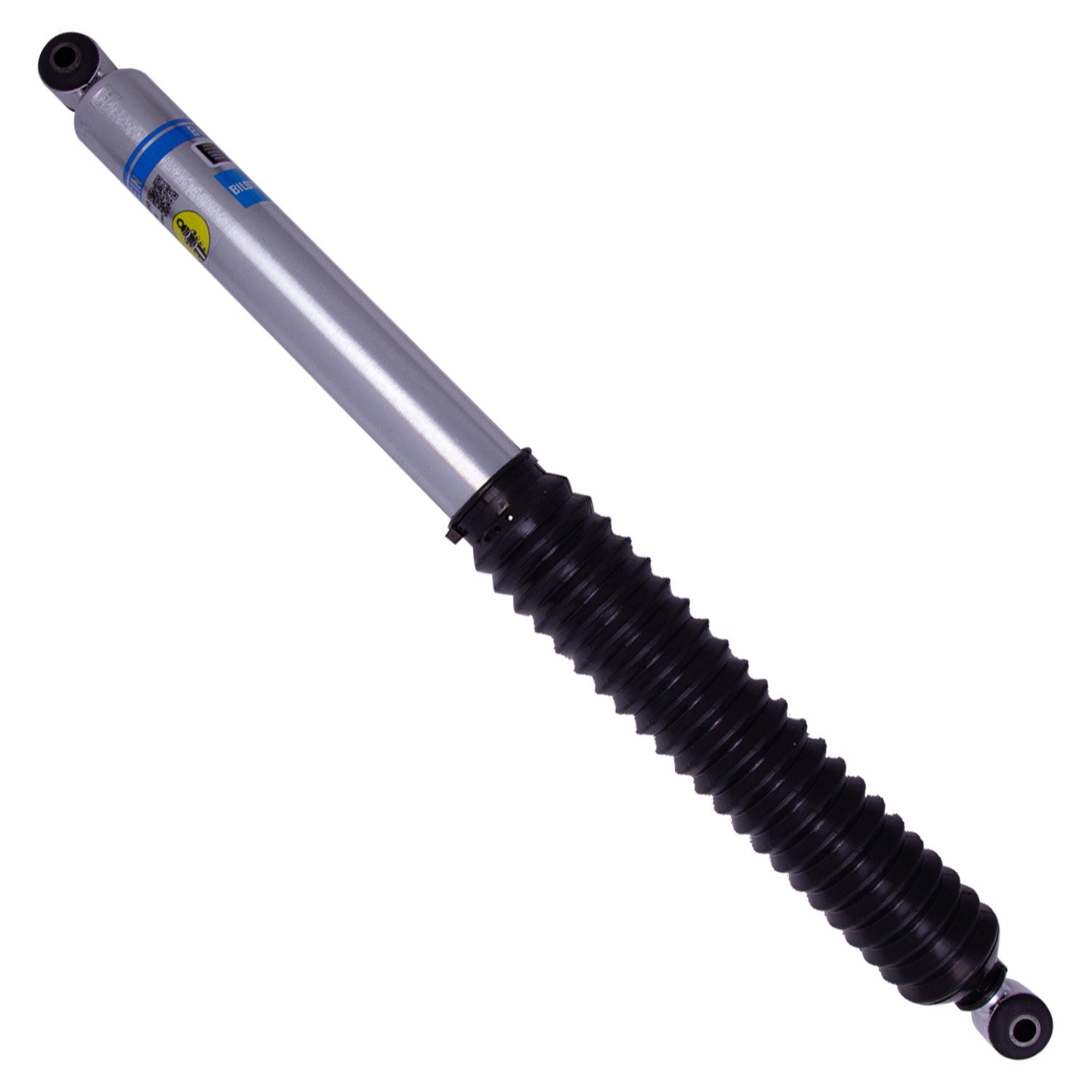

Bilstein 33-318950 - 15-20 Ford F-150 B8 5100 Shock Rear
B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Internal Design: Monotube
Collapsed Length (MM): 462.8
PartType: Shocks / Struts
Stroke/Travel Length (mm): 285.8
Shaft Diameter: 14mm
Finish: Zinc Plated
Stroke/Travel Length (IN): 11.25
Upper Mount Type: Eye 12mm
Segment: Light Truck
Spring Seat Included: No
Extended Length (IN): 29.47
Lower Mount Type: Eye 12mm
Reservoir: No
Piston Diameter: 46mm
Adjustable Damping: Non-Adjustable
Collapsed Length (IN): 18.22
Series: B8 5100
Extended Length (MM): 748.5
Boot Included: Black Bellows
Body Design: Smooth Body (Non-coilover)
