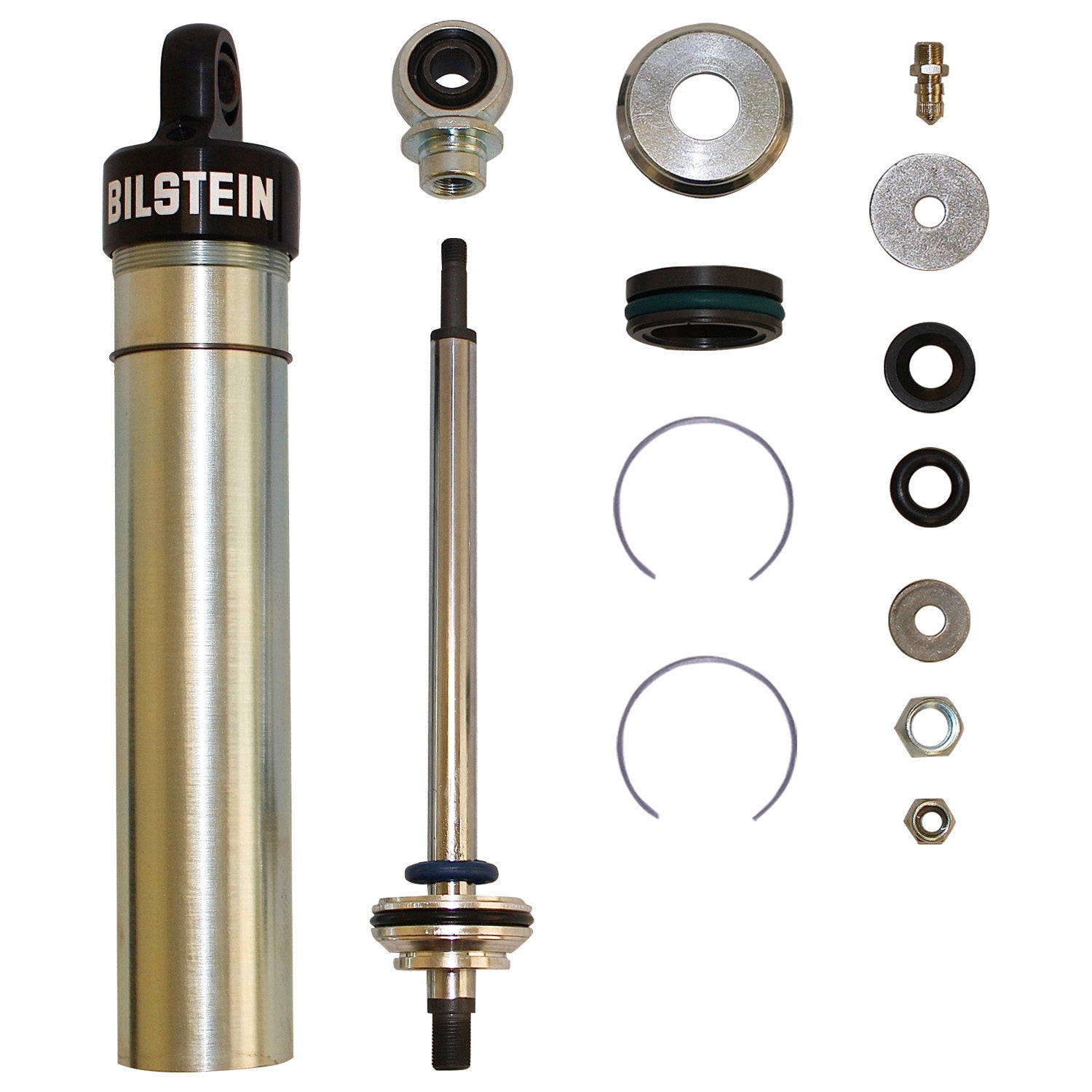

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 33-316420 - Shock Absorbers

SN2 Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2” graphite heims
Segment: Motorsports
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Collapsed Length (IN): 11.00
Extended Length (MM): 401.9
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
PartType: Shocks / Struts
Stroke/Travel Length (IN): 4.82
Body Design: Smooth Body Screw Top (Non-coilover)
Series: SN2 Series
Body Material: Steel
Stroke/Travel Length (mm): 122.4
Collapsed Length (MM): 279.4
Boot Included: No
Finish: Zinc Plated
Shaft Diameter: 14mm
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Piston Type: Sold Separately
Extended Length (IN): 15.82
