Bilstein 33-314709 - Shock Absorbers

Bilstein  |  SKU: BIL-33-314709
Sale price $60577 Regular price $66635

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

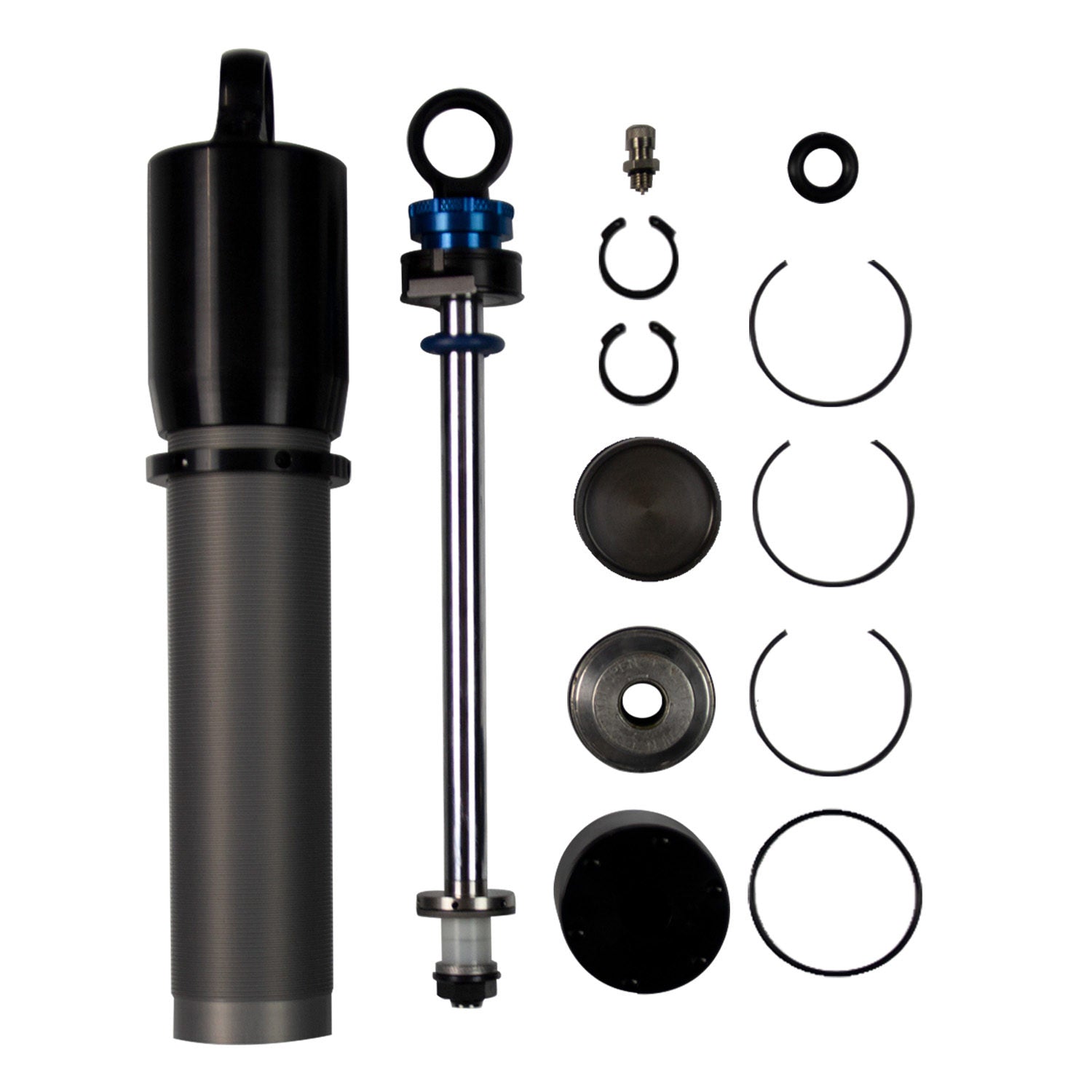

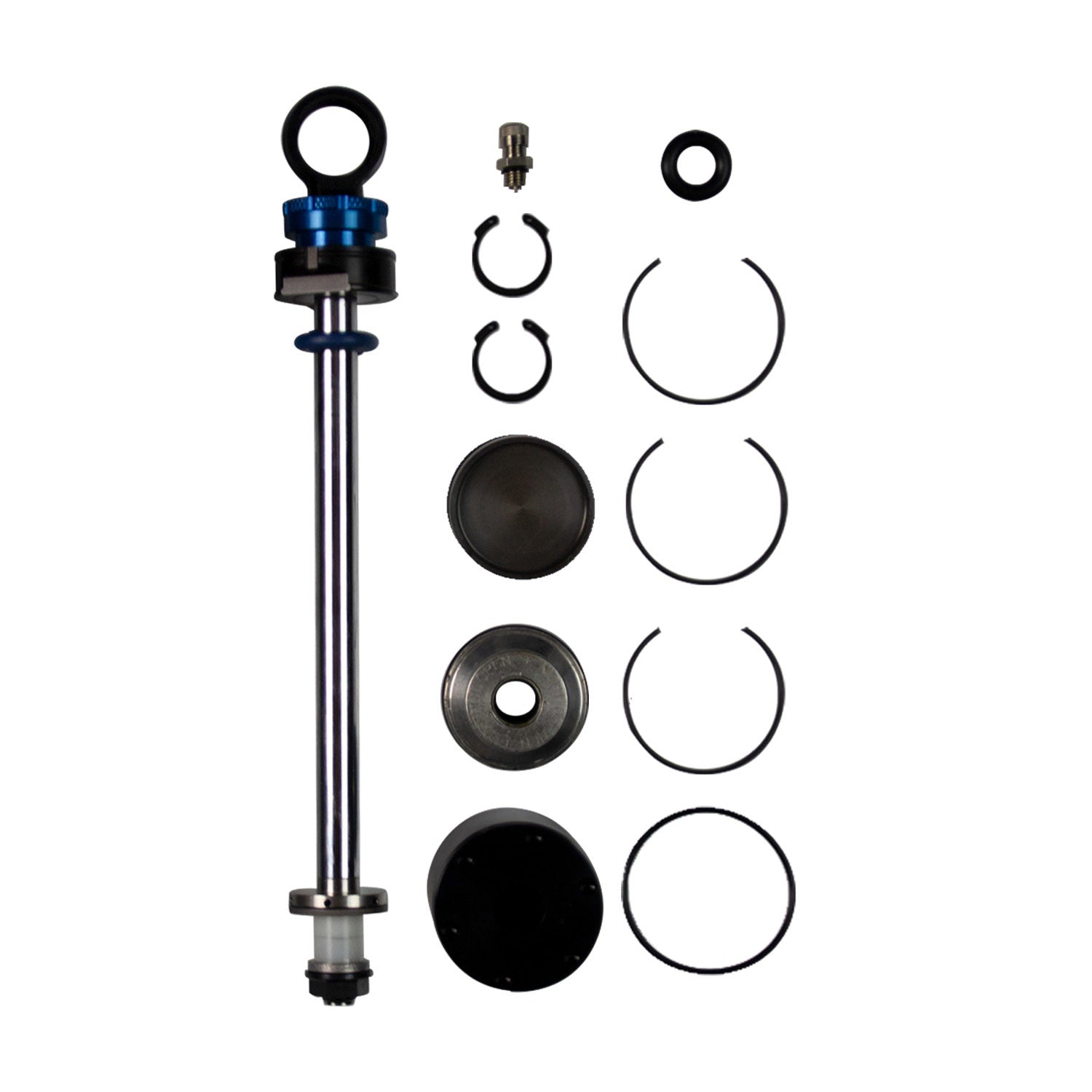

Bilstein 33-314709 - Shock Absorbers

XVA Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

  • 46mm extruded aluminum threaded body improves durability and heat dissipation
  • Dual-zone gas bulb decreases gas pressure while increasing grip levels
  • Optimized floating piston improves driver feel and response
Spring Seat Included: No
Adjustable Damping: Single Adjustable - Rebound
Collapsed Length (IN): 13.03
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Extended Length (MM): 471.0
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
PartType: Shocks / Struts
Series: XVA Series
Stroke/Travel Length (IN): 5.51
Body Material: Aluminum
Stroke/Travel Length (mm): 140.0
Collapsed Length (MM): 331.0
Boot Included: No
Finish: Clear Anodized
Shaft Diameter: 14mm
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Segment: Motorsports
Piston Type: Sold Separately
Extended Length (IN): 18.54
