Bilstein 33-313146 - 07-14 Toyota FJ Cruiser / 03-24 Toyota 4Runner B8 5100 Rear 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-313146
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

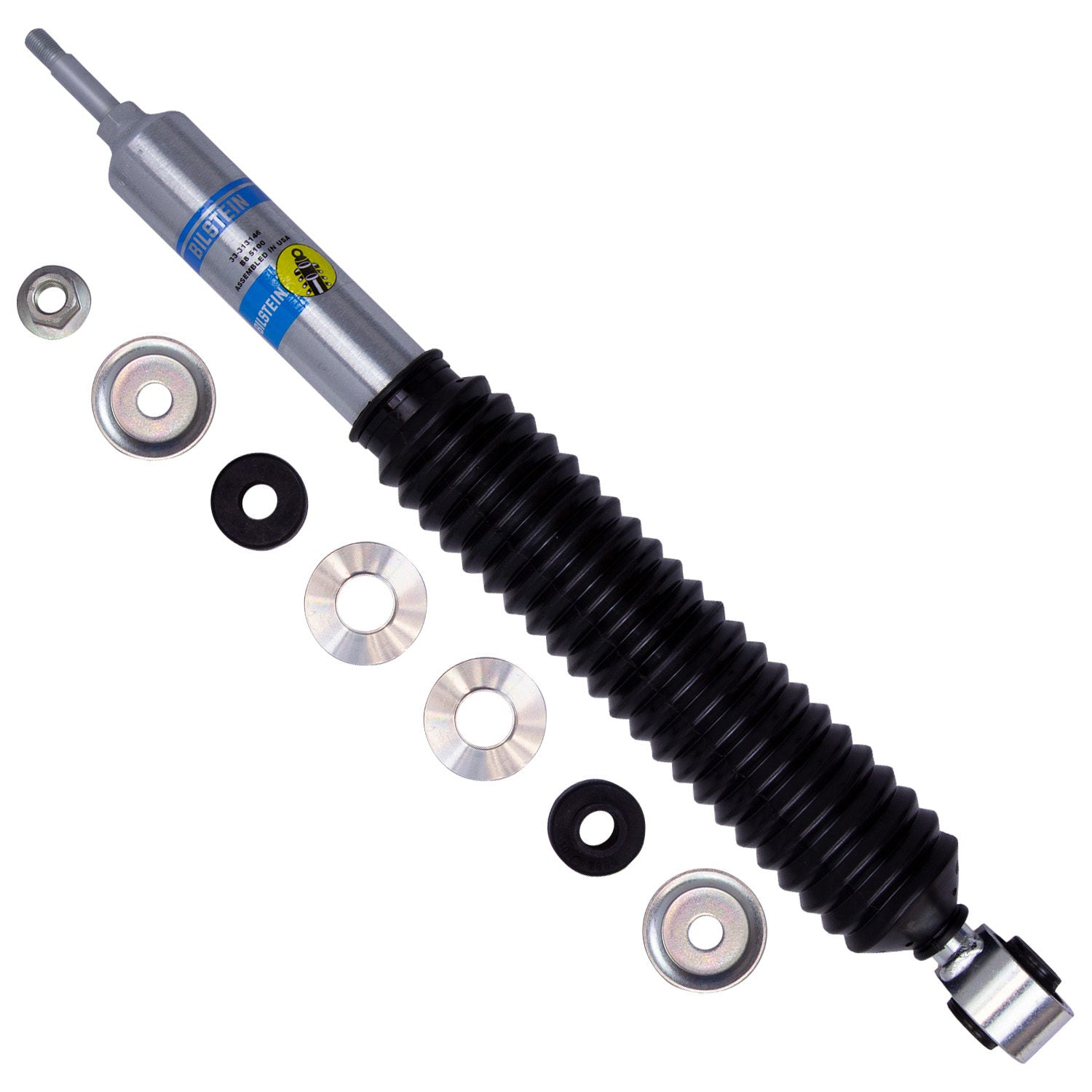

Bilstein 33-313146 - 07-14 Toyota FJ Cruiser / 03-24 Toyota 4Runner B8 5100 Rear 46mm Monotube Shock Absorber

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Internal Design: Monotube
Body Design: Smooth Body (Non-coilover)
Collapsed Length (MM): 378.8
Series: B8 5100
Stroke/Travel Length (IN): 8.12
Lower Mount Type: Eye 19.3mm
Upper Mount Type: Stem
Extended Length (MM): 585.0
Piston Diameter: 46mm
Segment: Light Truck
Adjustable Damping: Non-Adjustable
Collapsed Length (IN): 14.91
Spring Seat Included: No
Finish: Zinc Plated
Extended Length (IN): 23.03
Shaft Diameter: 14mm
Boot Included: Black Bellows
Reservoir: No
Stroke/Travel Length (mm): 206.3
PartType: Shocks / Struts
