Bilstein 33-297996 - Shock Absorbers

Bilstein  |  SKU: BIL-33-297996
Sale price $44900 Regular price $49390

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

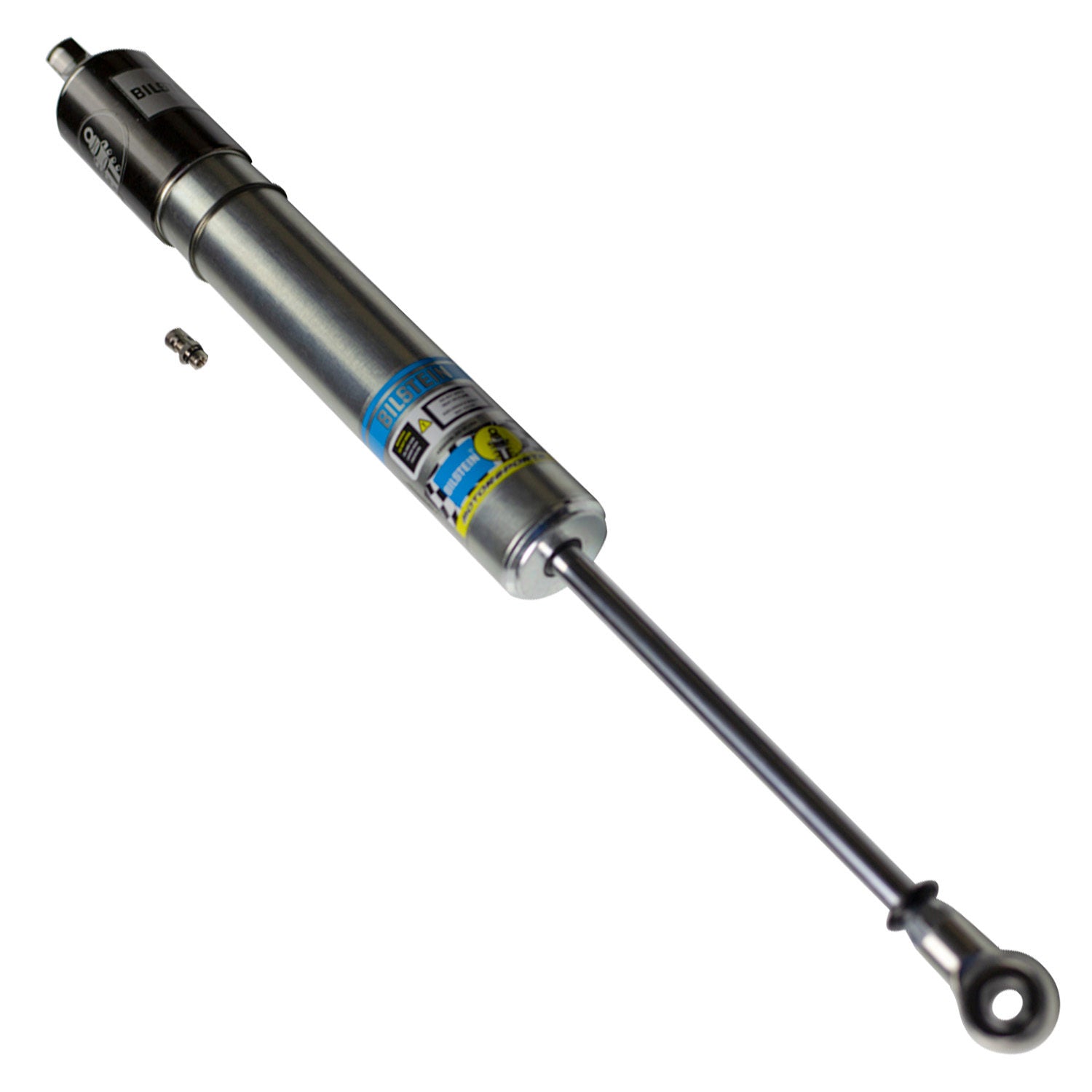

Bilstein 33-297996 - Shock Absorbers

Shock - SNS2 BV Series - Monotube - 13.35 in Compressed - 19.16 in Extended - 1.81 in OD - C4-R6 Valve - Steel - Zinc Plated - Each

46mm Monotube Shock Absorber

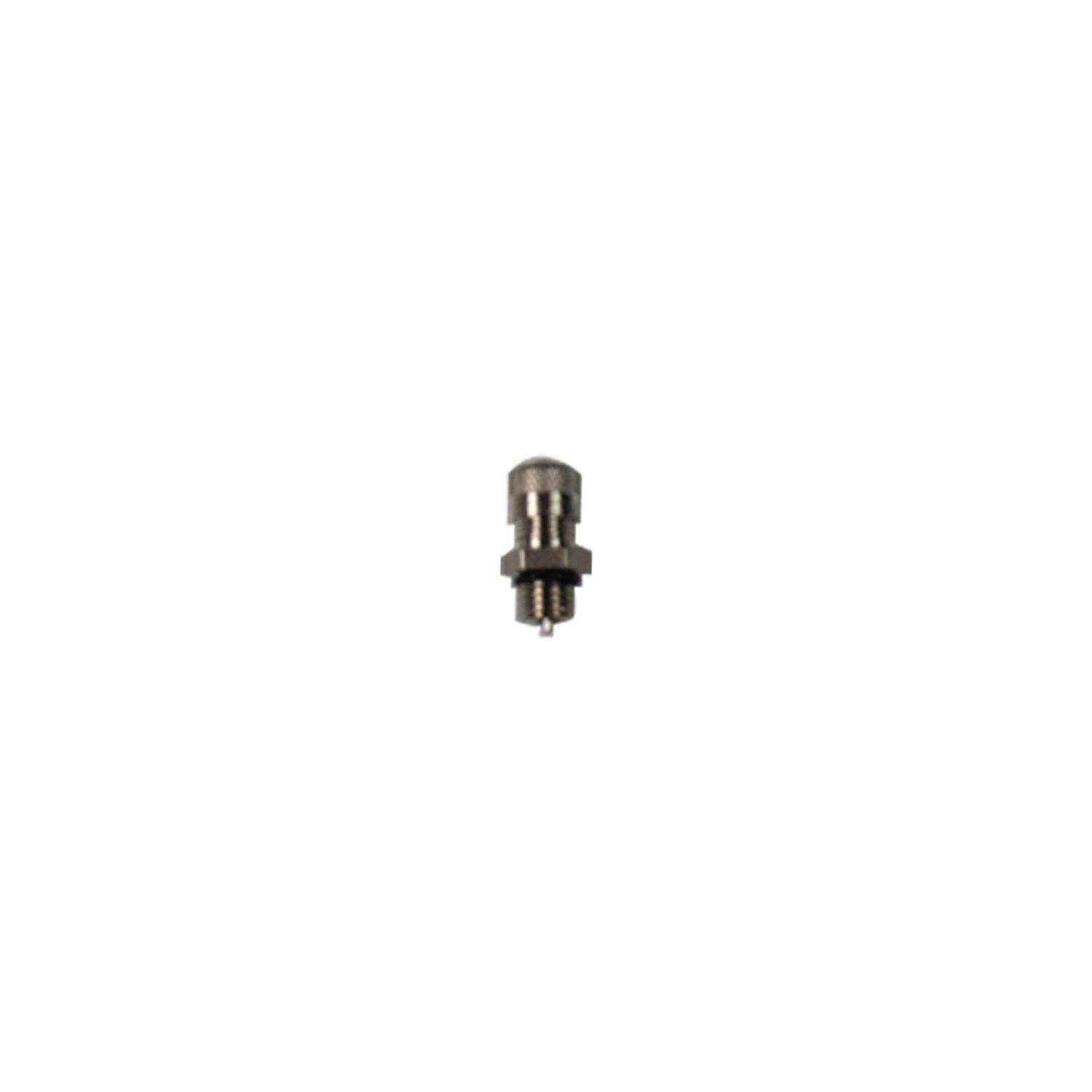

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

  • Base Valve design delivers ultra low rod pressures and elminates gas preload
  • Modular steel body design allows racer rebuildability
  • Comes with IMCA-legal plug assembly installed (SNS2 Series)
Body Material: Steel
Stroke/Travel Length (mm): 147.8
Collapsed Length (MM): 339.0
Boot Included: No
Finish: Zinc Plated
Shaft Diameter: 14mm
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Segment: Motorsports
Spring Hardware: B4-BOA-0000117
Piston Type: Linear
Extended Length (IN): 19.16
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Collapsed Length (IN): 13.35
Body Design: Smooth Body Screw Top (Non-coilover)
Extended Length (MM): 486.8
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
PartType: Shocks / Struts
Series: SNS2 Series (BV)
Stroke/Travel Length (IN): 5.82
