Bilstein 33-286884 - Shock Absorbers

Bilstein  |  SKU: BIL-33-286884
Sale price $63300 Regular price $69630

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

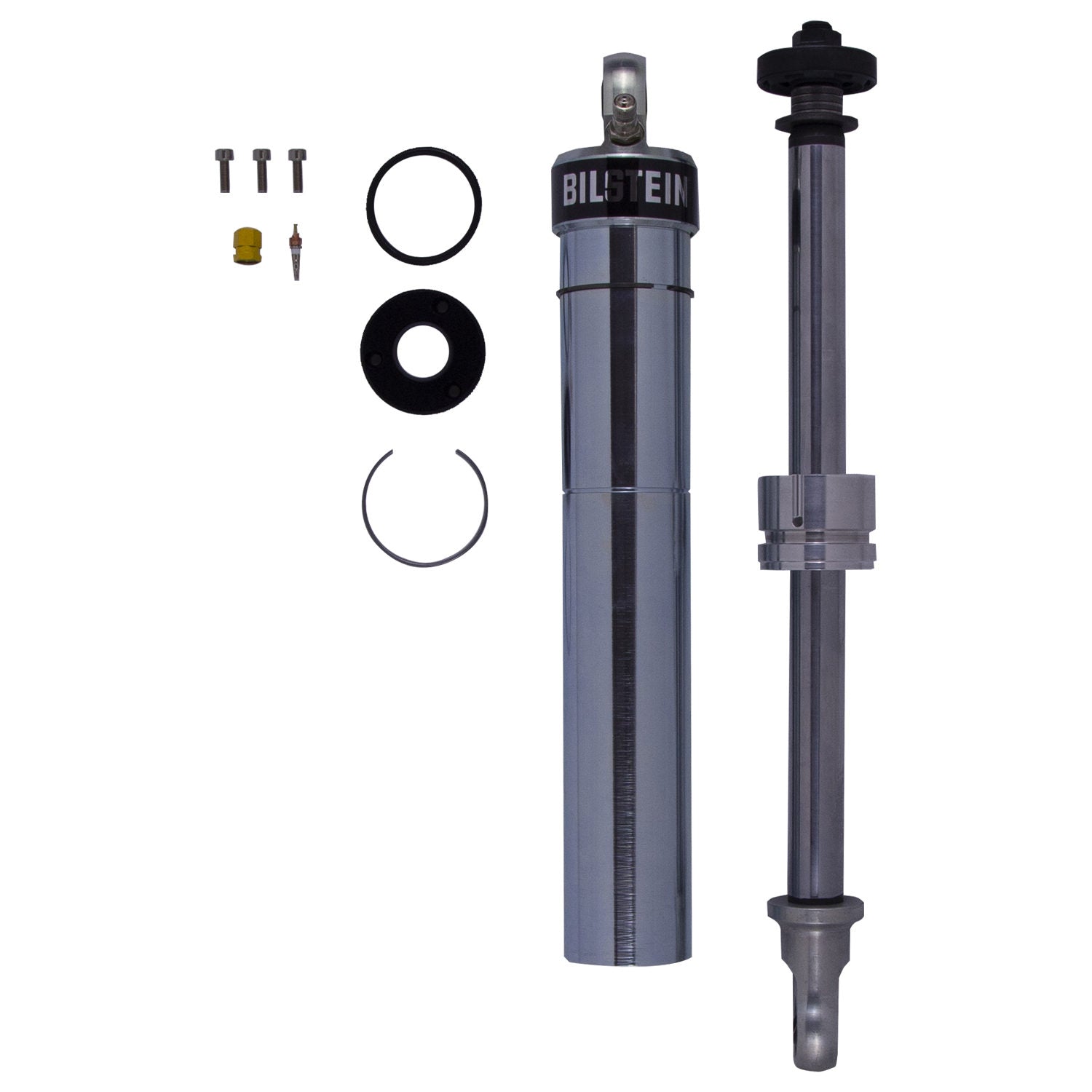

Bilstein 33-286884 - Shock Absorbers

EM46 Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications.  The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately).  EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.

  • Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
  • Smooth zinc plated OD body design allows for optional standard and coilover applications
  • 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching
Lower Mount Type: 1/2in Heim
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Extended Length (IN): 25.24
Body Design: Smooth Body Screw Top (Non-coilover)
Extended Length (MM): 641.0
Segment: Motorsports
Spring Hardware: B4-BOA-0000117
Internal Design: Monotube
Spring Max Travel (IN): 10.00
Piston Type: Digressive
Boot Included: No
Finish: Zinc Plated
Body Diameter (ID): 46mm
Collapsed Length (MM): 387.0
Series: EM46 Series
PartType: Shocks / Struts
Collapsed Length (IN): 15.24
Adjustable Damping: Non-Adjustable
Body Material: Steel
