Bilstein 33-286525 - 5100 Series 2014 Ford F-150 2WD Rear Shock Absorber 0-1in Lift

Bilstein  |  SKU: BIL-33-286525
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

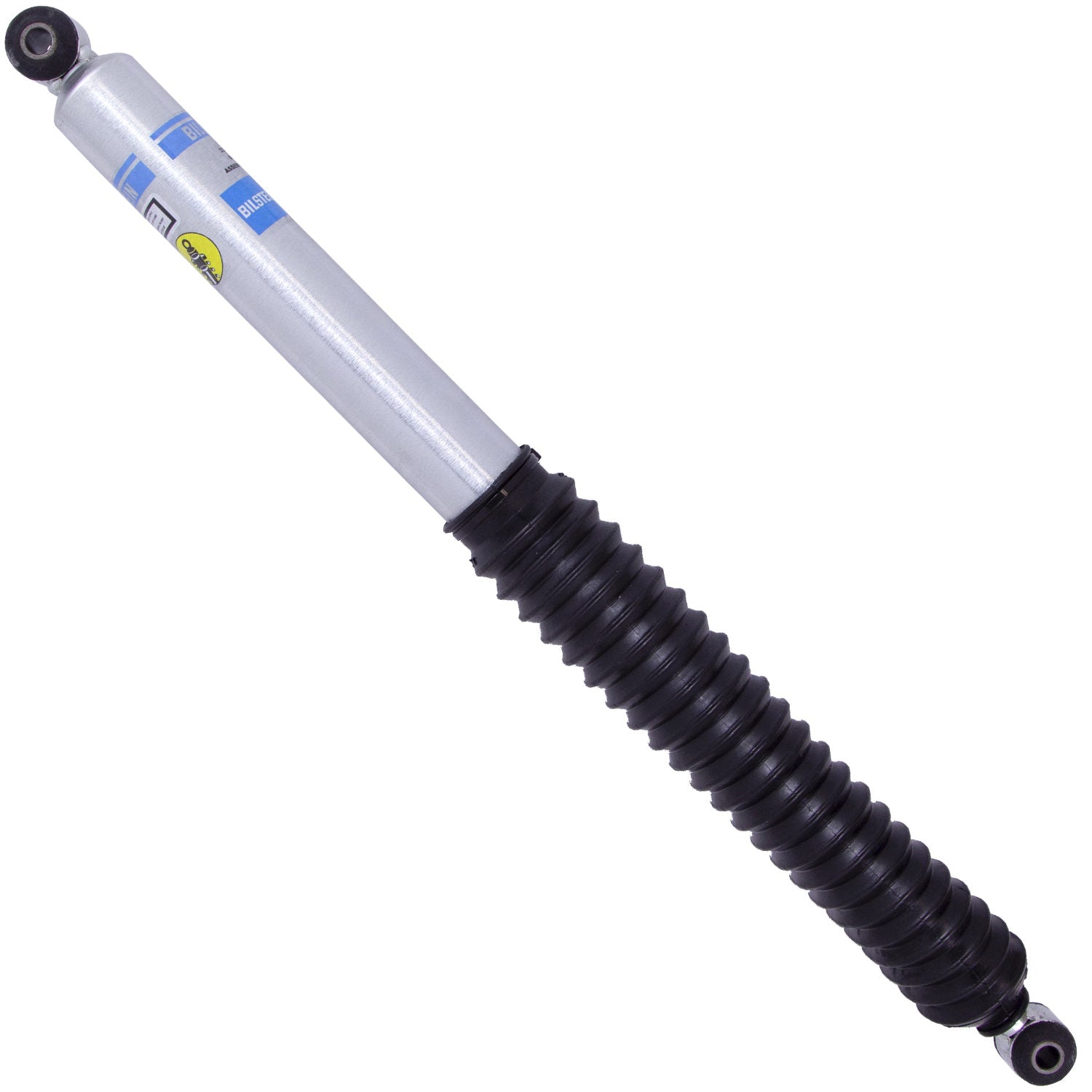

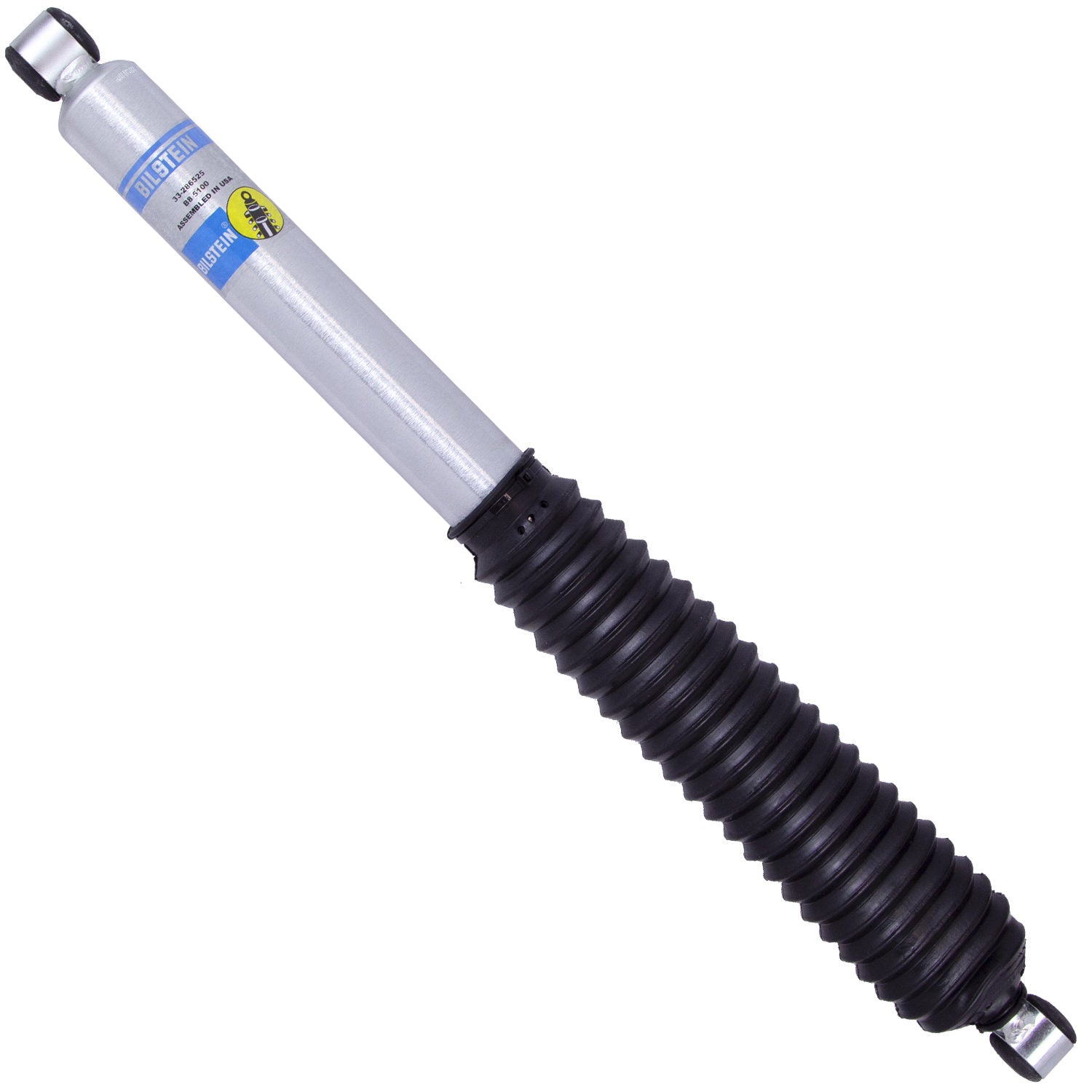

Bilstein 33-286525 - 5100 Series 2014 Ford F-150 2WD Rear Shock Absorber 0-1in Lift

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Collapsed Length (IN): 16.97
Extended Length (IN): 27.37
PartType: Shocks / Struts
Reservoir: No
Piston Diameter: 46mm
Finish: Zinc Plated
Adjustable Damping: Non-Adjustable
Lower Mount Type: Eye 12mm
Extended Length (MM): 695.2
Body Design: Smooth Body (Non-coilover)
Spring Seat Included: No
Series: B8 5100
Stroke/Travel Length (mm): 264.2
Boot Included: Black Bellows
Shaft Diameter: 14mm
Internal Design: Monotube
Collapsed Length (MM): 431.0
Stroke/Travel Length (IN): 10.40
Upper Mount Type: Eye 12mm
Segment: Light Truck
