Bilstein 33-269535 - M 9200 (Bypass) 3-Tube Zinc Plated Right Side Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-269535
Sale price $1,03700 Regular price $1,14070

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

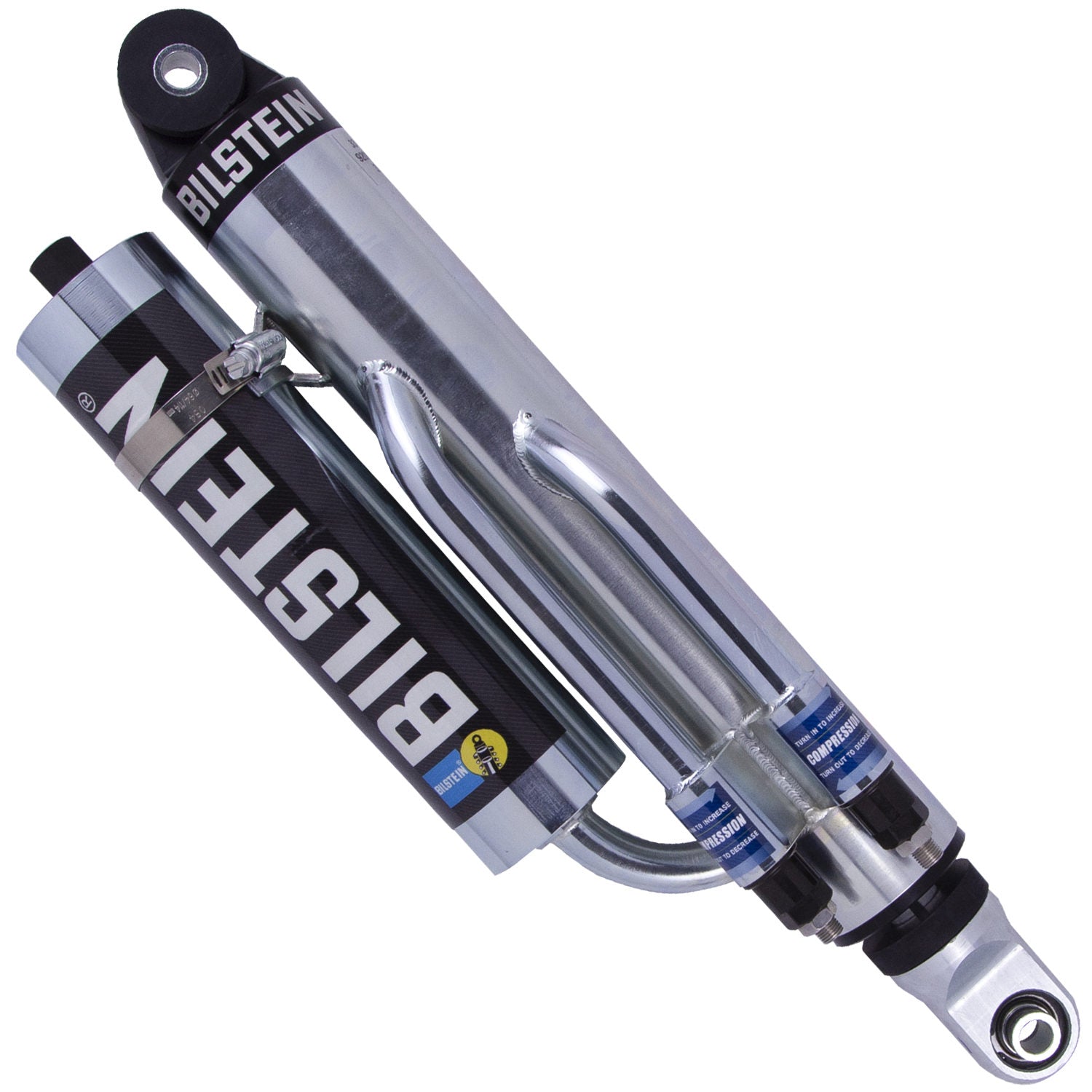

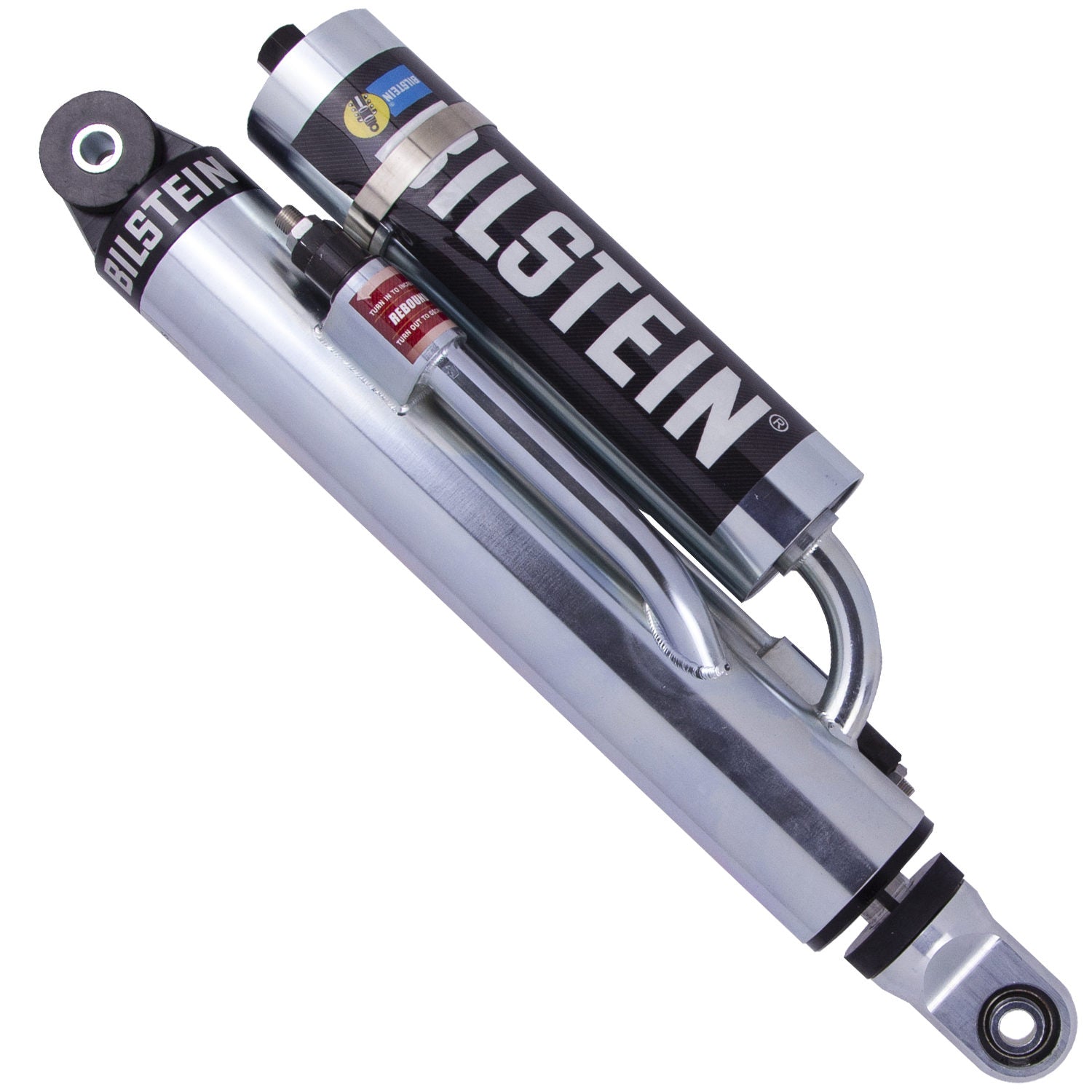

Bilstein 33-269535 - M 9200 (Bypass) 3-Tube Zinc Plated Right Side Monotube Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Lower Mount Type: Eye .5x1.5in
Upper Mount Type: Eye .5x1.5in
Body Design: 3-Tube Bypass Screw Top
Mount Type: Eye-to-Eye
Segment: Motorsports
Boot Included: N/A
Position: Right
Finish: Zinc Plated
Optional Reservoir Clamp: N/A
Collapsed Length (IN) Rounded: 18
Collapsed Length (MM): 444.5
PartType: Shocks / Struts
Spring Seat Included: No
Extended Length (IN): 25.50
Extended Length (IN) Rounded: 26
Extended Length (MM): 647.7
Rebound @0.52m/s: Custom
Internal Design: Monotube
Spring Max Travel (IN): 8.00
Reservoir: Yes
Collapsed Length (IN): 17.50
Body Diameter (ID): 60mm
Series: M 9200 (Bypass)
Compression @0.52m/s: Custom
