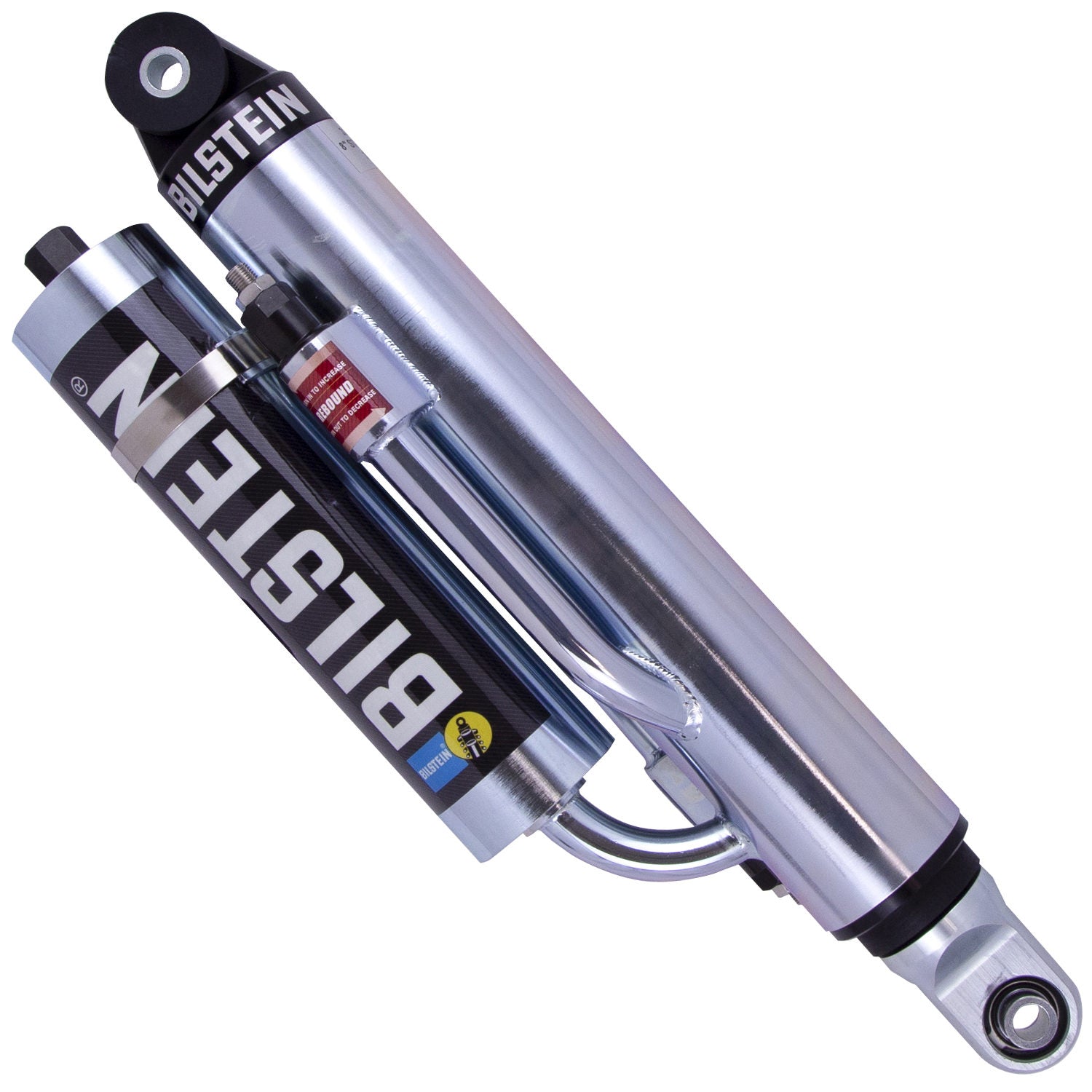

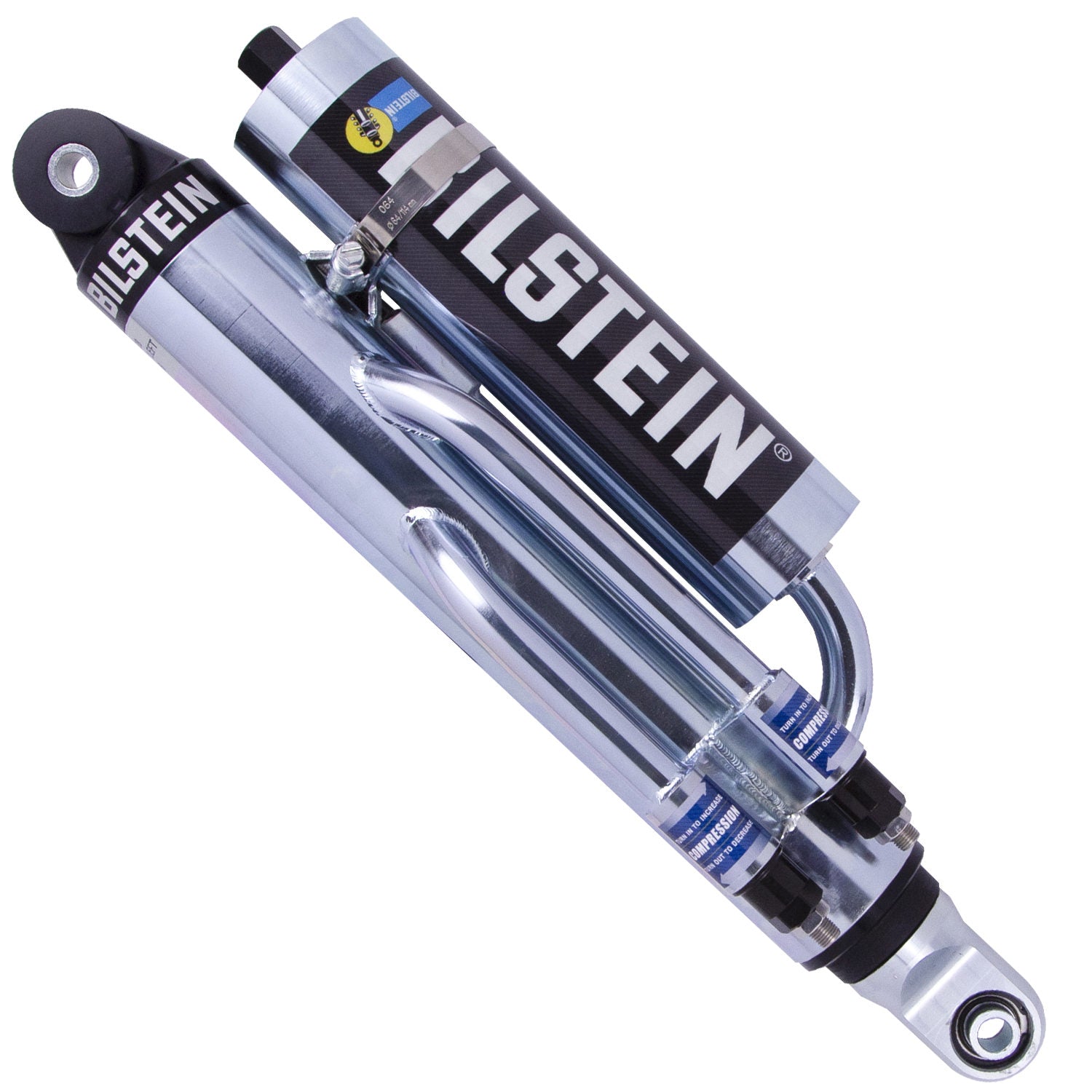

Bilstein 33-269528 - M 9200 (Bypass) 3-Tube Zinc Plated Left Side Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-269528
$1,03700 $1,14070
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 33-269528 - M 9200 (Bypass) 3-Tube Zinc Plated Left Side Monotube Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Optional Reservoir Clamp: N/A
Compression @0.52m/s: Custom
Series: M 9200 (Bypass)
Stroke/Travel Length (IN): 8.00
Lower Mount Type: Eye .5x1.5in
Stroke/Travel Length (mm): 203.2
Reservoir: Yes
Boot Included: N/A
Body Design: 3-Tube Bypass Screw Top
Collapsed Length (IN): 17.50
Position: Left
Internal Design: Monotube
Finish: Zinc Plated
Collapsed Length (MM): 444.5
Extended Length (IN): 25.50
Rebound @0.52m/s: Custom
PartType: Shocks / Struts
Upper Mount Type: Eye .5x1.5in
Extended Length (MM): 647.7
Mount Type: Eye-to-Eye
Piston Diameter: 60mm
Segment: Motorsports
Shaft Diameter (mm): 22.0
Spring Seat Included: No
