Bilstein 33-250748 - 70mm 4 Tube Bypass 10in Stroke Left M 9200 Shock Absorber

Bilstein  |  SKU: BIL-33-250748
Sale price $1,47600 Regular price $1,62360

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

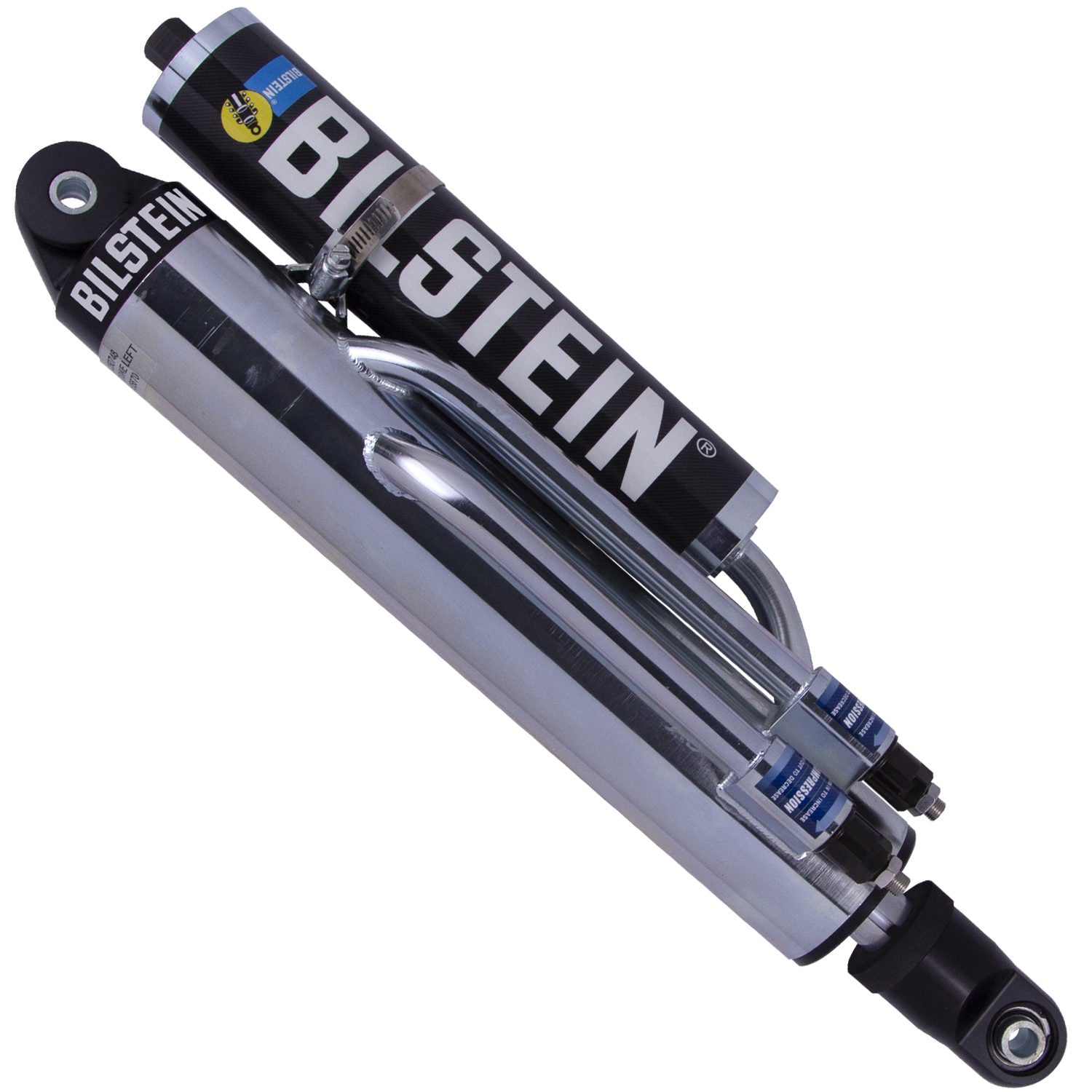

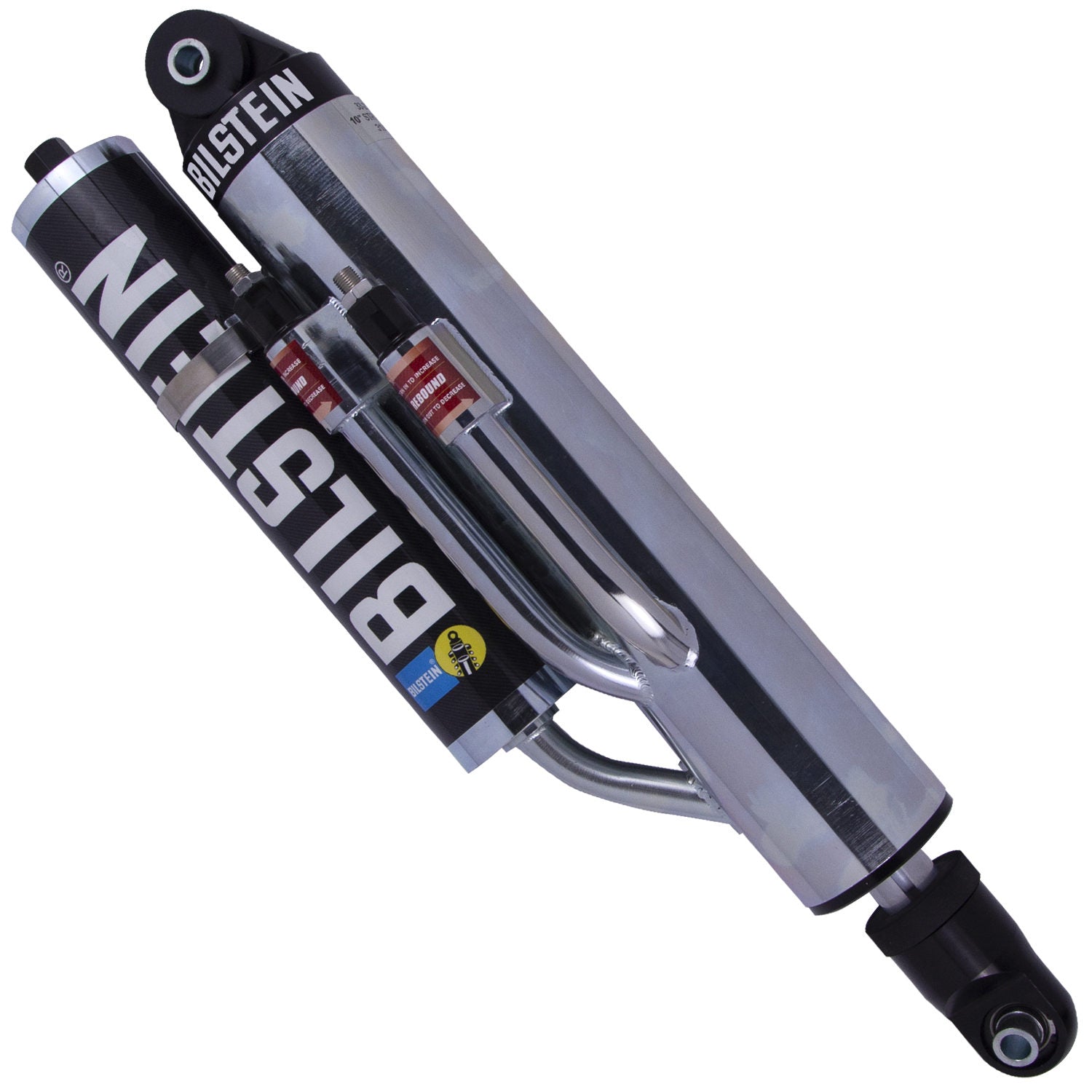

Bilstein 33-250748 - 70mm 4 Tube Bypass 10in Stroke Left M 9200 Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

70mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Internal Design: Monotube
Finish: Zinc Plated
Series: M 9200 (Bypass)
Collapsed Length (IN): 19.50
Spring Seat Included: No
Optional Reservoir Clamp: N/A
Extended Length (IN): 29.50
Rebound @0.52m/s: Custom
Stroke/Travel Length (IN): 10.00
PartType: Shocks / Struts
Lower Mount Type: Eye .5x1.5in
Upper Mount Type: Eye .5x1.5in
Stroke/Travel Length (mm): 254.0
Extended Length (MM): 749.3
Reservoir: Yes
Boot Included: N/A
Body Design: 4-Tube Bypass Screw Top
Mount Type: Eye-to-Eye
Compression @0.52m/s: Custom
Piston Diameter: 70mm
Collapsed Length (MM): 495.3
Shaft Diameter: 1-1/8 in.
Shaft Diameter (mm): 28.6
Segment: Motorsports
Position: Left
