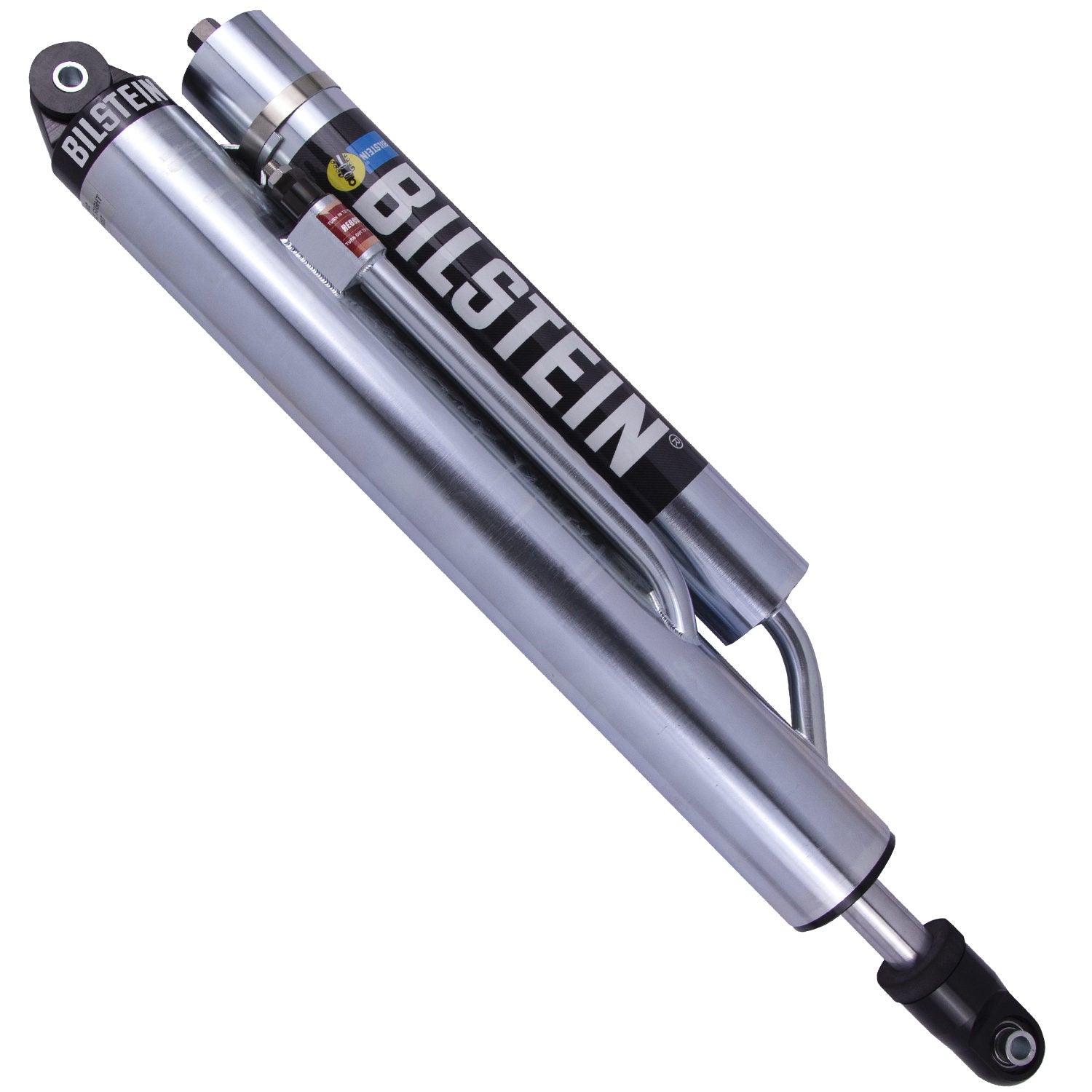

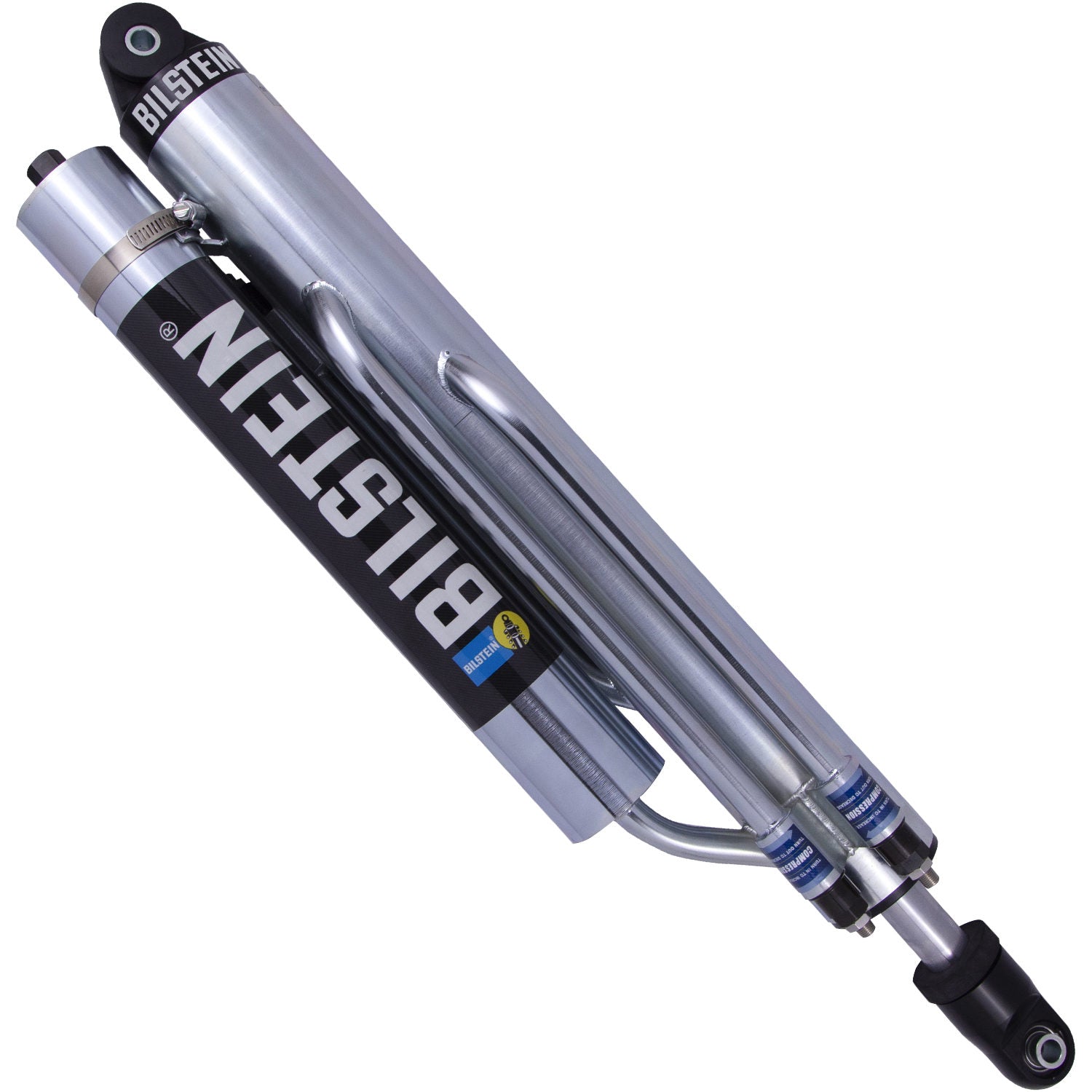

Bilstein 33-250687 - 70mm 3 Tube Bypass 16in Stroke Right M 9200 Shock Absorber

Bilstein  |  SKU: BIL-33-250687
Sale price $1,34800 Regular price $1,48280

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 33-250687 - 70mm 3 Tube Bypass 16in Stroke Right M 9200 Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

70mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Internal Design: Monotube
Spring Seat Included: No
Optional Reservoir Clamp: N/A
Series: M 9200 (Bypass)
Stroke/Travel Length (IN): 16.00
Lower Mount Type: Eye .5x1.5in
Stroke/Travel Length (mm): 406.4
Reservoir: Yes
Boot Included: N/A
Collapsed Length (MM): 673.1
Segment: Motorsports
Position: Right
Finish: Zinc Plated
Compression @0.52m/s: Custom
Extended Length (IN): 42.50
Rebound @0.52m/s: Custom
PartType: Shocks / Struts
Upper Mount Type: Eye .5x1.5in
Extended Length (MM): 1079.5
Body Design: 3-Tube Bypass Screw Top
Mount Type: Eye-to-Eye
Piston Diameter: 70mm
Collapsed Length (IN): 26.50
Shaft Diameter: 1-1/8 in.
Shaft Diameter (mm): 28.6
