Bilstein 33-250670 - 70mm 3 Tube Bypass 16in Stroke Left M 9200 Shock Absorber

Bilstein  |  SKU: BIL-33-250670
Sale price $1,34800 Regular price $1,48280

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

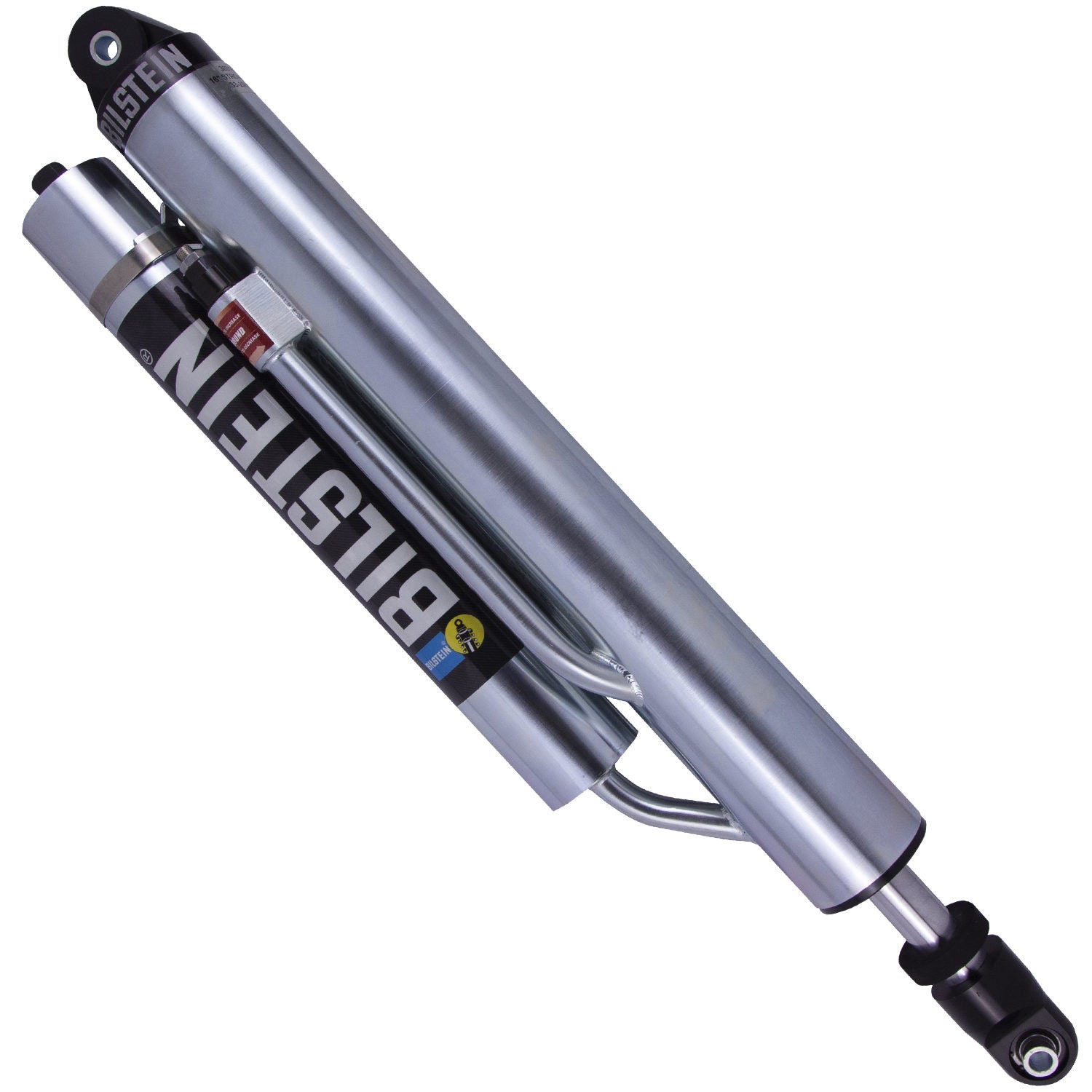

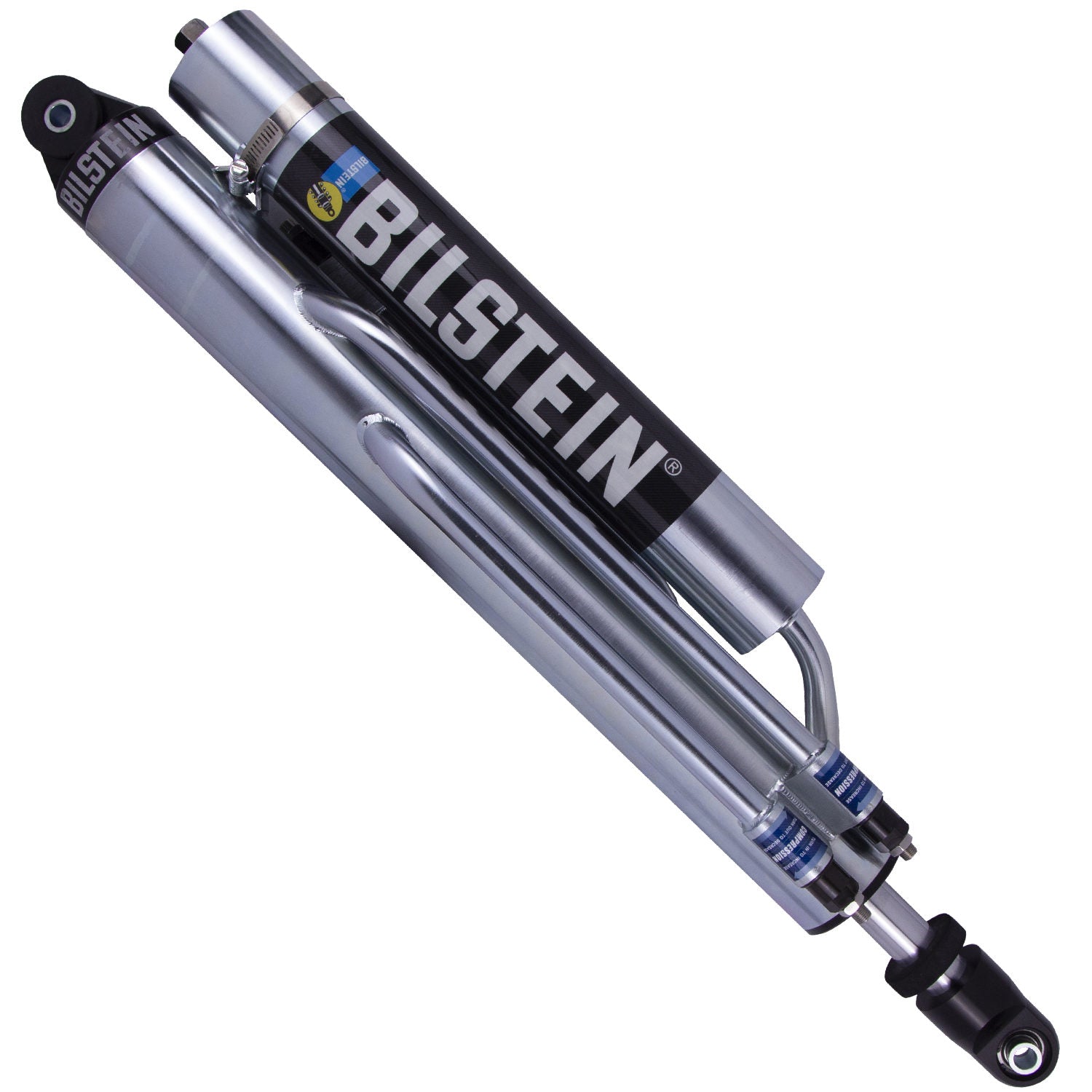

Bilstein 33-250670 - 70mm 3 Tube Bypass 16in Stroke Left M 9200 Shock Absorber

M 9200 (Bypass) - Suspension Shock Absorber

70mm Monotube Shock Absorber

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Lower Mount Type: Eye .5x1.5in
Spring Seat Included: No
Upper Mount Type: Eye .5x1.5in
Extended Length (IN): 42.50
Body Design: 3-Tube Bypass Screw Top
Extended Length (IN) Rounded: 43
Extended Length (MM): 1079.5
Mount Type: Eye-to-Eye
Rebound @0.52m/s: Custom
Segment: Motorsports
Boot Included: N/A
Internal Design: Monotube
Spring Max Travel (IN): 16.00
Reservoir: Yes
Position: Left
Finish: Zinc Plated
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 26.50
Collapsed Length (IN) Rounded: 27
Body Diameter (ID): 70mm
Collapsed Length (MM): 673.1
Series: M 9200 (Bypass)
Compression @0.52m/s: Custom
PartType: Shocks / Struts
