Bilstein 33-244501 - M 9200 (Coilover) 60mm Shock Absorber

Bilstein  |  SKU: BIL-33-244501
$80200 $88220

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

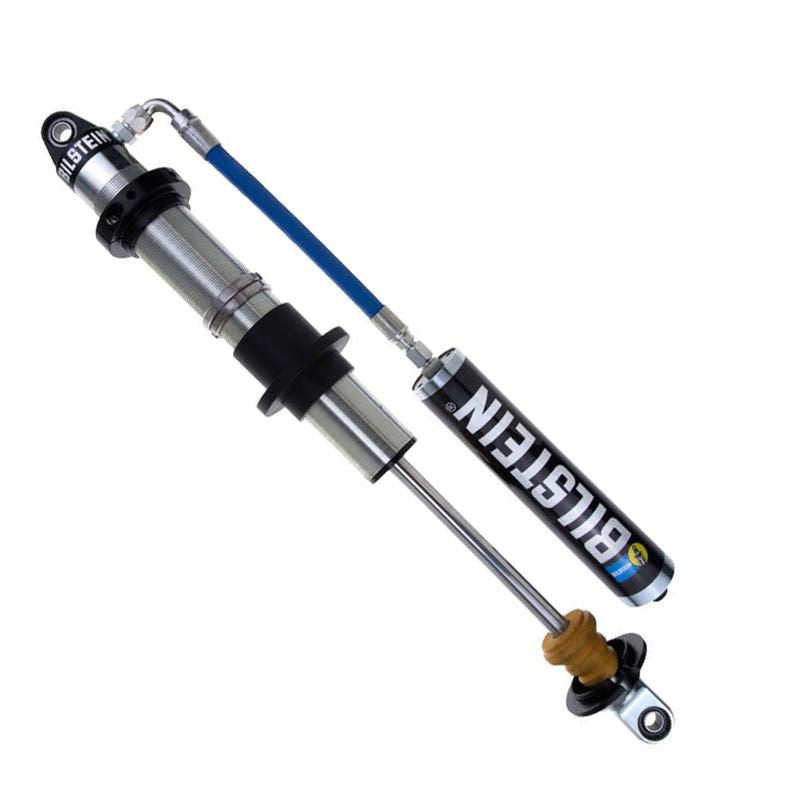

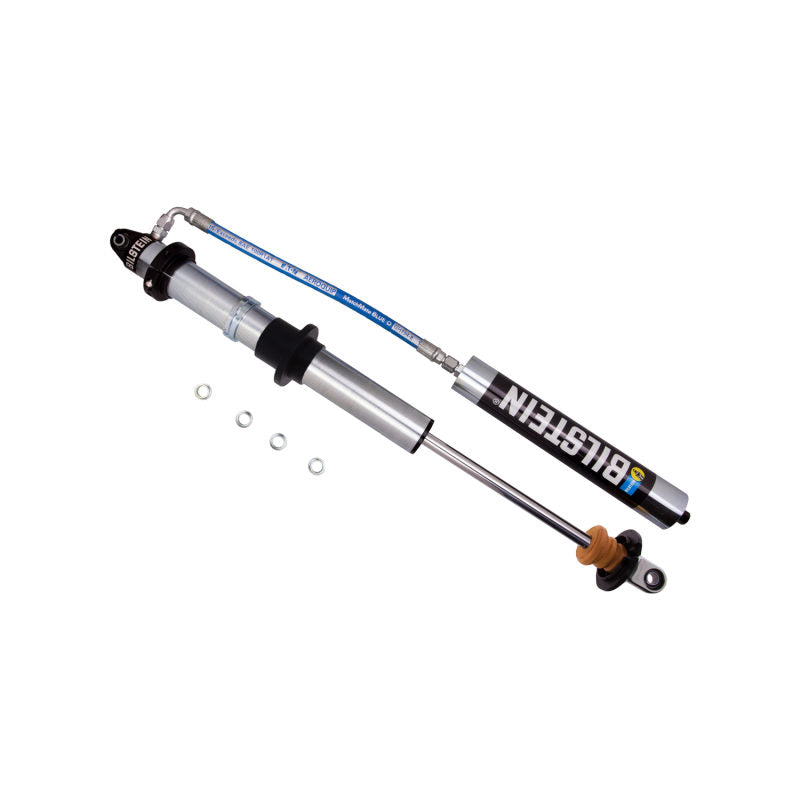

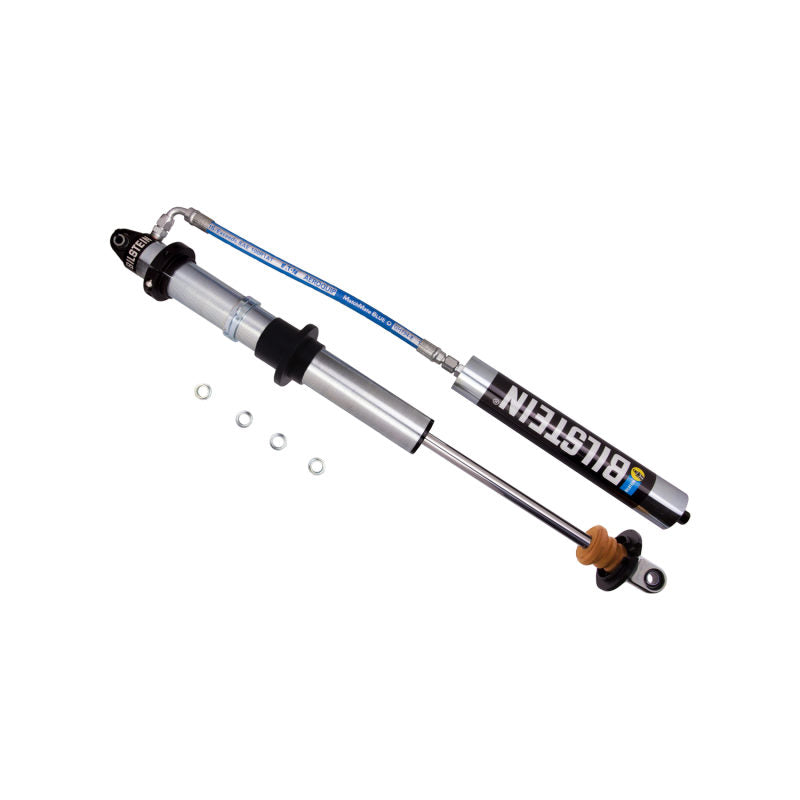

Bilstein 33-244501 - M 9200 (Coilover) 60mm Shock Absorber

M 9200 (Coilover) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8" to 16"
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Spring Seat Included: No
Collapsed Length (IN): 26.50
Internal Design: Monotube
Body Design: Threaded Body (Coilover)
Extended Length (MM): 1079.5
Upper Mount Type: Eye .5x1.5in
PartType: Shocks / Struts
Series: M 9200 (Coilover)
Stroke/Travel Length (IN): 16.00
Stroke/Travel Length (mm): 406.4
Collapsed Length (MM): 673.1
Rebound @0.52m/s: 2550
Reservoir: Yes
Boot Included: N/A
Compression @0.52m/s: 1000
Finish: Zinc Plated
Piston Diameter: 60mm
Lower Mount Type: Eye .5x1.5in
Shaft Diameter (mm): 22.0
Segment: Motorsports
Extended Length (IN): 42.50
