Bilstein 33-244464 - 60MM 8in 255/100 M 9200 Series Coilover

Bilstein  |  SKU: BIL-33-244464
$75900 $83490

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

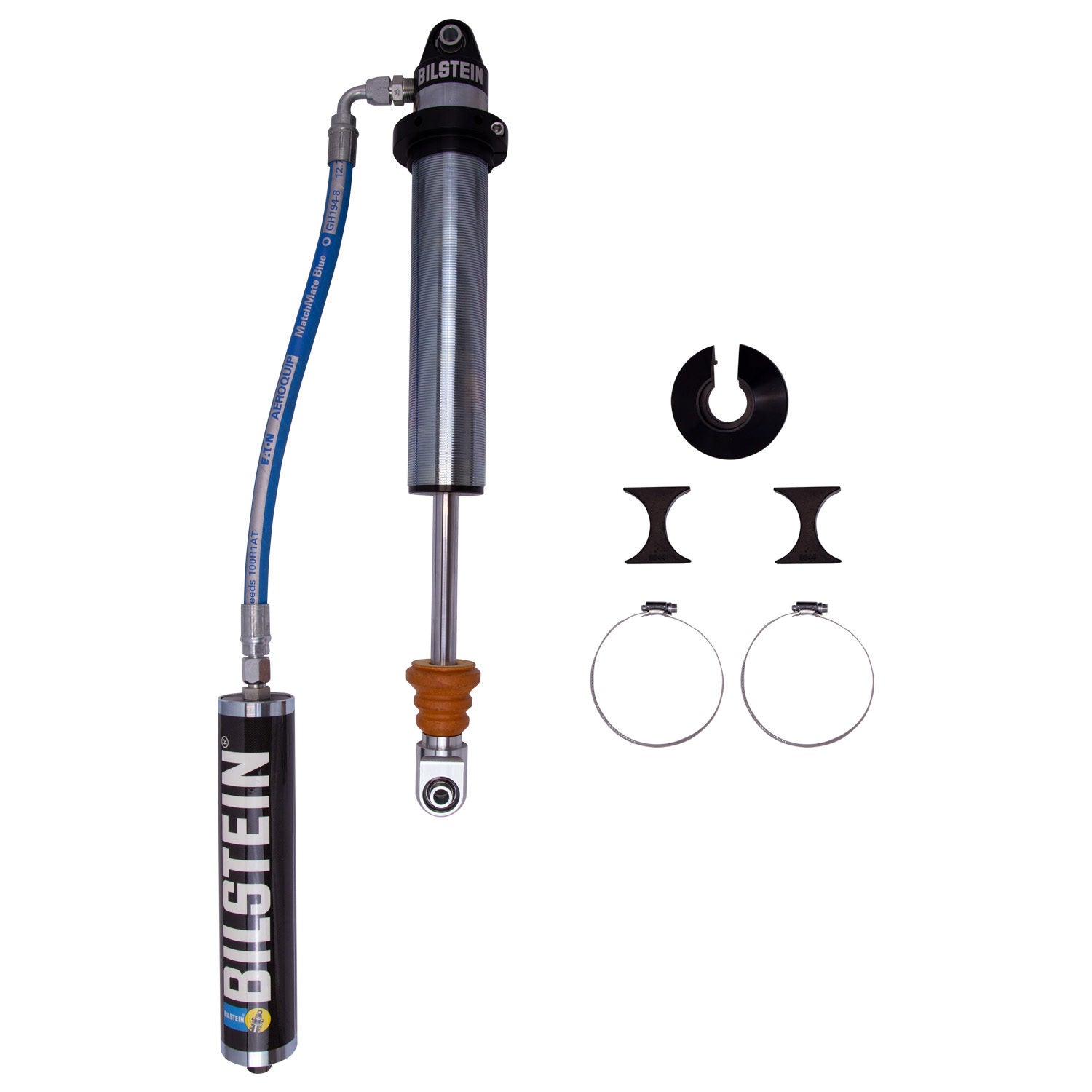

Bilstein 33-244464 - 60MM 8in 255/100 M 9200 Series Coilover

M 9200 (Coilover) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8" to 16"
Upper Mount Type: Eye .5x1.5in
Extended Length (IN) Rounded: 26
Extended Length (MM): 647.7
Rebound @0.52m/s: 2550
Boot Included: N/A
Reservoir: Yes
Finish: Zinc Plated
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 17.50
Collapsed Length (IN) Rounded: 18
Collapsed Length (MM): 444.5
Compression @0.52m/s: 1000
PartType: Shocks / Struts
Spring Seat Included: No
Extended Length (IN): 25.50
Mount Type: Eye-to-Eye
Segment: Motorsports
Internal Design: Monotube
Spring Max Travel (IN): 8.00
Body Design: Threaded Body (Coilover)
Body Diameter (ID): 60mm
Series: M 9200 (Coilover)
Lower Mount Type: Eye .5x1.5in
