Bilstein 33-243566 - 46mm Coil-Carrier 16in M 9200 Series Shock Absorber

Bilstein  |  SKU: BIL-33-243566
$52400 $57640

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

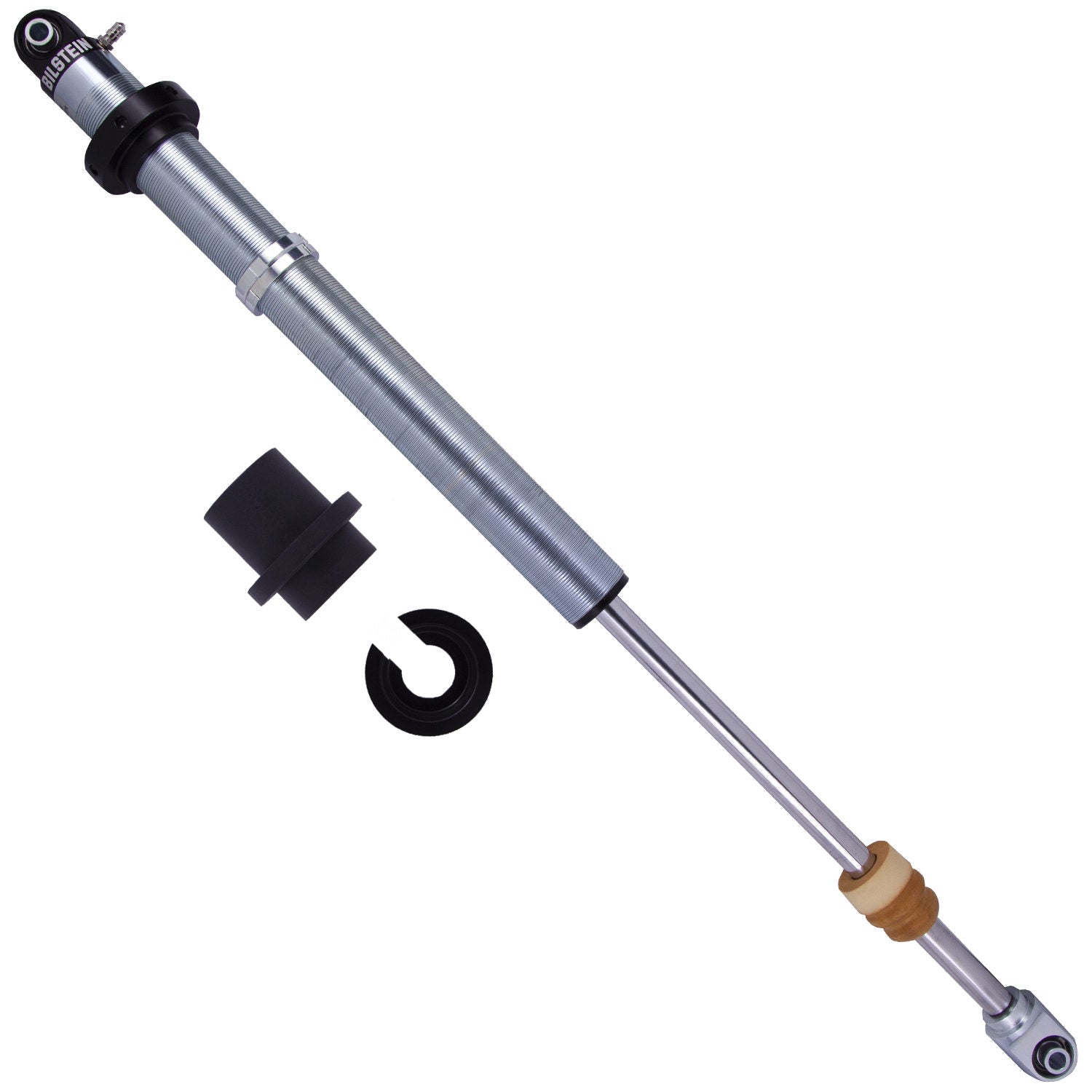

Bilstein 33-243566 - 46mm Coil-Carrier 16in M 9200 Series Shock Absorber

M 9200 (Coil Carrier) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • 46mm monotube design
  • Designed to hold the coils in place
  • To be used in conjunction with Bypass shocks
Spring Max Travel (IN): 16.00
Finish: Zinc Plated
Body Design: Threaded Body (Coilover)
Collapsed Length (IN): 23.50
Collapsed Length (IN) Rounded: 24
Collapsed Length (MM): 596.9
Compression @0.52m/s: Coil Carrier No Valving
PartType: Shocks / Struts
Optional Reservoir Clamp: N/A
Body Diameter (ID): 46mm
Series: M 9200 (Coil Carrier)
Lower Mount Type: Eye .5x1.5in
Spring Seat Included: No
Upper Mount Type: Eye .5x1.5in
Extended Length (IN): 39.50
Extended Length (IN) Rounded: 40
Extended Length (MM): 1003.3
Mount Type: Eye-to-Eye
Rebound @0.52m/s: Coil Carrier No Valving
Segment: Motorsports
Boot Included: N/A
Internal Design: Monotube
Reservoir: Yes
