Bilstein 33-230306 - 5125 Series Lifted Truck 116.5mm Shock Absorber

Bilstein  |  SKU: BIL-33-230306
Sale price $12000 Regular price $16782

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

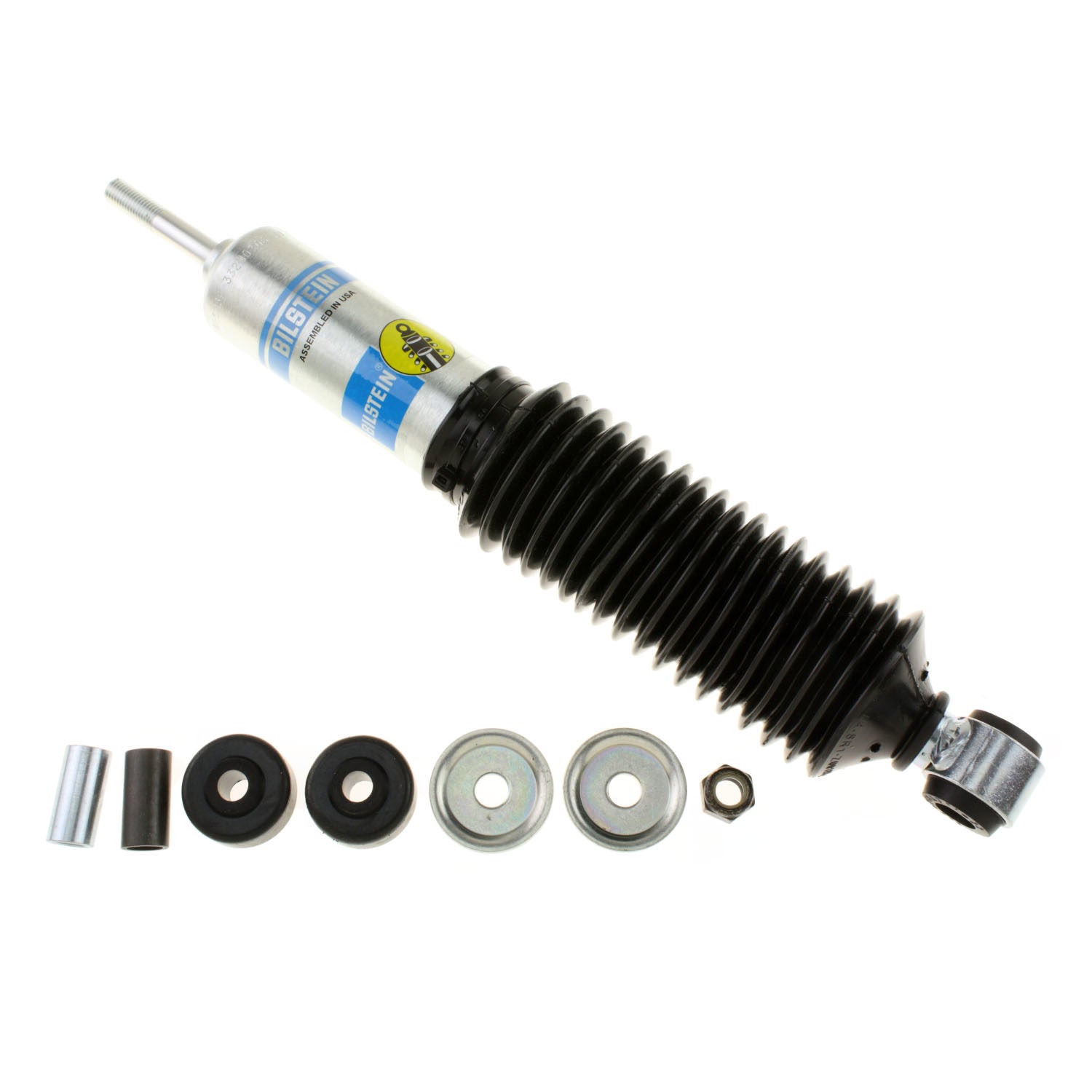

Bilstein 33-230306 - 5125 Series Lifted Truck 116.5mm Shock Absorber

Shock - B8 5125 Series - Monotube - Steel - Zinc Plated - Universal - Each

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Extended Length (IN): 13.91
Stroke/Travel Length (IN): 4.50
Extended Length (MM): 353.3
Shaft Diameter: 14mm
Finish: Zinc Plated
Series: B8 5125
PartType: Shocks / Struts
Upper Mount Type: Stem
Reservoir: No
Mount Type: Stem-to-Eye
Segment: Light Truck
Body Design: Smooth Body (Non-Coilover)
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 239.1
Internal Design: Monotube
Compression @0.52m/s: 755
Rebound @0.52m/s: 3775
Lower Mount Type: Eye 5/8in
Stroke/Travel Length (mm): 114.3
Boot Included: Black Bellows
Piston Diameter: 46mm
Collapsed Length (IN): 9.41
