Bilstein 33-225654 - 8125 Series 42.5in Extended Length 26.5in Collapsed Length 60mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-225654
Sale price $62600 Regular price $68860

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

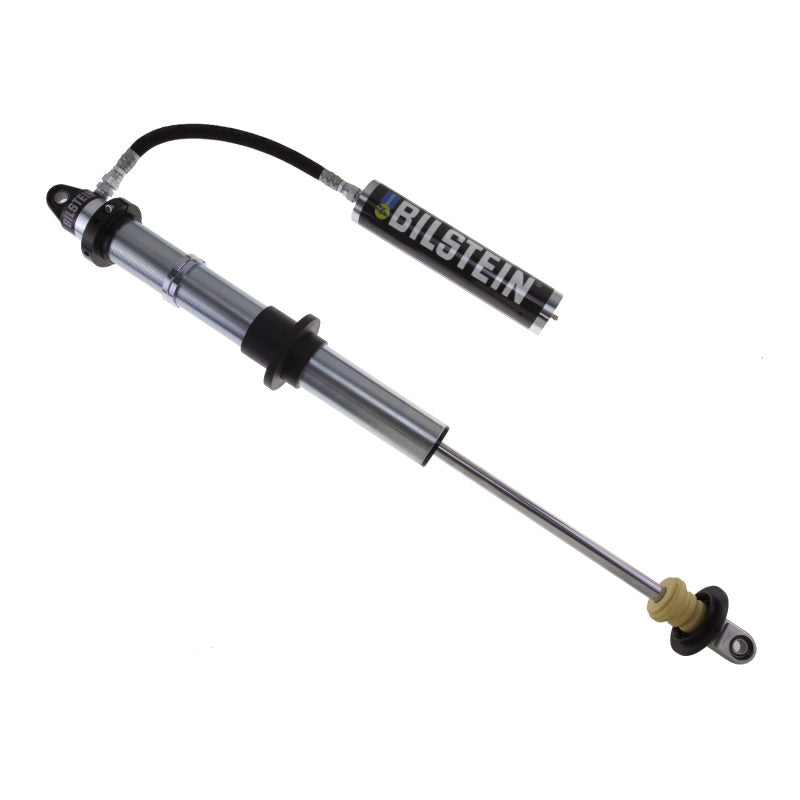

Bilstein 33-225654 - 8125 Series 42.5in Extended Length 26.5in Collapsed Length 60mm Monotube Shock Absorber

B8 8125 - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

  • Available in 46mm and 60mm monotubes for consistent, fade-free performance
  • Threaded body with dual-rate coilover hardware
  • Remote reservoir for greater resistance to heat and increased travel length
Internal Design: Monotube
Compression @0.52m/s: 1100
Stroke/Travel Length (IN): 16.00
Extended Length (MM): 1079.5
Mount Type: Eye-to-Eye
Collapsed Length (IN): 26.50
Optional Reservoir Clamp: B4-KT1-Z292A00
Rebound @0.52m/s: 3700
Lower Mount Type: Eye .5x1.5in
Stroke/Travel Length (mm): 406.4
Segment: Motorsports
Body Design: Threaded Body Screw Top (Coilover)
Finish: Zinc Plated
Series: B8 8125
Collapsed Length (MM): 673.1
Piston Diameter: 60mm
Spring Seat Included: Yes
Extended Length (IN): 42.50
PartType: Shocks / Struts
Upper Mount Type: Eye .5x1.5in
Reservoir: Yes
Shaft Diameter (mm): 22.0
