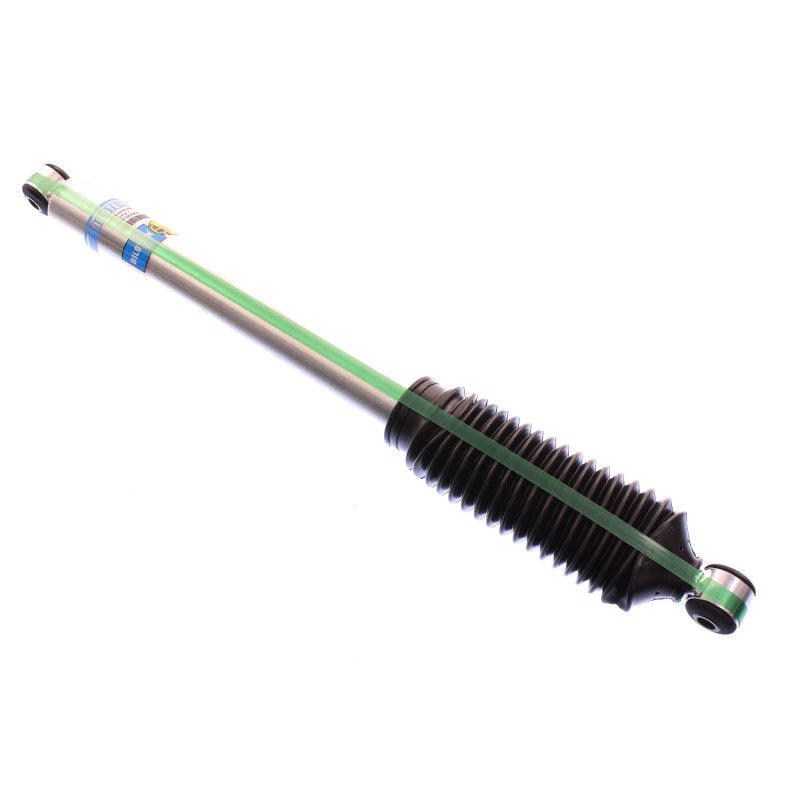

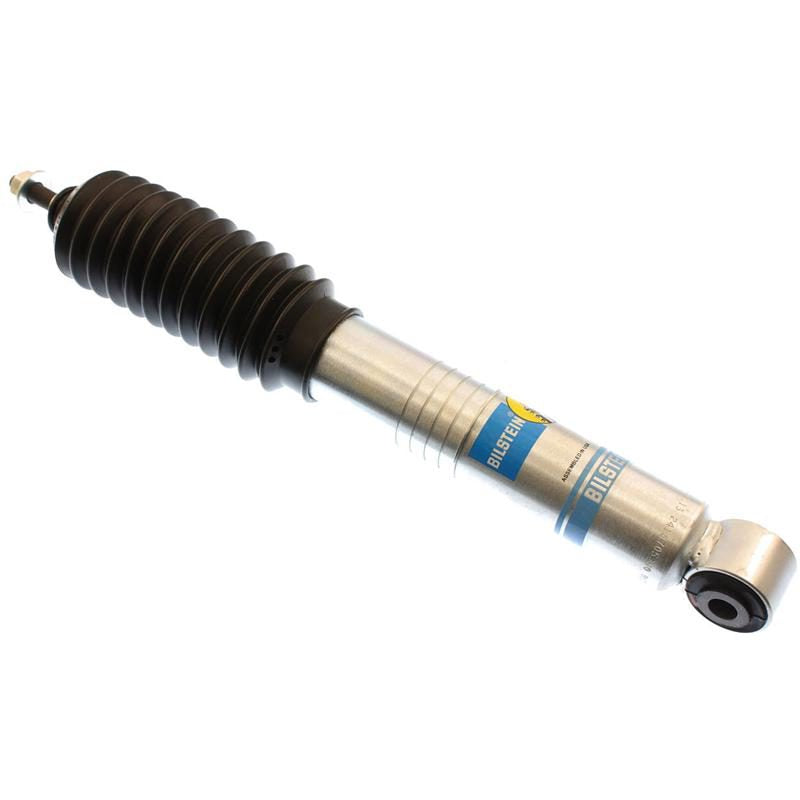

Bilstein 33-187501 - 5100 Series 2009 Ford F-150 FX4 Rear 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-187501
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 33-187501 - 5100 Series 2009 Ford F-150 FX4 Rear 46mm Monotube Shock Absorber

Shock - B8 5100 Series - Monotube - Steel - Zinc Plated - Rear - Ford Fullsize Truck 2009-13 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Collapsed Length (IN): 17.68
Adjustable Damping: Non-Adjustable
Lower Mount Type: Eye 12mm
Extended Length (MM): 734.0
Piston Diameter: 46mm
Internal Design: Monotube
Extended Length (IN): 28.90
Stroke/Travel Length (IN): 11.22
Stroke/Travel Length (mm): 285.0
Boot Included: Black Bellows
Spring Seat Included: No
PartType: Shocks / Struts
Collapsed Length (MM): 449.0
Segment: Light Truck
Finish: Zinc Plated
Series: B8 5100
Upper Mount Type: Eye 12mm
Reservoir: No
Shaft Diameter: 14mm
Body Design: Smooth Body (Non-Coilover)
