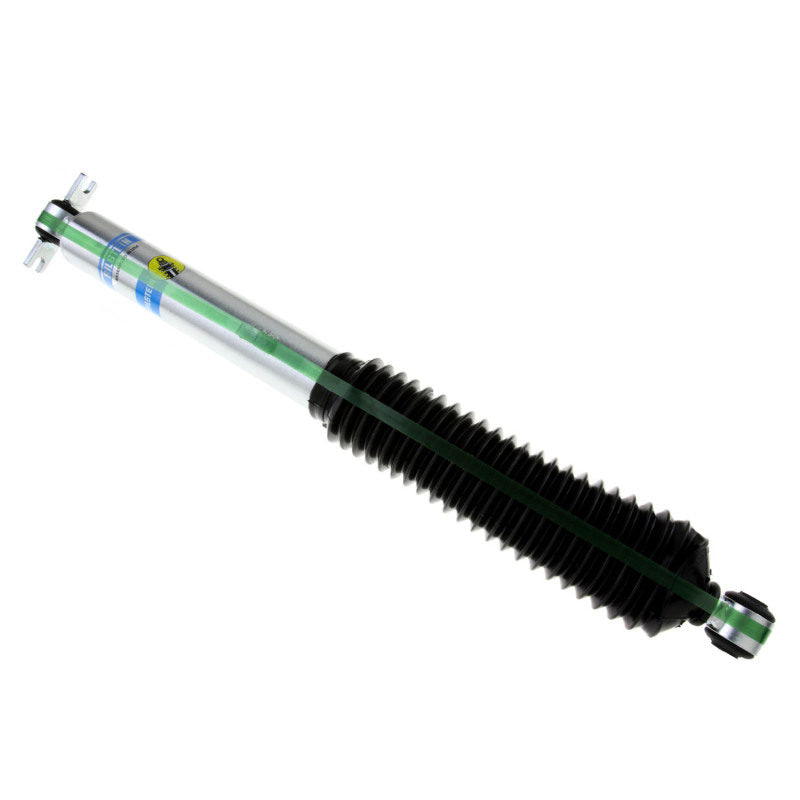

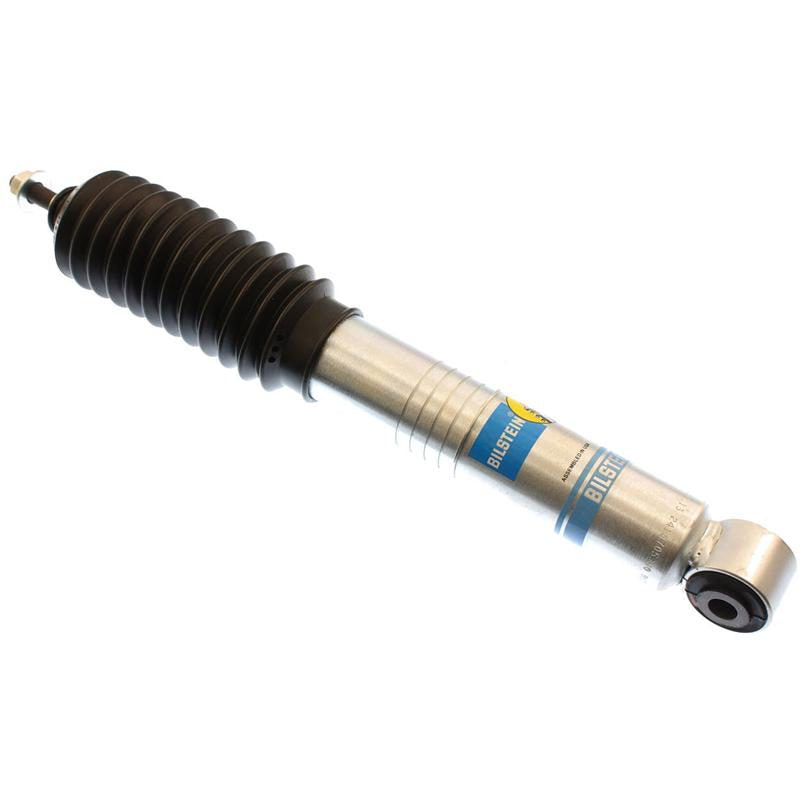

Bilstein 33-186887 - 5100 Series 2009 Jeep Wrangler X-S Rear 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-186887
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 33-186887 - 5100 Series 2009 Jeep Wrangler X-S Rear 46mm Monotube Shock Absorber

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Rear - 4 in Lifted - Jeep Wrangler JK 2007-13 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Internal Design: Monotube
Collapsed Length (IN): 16.96
Spring Seat Included: No
Finish: Zinc Plated
Extended Length (IN): 27.36
Series: B8 5100
Adjustable Damping: Non-Adjustable
PartType: Shocks / Struts
Stroke/Travel Length (IN): 10.40
Lower Mount Type: Eye 12.1mm
Upper Mount Type: Bar Pin
Collapsed Length (MM): 430.8
Stroke/Travel Length (mm): 264.2
Extended Length (MM): 695.0
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Piston Diameter: 46mm
Segment: Light Truck
Shaft Diameter: 14mm
