Bilstein 33-185590 - 5100 Series 1987 Chevrolet Blazer Custom Deluxe Front 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-33-185590
Sale price $12000 Regular price $16782

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

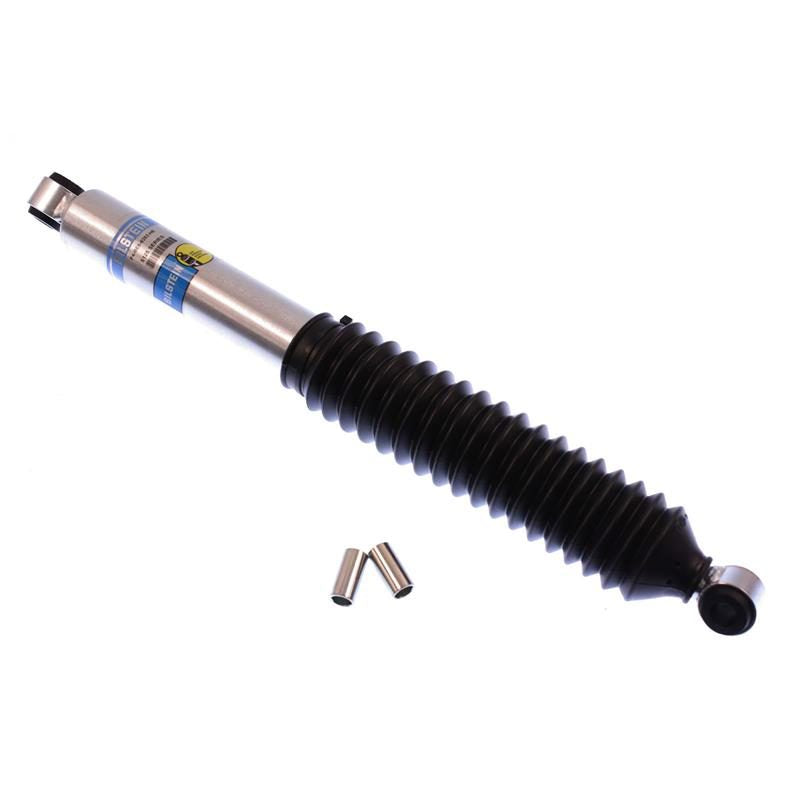

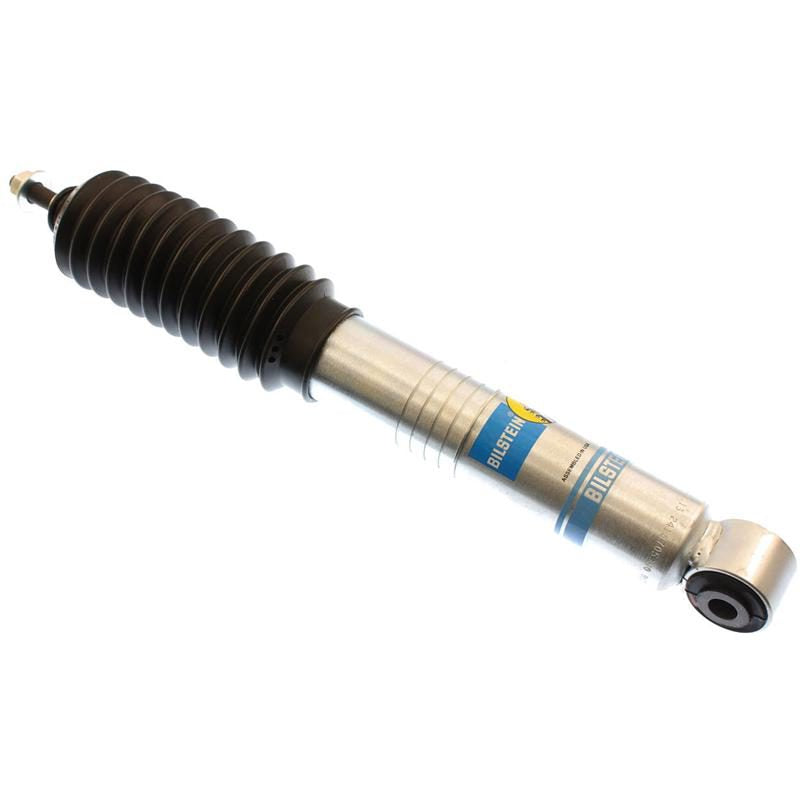

Bilstein 33-185590 - 5100 Series 1987 Chevrolet Blazer Custom Deluxe Front 46mm Monotube Shock Absorber

B8 5125 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Collapsed Length (IN): 13.66
Extended Length (IN): 21.62
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 347.0
Mount Type: Eye-to-Eye
Segment: Light Truck
Internal Design: Monotube
Compression @0.52m/s: 620
Rebound @0.52m/s: 2495
Lower Mount Type: Eye 5/8in
Stroke/Travel Length (mm): 202.2
Body Design: Smooth Body (Non-Coilover)
Spring Seat Included: No
Stroke/Travel Length (IN): 7.96
Extended Length (MM): 549.2
Boot Included: Black Bellows
Piston Diameter: 46mm
Finish: Zinc Plated
Series: B8 5125
PartType: Shocks / Struts
Upper Mount Type: Eye 5/8in
Reservoir: No
Shaft Diameter: 14mm
