Bilstein 25-325096 - 10-22 Lexus GX460 / 02-22 Toyota 4Runner B8 5160 Series Rear Right 46mm Shock Absorber

Bilstein  |  SKU: BIL-25-325096
Sale price $31000 Regular price $34100

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

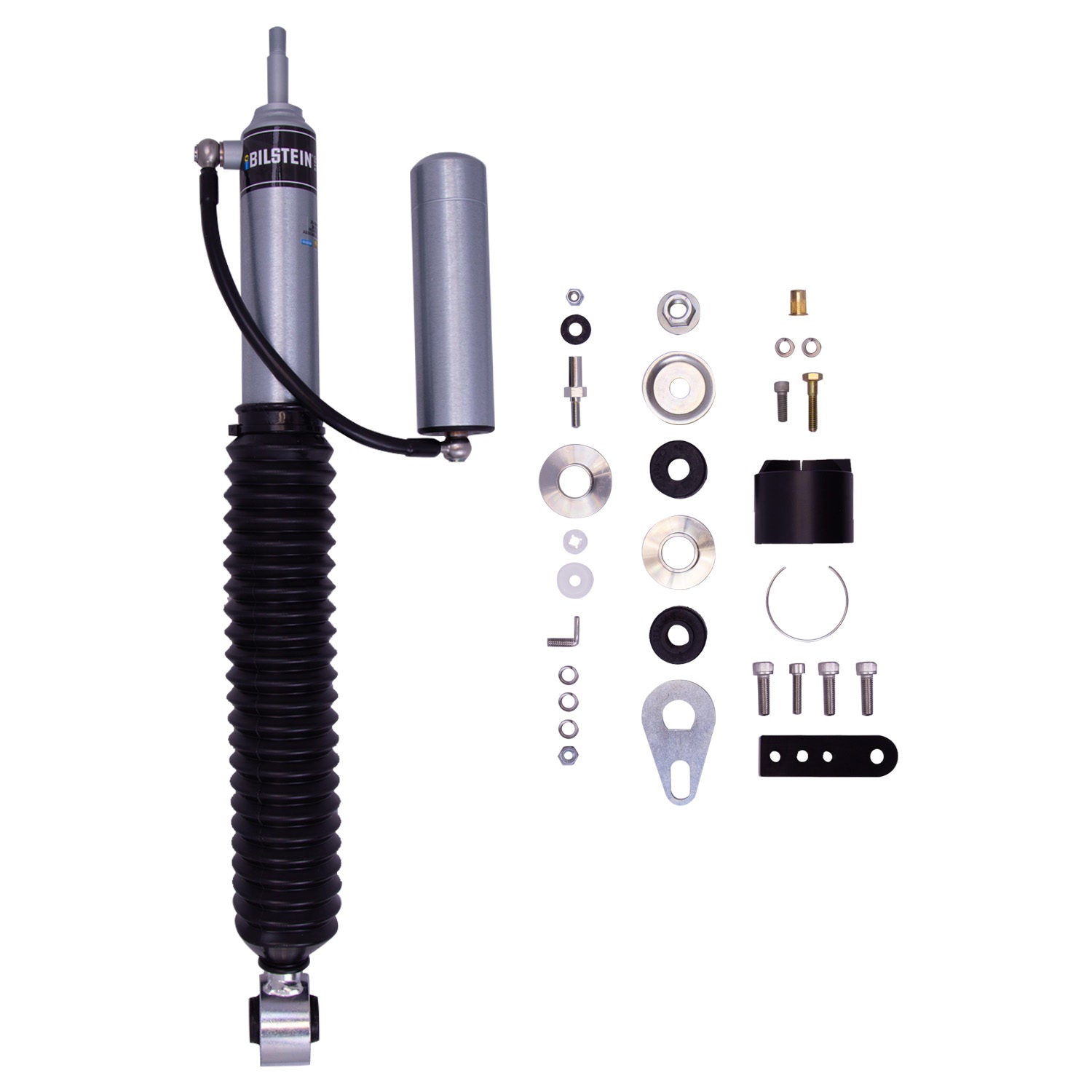

Bilstein 25-325096 - 10-22 Lexus GX460 / 02-22 Toyota 4Runner B8 5160 Series Rear Right 46mm Shock Absorber

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Finish: Zinc Plated
Extended Length (IN): 23.50
Series: B8 5160
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Upper Mount Type: Stem
Stroke/Travel Length (mm): 228.6
Piston Diameter: 46mm
Body Design: Smooth Body (Non-Coilover)
Stroke/Travel Length (IN): 9.00
Lower Mount Type: Eye 19.25mm
Extended Length (MM): 597.0
Reservoir: Yes
Boot Included: Black Bellows
Shaft Diameter: 14mm
Spring Seat Included: No
Collapsed Length (IN): 14.50
Collapsed Length (MM): 368.3
Internal Design: Monotube
Segment: Light Truck
Billet Reservoir Clamp Included: Yes
