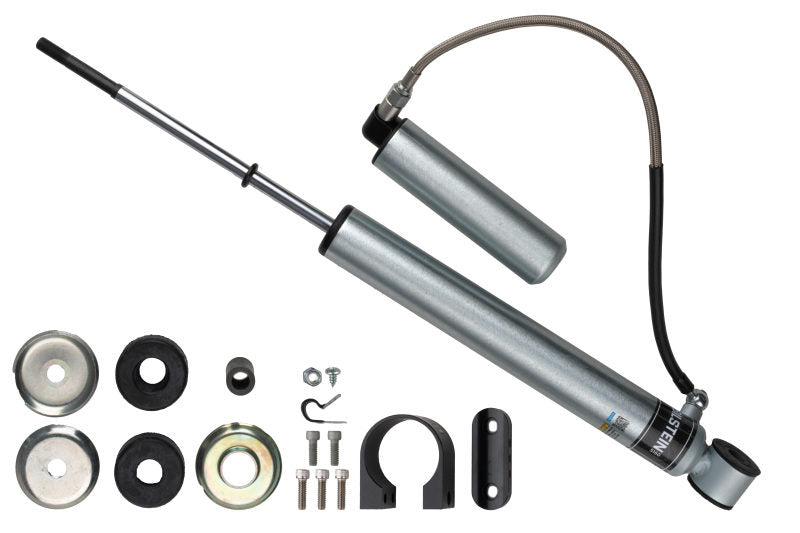

Bilstein 25-312164 - 03-11 Mercedes-Benz G55 AMG (w/ 0-2in Front Lift) B8 5160 Shock Absorber - Front Right

Bilstein  |  SKU: BIL-25-312164
Sale price $29900 Regular price $32890

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 25-312164 - 03-11 Mercedes-Benz G55 AMG (w/ 0-2in Front Lift) B8 5160 Shock Absorber - Front Right

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Piston Diameter: 46mm
Shaft Diameter: 14mm
Lower Mount Type: Stem
Extended Length (IN): 24.57
Segment: Light Truck
Collapsed Length (IN): 16.00
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Billet Reservoir Clamp Included: Yes
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
PartType: Shocks / Struts
Extended Length (MM): 624.0
Upper Mount Type: Eye 16mm
Series: B8 5160
Stroke/Travel Length (IN): 8.57
Stroke/Travel Length (mm): 217.7
Collapsed Length (MM): 406.5
Reservoir: Yes
Boot Included: No
Finish: Zinc Plated
