Bilstein 25-311792 - 05-22 Ford F-250/F-350 Super Duty B8 5160 Front Shock Absorber for 2-2.5in Lifted Height

Bilstein  |  SKU: BIL-25-311792
Sale price $31000 Regular price $34100

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

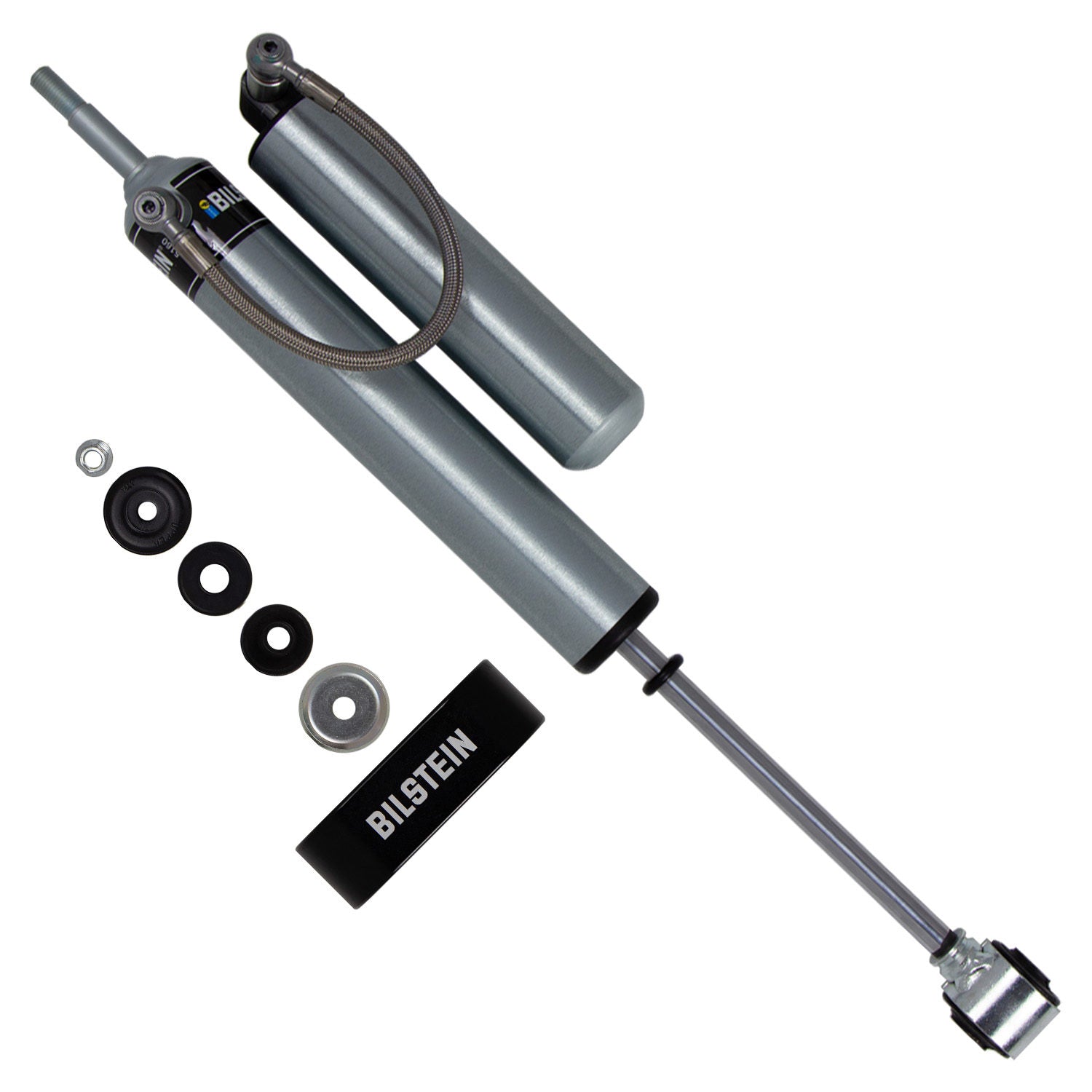

Bilstein 25-311792 - 05-22 Ford F-250/F-350 Super Duty B8 5160 Front Shock Absorber for 2-2.5in Lifted Height

Shock - B8 5160 Series - Remote Reservoir - Steel - Zinc Plated - Front - Ford Fullsize Truck 2005-07 - Each

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Stroke/Travel Length (mm): 199.1
Reservoir: Yes
Shaft Diameter: 14mm
Billet Reservoir Clamp Included: Yes
Internal Design: Monotube
Collapsed Length (IN): 13.17
Adjustable Damping: Non-Adjustable
Extended Length (MM): 533.7
Boot Included: No
Finish: Zinc Plated
Series: B8 5160
Lower Mount Type: Eye 14.4mm
Body Design: Smooth Body (Non-Coilover)
Piston Diameter: 46mm
Spring Seat Included: No
Collapsed Length (MM): 334.5
PartType: Shocks / Struts
Upper Mount Type: Stem
Segment: Light Truck
Extended Length (IN): 21.01
Stroke/Travel Length (IN): 7.84
