Bilstein 25-305258 - 2019+ Jeep Gladiator JT B8 8100 Series Rear Shock Absorber

Bilstein  |  SKU: BIL-25-305258
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

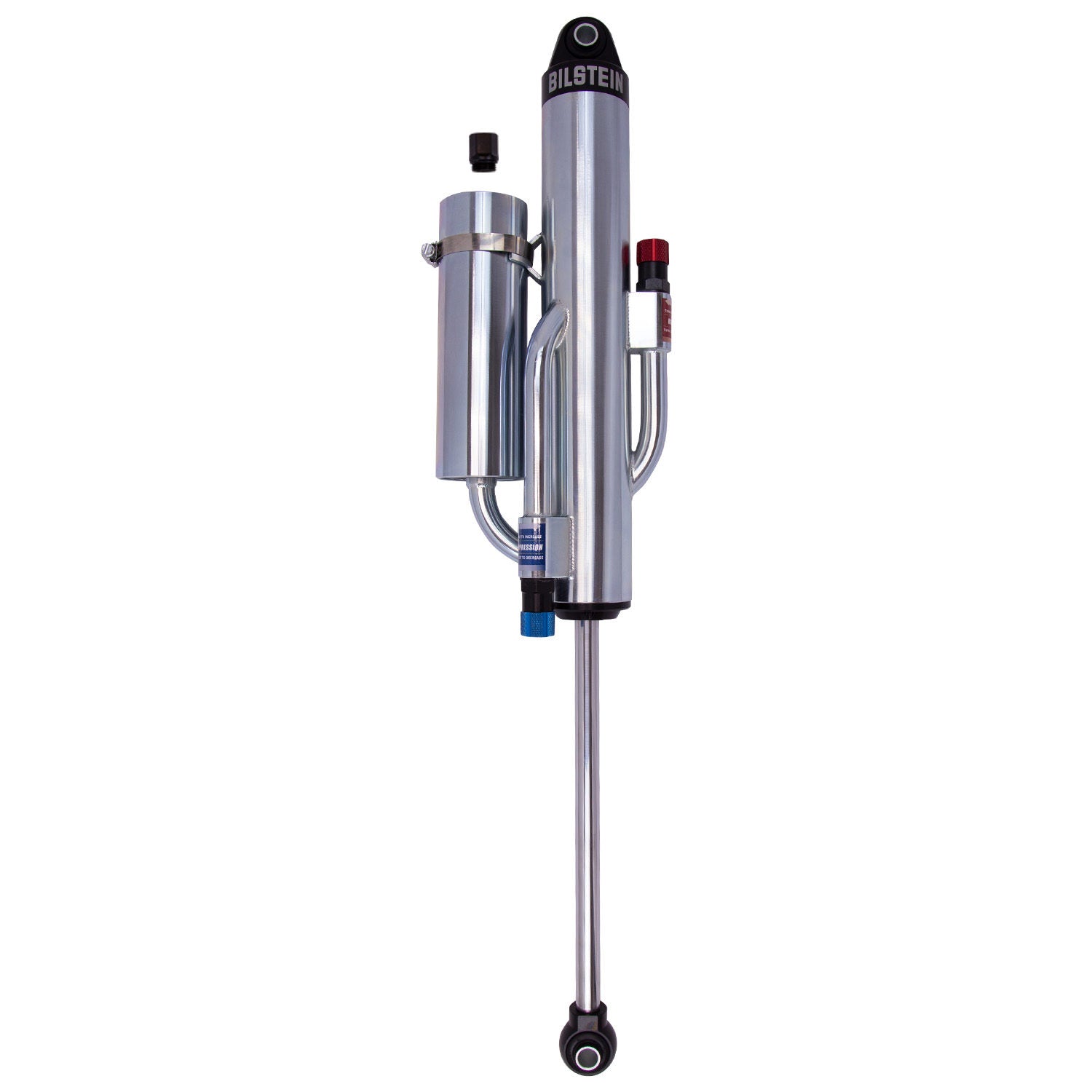

Bilstein 25-305258 - 2019+ Jeep Gladiator JT B8 8100 Series Rear Shock Absorber

B8 8100 (Bypass) - Suspension Shock Absorber

60mm Shock Absorber

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Collapsed Length (IN): 17.98
Finish: Zinc Plated
Lower Mount Type: Eye 14.1mm
Collapsed Length (MM): 456.7
Extended Length (IN): 29.33
Series: B8 8100 (Bypass)
PartType: Shocks / Struts
Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
Upper Mount Type: Eye 14.1mm
Reservoir: Yes
Extended Length (MM): 745.0
Boot Included: No
Piston Diameter: 60mm
Segment: Light Truck
Shaft Diameter: 18mm
Spring Seat Included: No
Body Design: Bypass Body (Non-Coilover)
Internal Design: Monotube
