Bilstein 25-286151 - Shock Absorbers

Bilstein  |  SKU: BIL-25-286151
Sale price $22500 Regular price $24750

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

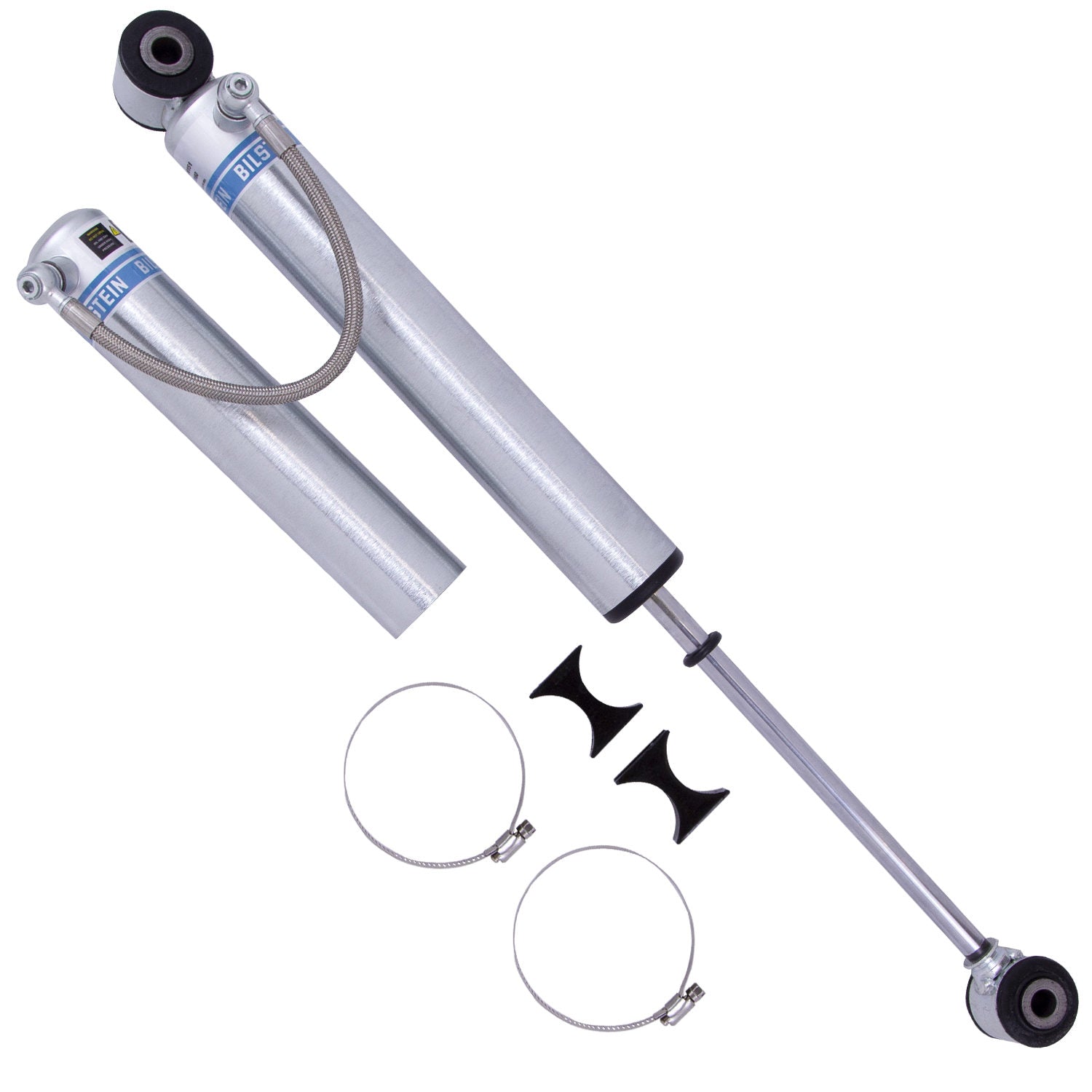

Bilstein 25-286151 - Shock Absorbers

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Collapsed Length (IN): 14.96

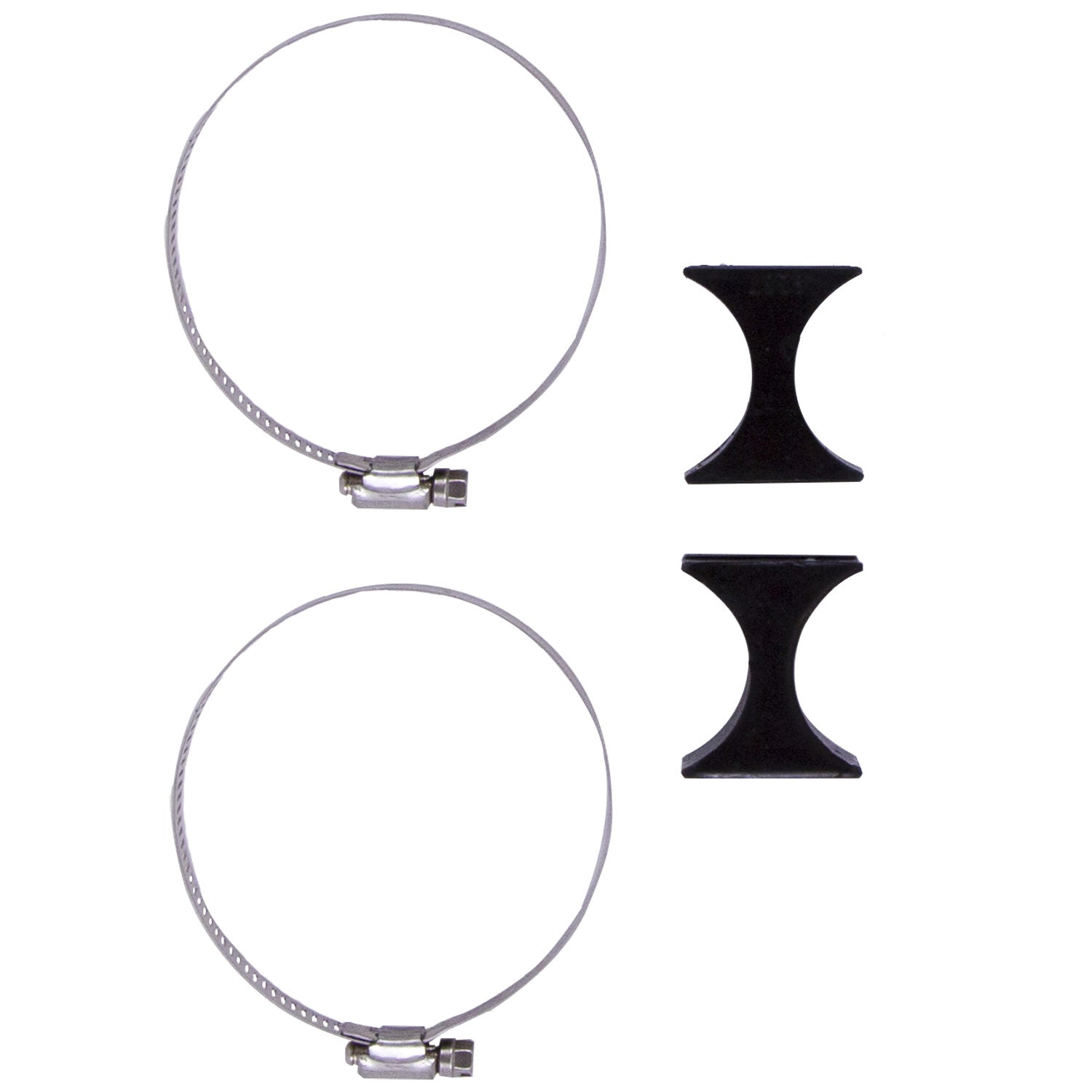

Optional Reservoir Clamp: 11-176015
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Billet Reservoir Clamp Included: No
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 629.2
Upper Mount Type: Eye 14mm
PartType: Shocks / Struts
Series: B8 5160
Stroke/Travel Length (IN): 9.81
Stroke/Travel Length (mm): 249.2
Shaft Diameter: 14mm
Segment: Light Truck
Extended Length (IN): 24.77
Piston Diameter: 46mm
Finish: Zinc Plated
Lower Mount Type: Eye 14mm
Boot Included: No
Reservoir: Yes
Collapsed Length (MM): 380.0
