Bilstein 25-193114 - 5160 Series 2006 Jeep TJ Rubicon Front 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-25-193114
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

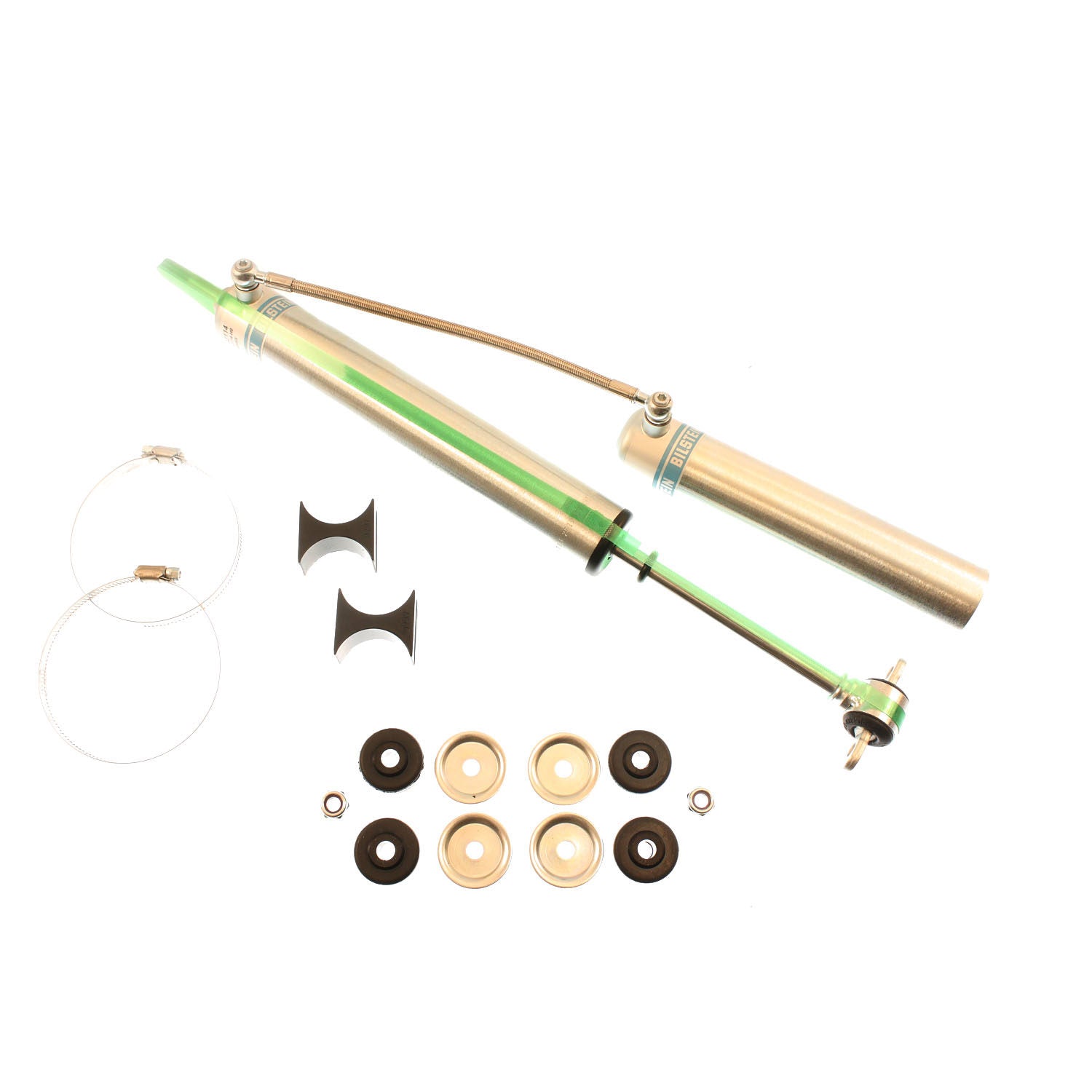

Bilstein 25-193114 - 5160 Series 2006 Jeep TJ Rubicon Front 46mm Monotube Shock Absorber

B8 5160 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Collapsed Length (IN): 14.53
Collapsed Length (MM): 369.0
Finish: Zinc Plated
Optional Reservoir Clamp: 11-176015
Extended Length (IN): 24.70
Series: B8 5160
Stroke/Travel Length (IN): 10.18
PartType: Shocks / Struts
Lower Mount Type: Bar Pin
Stroke/Travel Length (mm): 258.6
Extended Length (MM): 627.5
Boot Included: No
Piston Diameter: 46mm
Segment: Light Truck
Spring Seat Included: No
Billet Reservoir Clamp Included: No
Internal Design: Monotube
Upper Mount Type: Stem
Reservoir: Yes
Body Design: Smooth Body (Non-Coilover)
Adjustable Damping: Non-Adjustable
Shaft Diameter: 14mm
