Bilstein 25-187861 - 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-25-187861
Sale price $23700 Regular price $26070

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

NON-CANCELLABLE OR RETURNABLE ITEM:
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

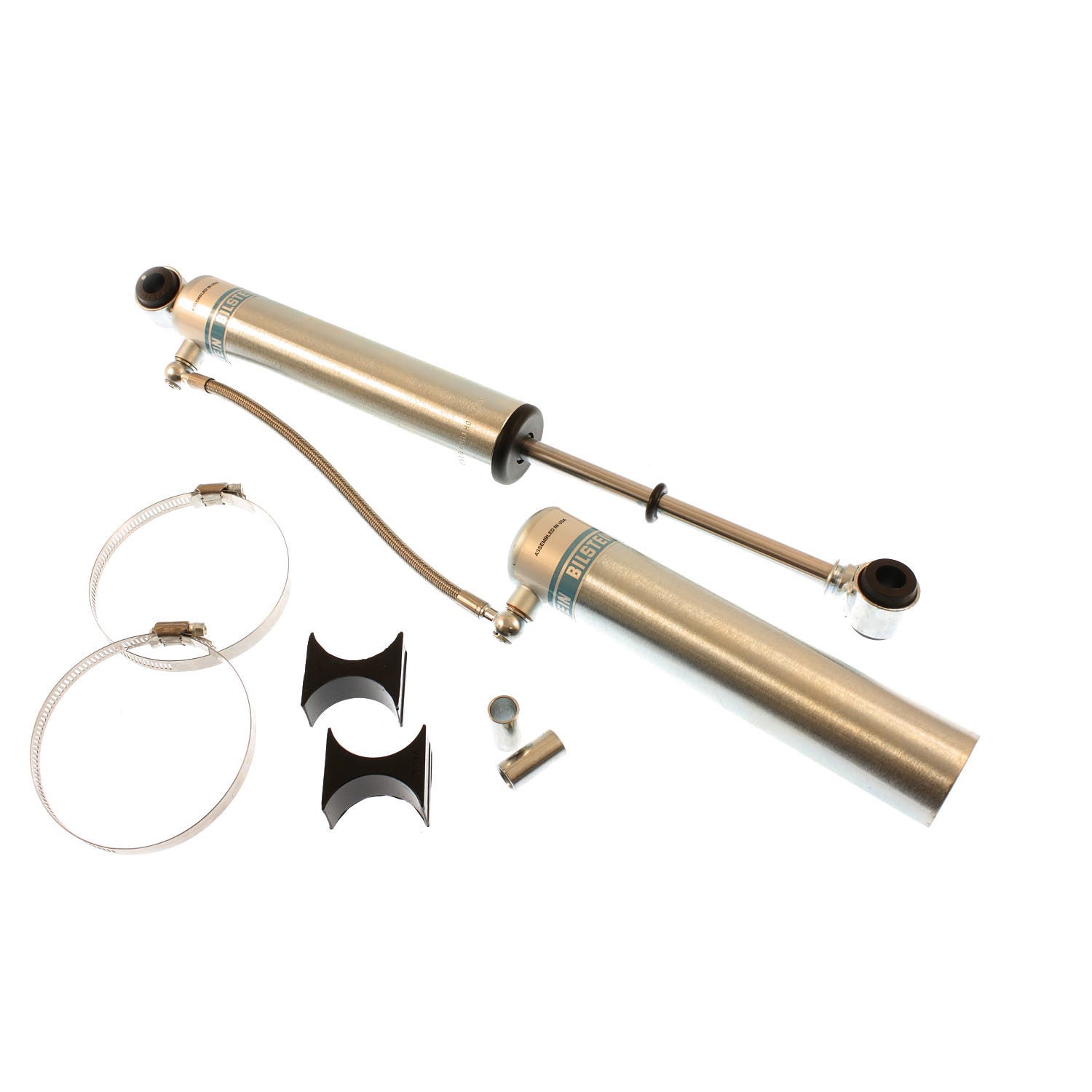

Bilstein 25-187861 - 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

B8 5165 Classic - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Collapsed Length (MM): 312.4
Adjustable Damping: Non-Adjustable
Shaft Diameter: 14mm
Extended Length (MM): 500.9
Internal Design: Monotube
Finish: Zinc Plated
Compression @0.52m/s: 575
Series: B8 5165
Rebound @0.52m/s: 1600
Lower Mount Type: Eye 5/8in
Stroke/Travel Length (mm): 188.5
Mount Type: Eye-to-Eye
Piston Diameter: 46mm
Segment: Light Truck
Spring Seat Included: No
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 12.30

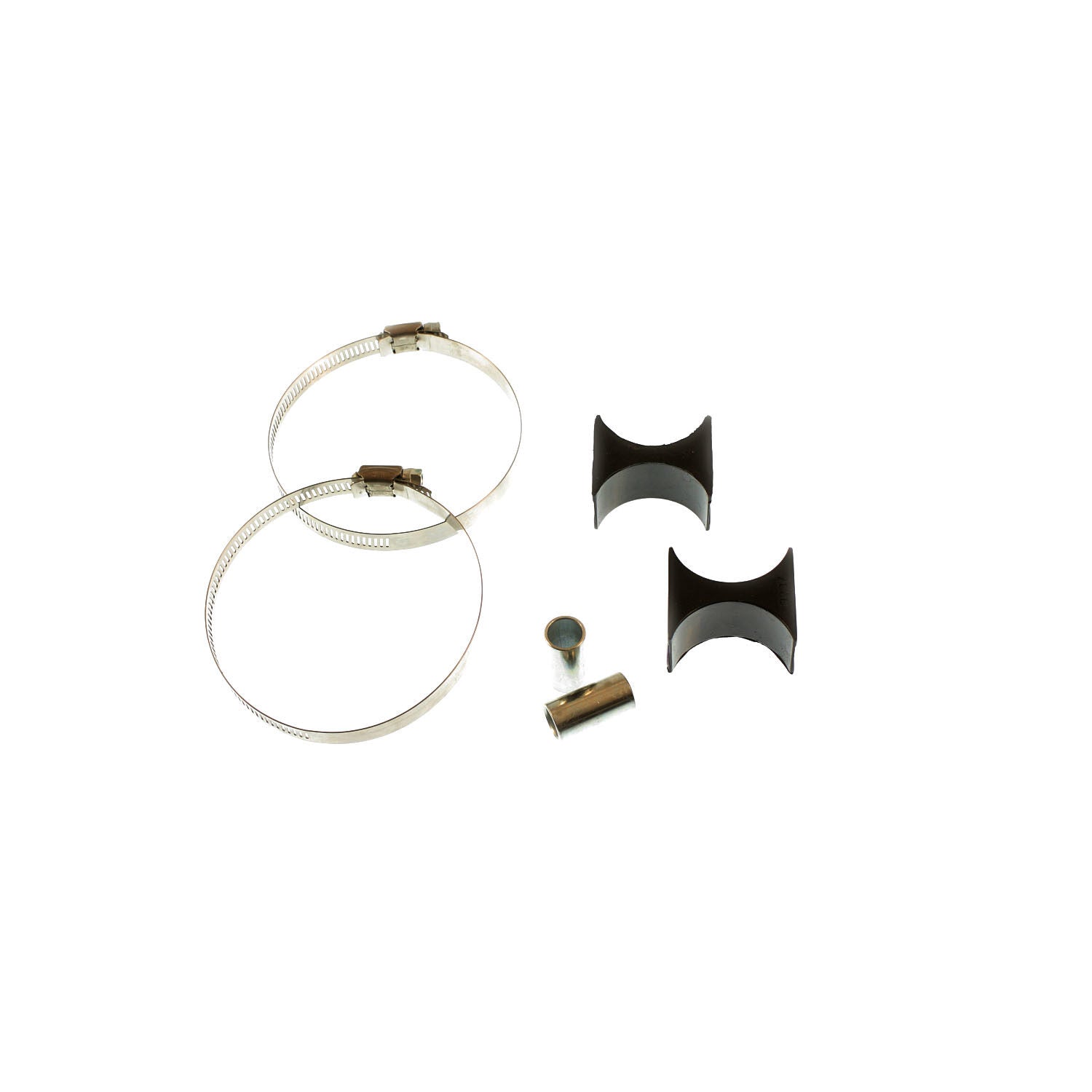

Optional Reservoir Clamp: 11-176015
Extended Length (IN): 19.72
Stroke/Travel Length (IN): 7.42
PartType: Shocks / Struts
Upper Mount Type: Eye 5/8in
Reservoir: Yes
Boot Included: No
