Bilstein 24-347464 - 2025 Toyota 4Runner / 24-25 Land Cruiser B8 5100 (Ride Height Adj) Front Shock - 0-3in Lift

Bilstein  |  SKU: BIL-24-347464
Sale price $17600 Regular price $24585

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

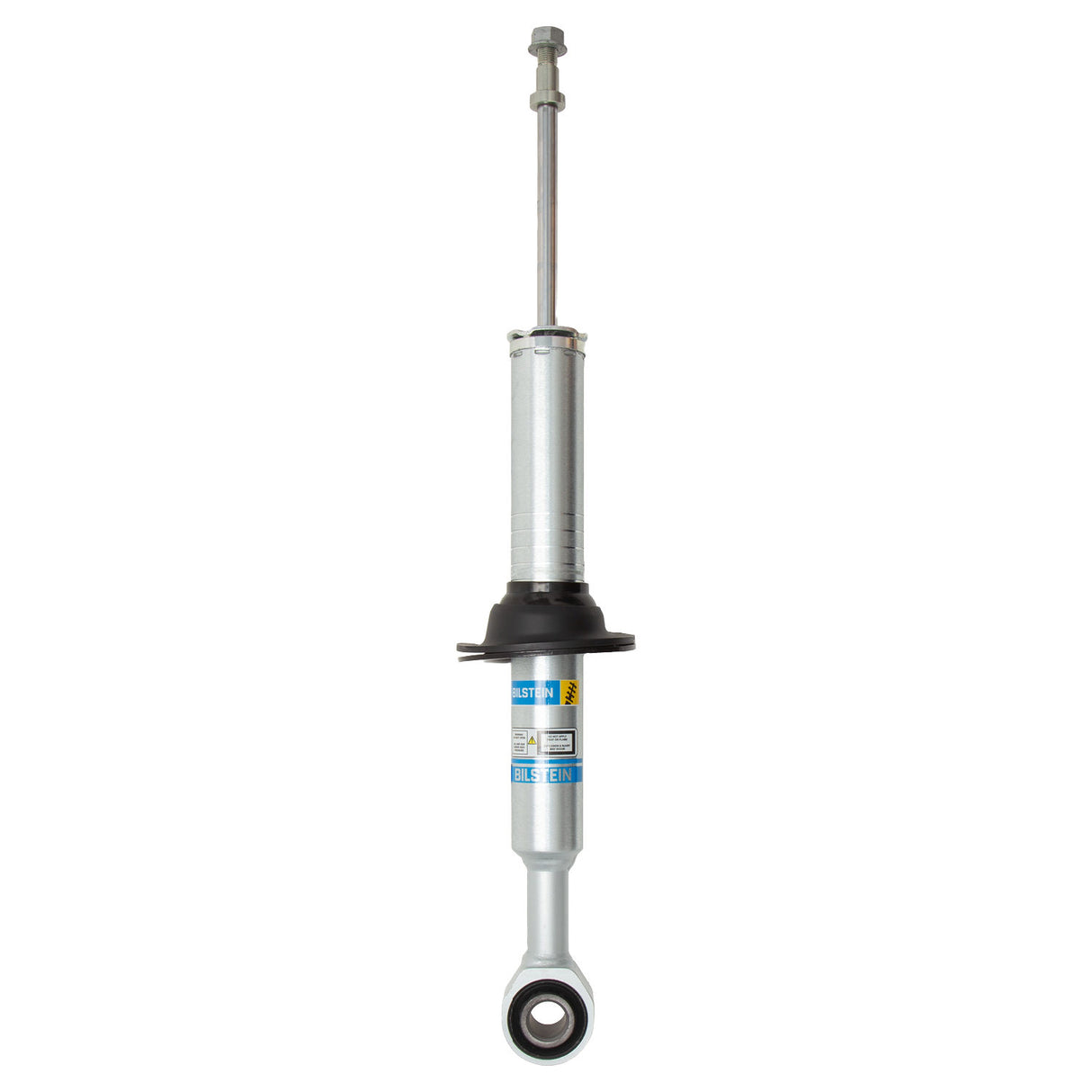

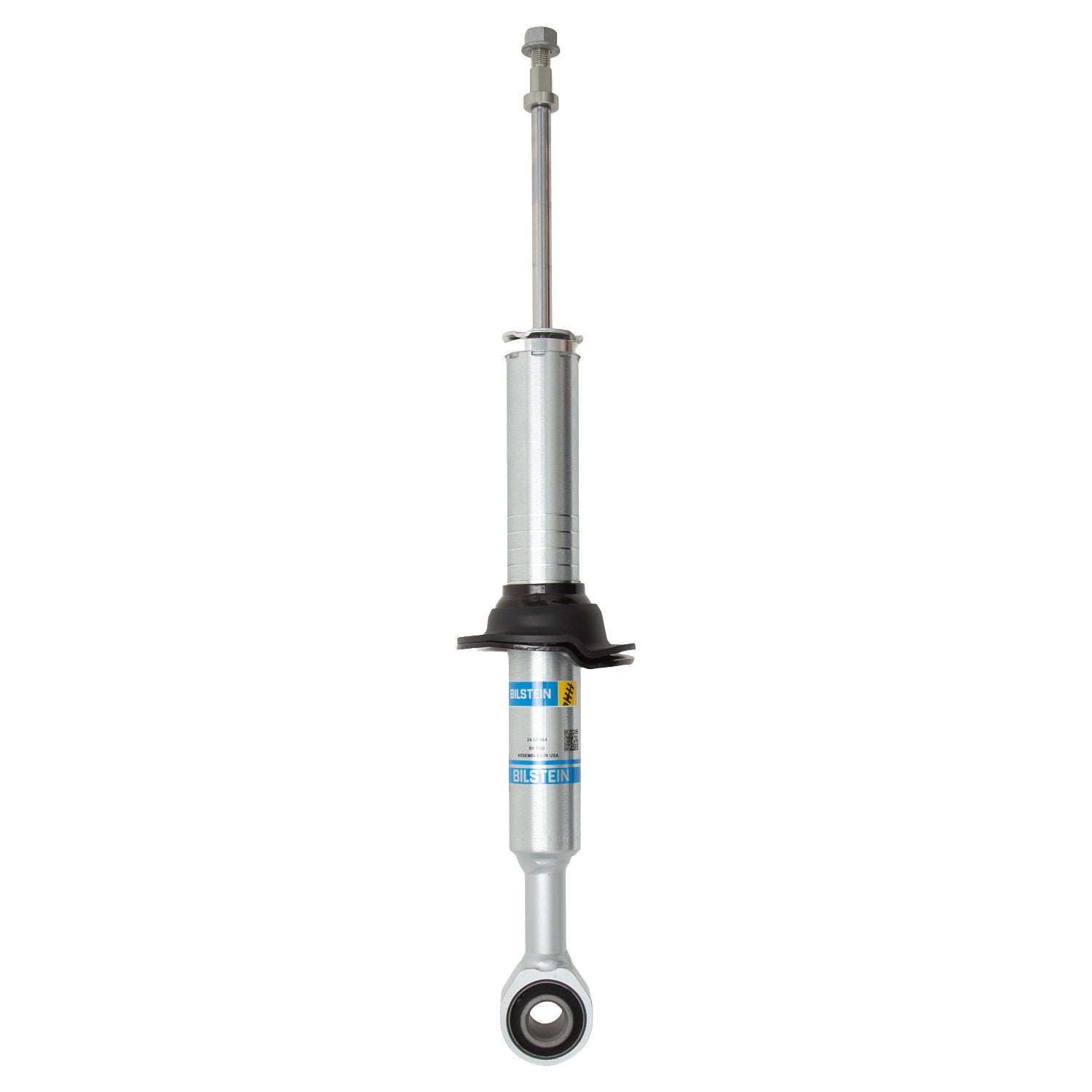

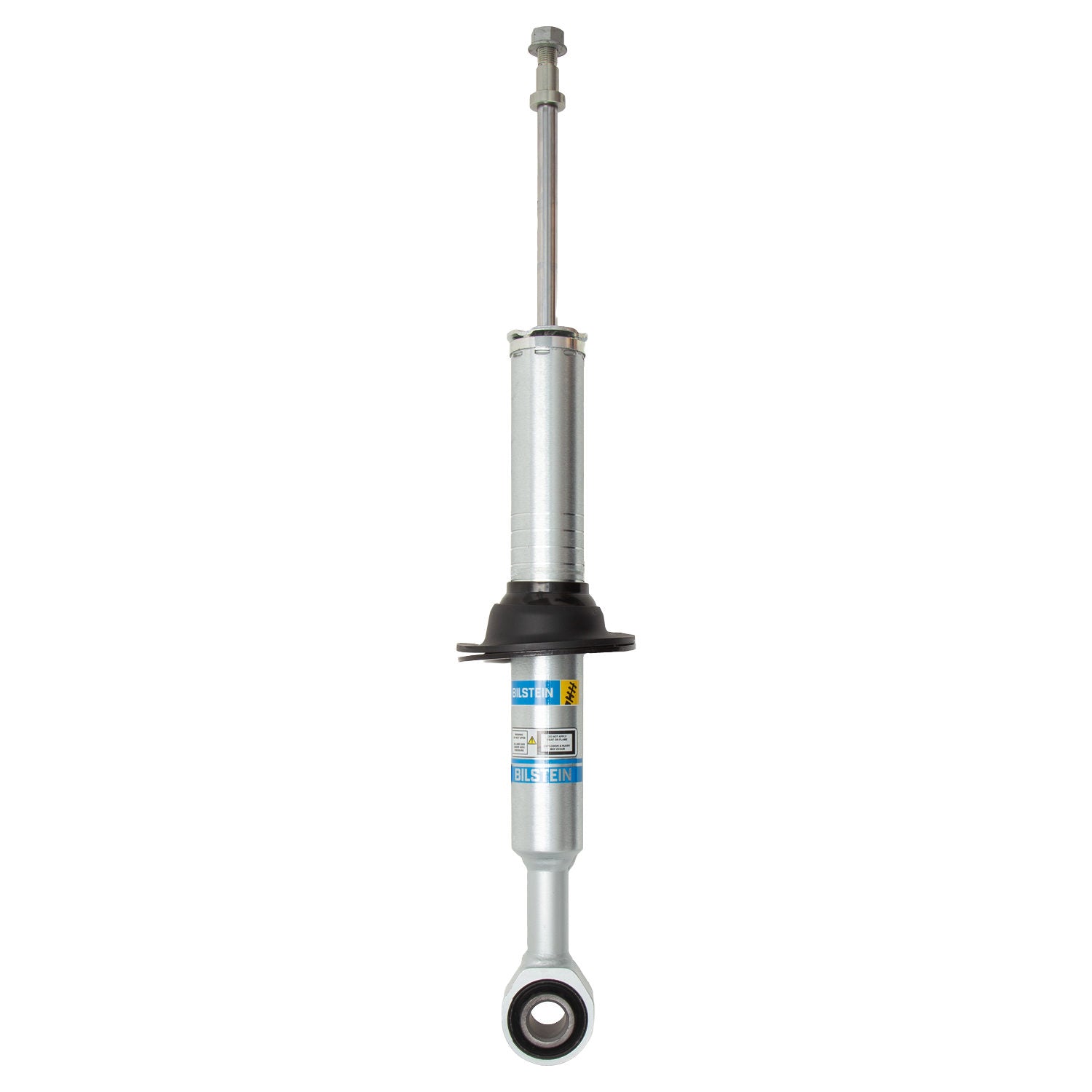

Bilstein 24-347464 - 2025 Toyota 4Runner / 24-25 Land Cruiser B8 5100 (Ride Height Adj) Front Shock - 0-3in Lift

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Internal Design: Monotube
Spring Seat Included: Yes
Finish: Zinc Plated
Reservoir: No
Stroke/Travel Length (IN): 5.50
Extended Length (IN): 24.46
Stroke/Travel Length (mm): 139.7
Body Design: Snap Ring Grooved Body (Coilover)
PartType: Shocks / Struts
Segment: Light Truck
Boot Included: No
Series: B8 5100 (Ride Height Adjustable)
Piston Diameter: 46mm
Adjustable Damping: Non-Adjustable
Upper Mount Type: Stem
Lower Mount Type: Eye 24.3mm
Shaft Diameter: 14mm
Collapsed Length (mm): 481.7
Collapsed Length (IN): 18.96
Extended Length (mm): 621.3
