Bilstein 24-337052 - 19-24 Chevrolet Silverado 1500 / GMC Sierra 1500 0-2.5in Lift Front B8 5100 Shock Absorber

Bilstein  |  SKU: BIL-24-337052
Sale price $18100 Regular price $25185

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

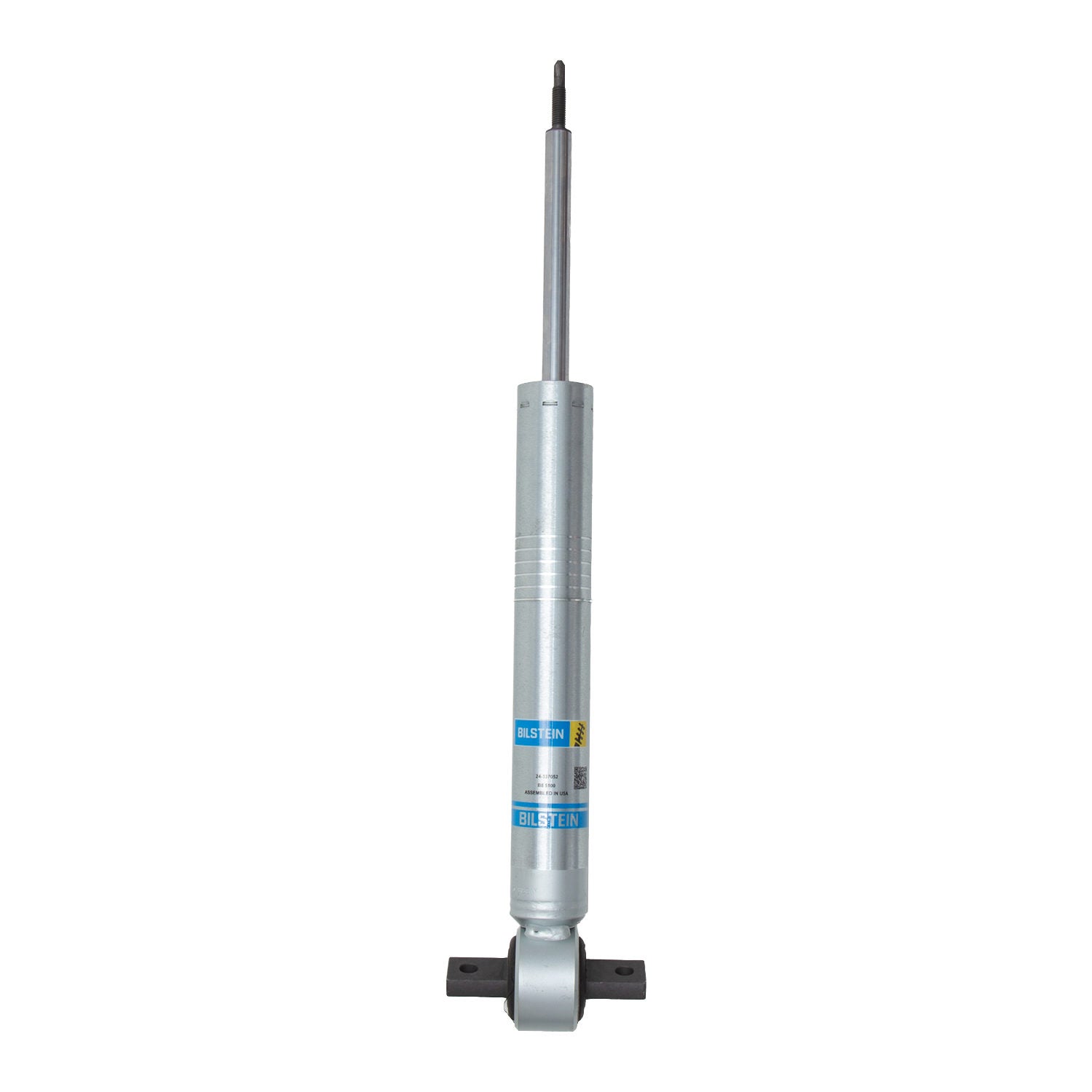

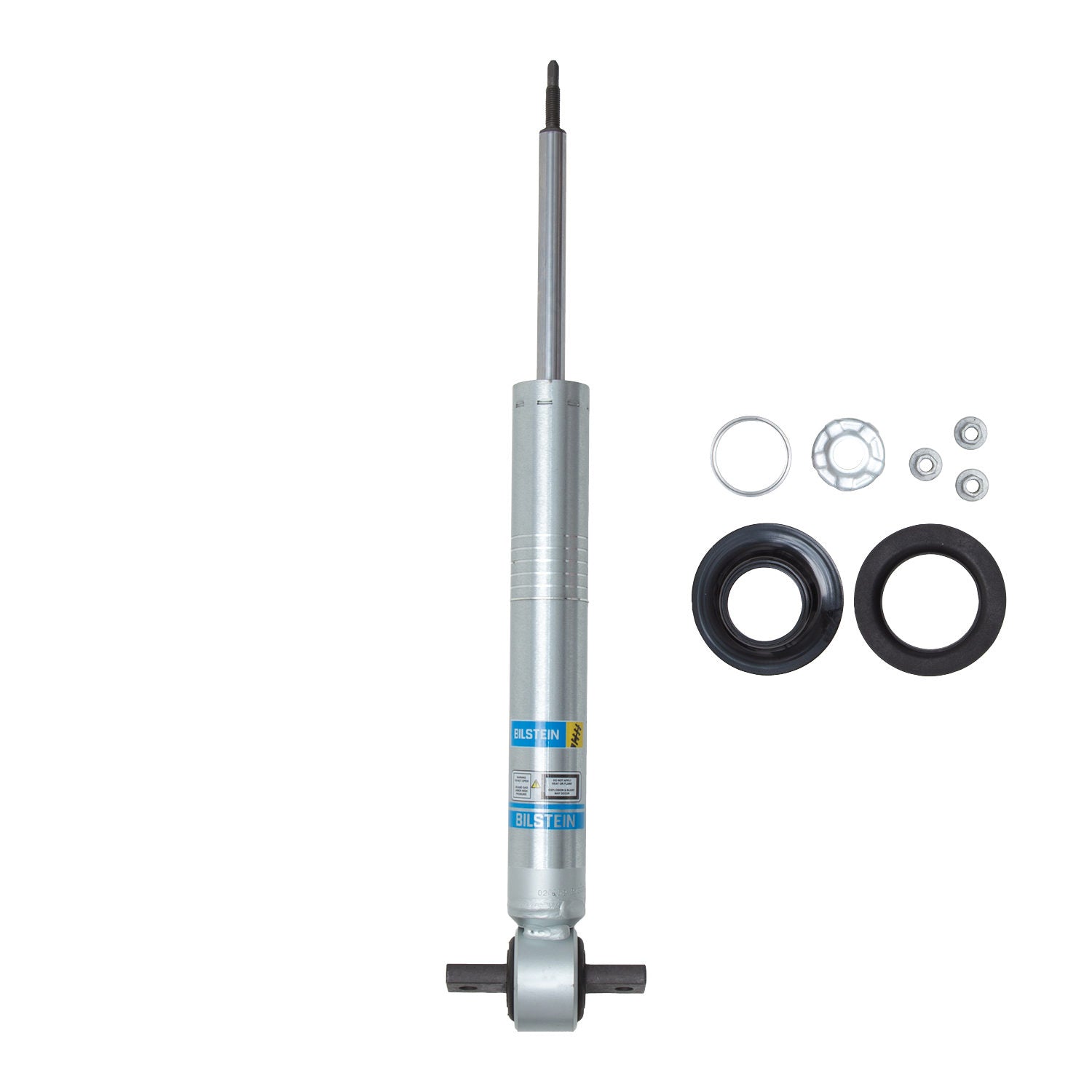

Bilstein 24-337052 - 19-24 Chevrolet Silverado 1500 / GMC Sierra 1500 0-2.5in Lift Front B8 5100 Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Stroke/Travel Length (IN): 5.37
Upper Mount Type: Stem
Reservoir: No
Boot Included: No
Collapsed Length (MM): 413.6
Shaft Diameter: 18mm
Internal Design: Monotube
Collapsed Length (IN): 16.28
Finish: Zinc Plated
Series: B8 5100 (Ride Height Adjustable)
Adjustable Damping: Non-Adjustable
PartType: Shocks / Struts
Lower Mount Type: Bar Pin
Stroke/Travel Length (mm): 136.4
Body Design: Snap Ring Grooved Body (Coilover)
Piston Diameter: 46mm
Segment: Light Truck
Spring Seat Included: Yes
Extended Length (MM): 550.0
Extended Length (IN): 21.65
