Bilstein 24-335041 - 22-24 Nissan Frontier B8 5100 (Ride Height Adjustable) Front Shock Absorber - 0-2in Lift

Bilstein  |  SKU: BIL-24-335041
Sale price $17600 Regular price $24585

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

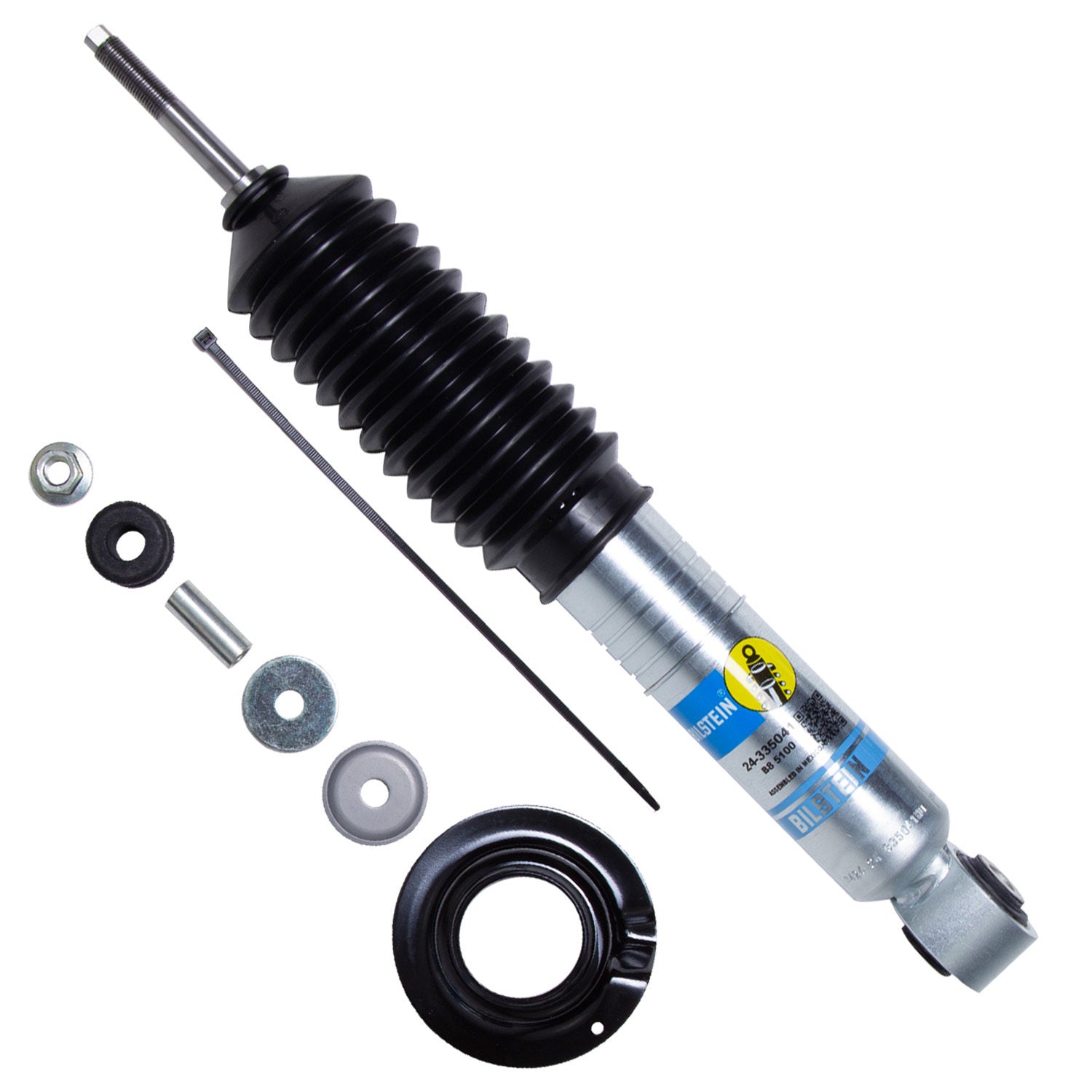

Bilstein 24-335041 - 22-24 Nissan Frontier B8 5100 (Ride Height Adjustable) Front Shock Absorber - 0-2in Lift

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (MM): 271.5
Finish: Zinc Plated
Extended Length (IN): 15.18
Series: B8 5100 (Ride Height Adjustable)
Stroke/Travel Length (IN): 4.49
Adjustable Damping: Non-Adjustable
PartType: Shocks / Struts
Lower Mount Type: Eye 14.1mm
Upper Mount Type: Stem
Stroke/Travel Length (mm): 114.1
Reservoir: No
Extended Length (MM): 385.5
Boot Included: Black Bellows
Body Design: Snap Ring Grooved Body (Coilover)
Piston Diameter: 46mm
Shaft Diameter: 14mm
Collapsed Length (IN): 10.69
Segment: Light Truck
Spring Seat Included: Yes
Internal Design: Monotube
