Bilstein 24-329217 - 22-24 Toyota Tundra B8 5100 Shock Absorber - Rear

Bilstein  |  SKU: BIL-24-329217
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

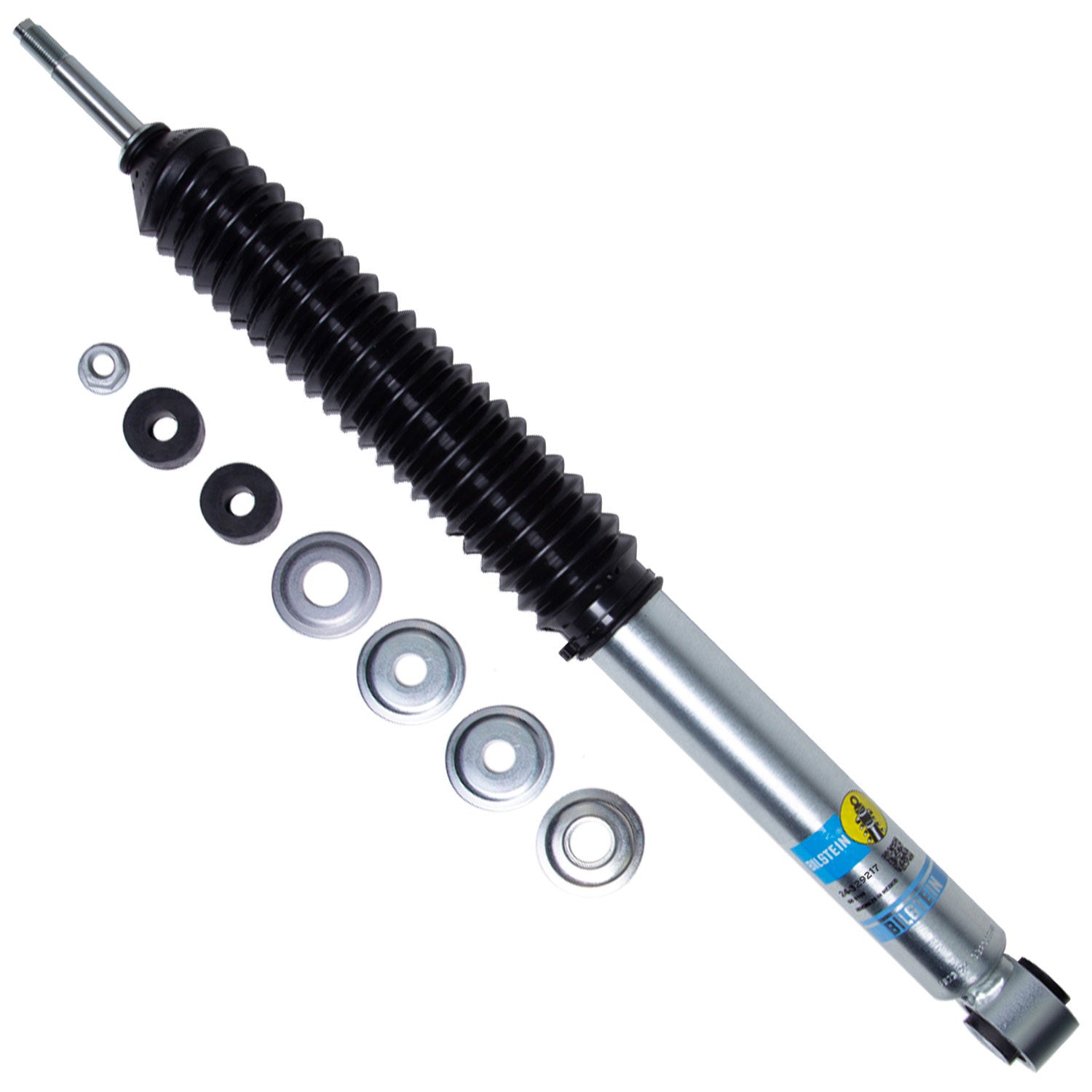

Bilstein 24-329217 - 22-24 Toyota Tundra B8 5100 Shock Absorber - Rear

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Stroke/Travel Length (IN): 8.47
Upper Mount Type: Stem
Boot Included: Black Bellows
Shaft Diameter: 14mm
Finish: Zinc Plated
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (mm): 215.1
Body Design: Smooth Body (Non-coilover)
Segment: Light Truck
Collapsed Length (IN): 16.59

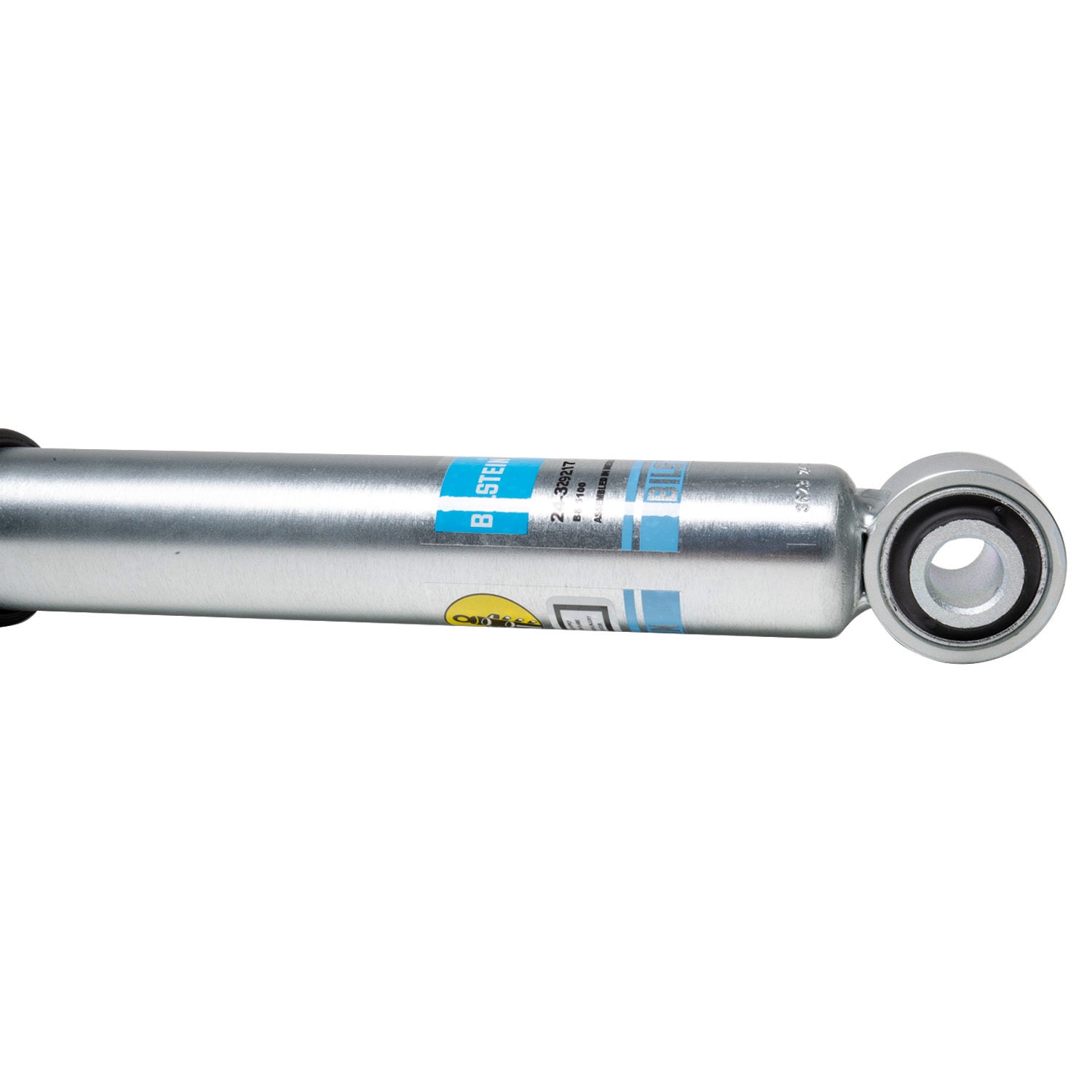

Lower Mount Type: Eye 19.1mm
Reservoir: No
Piston Diameter: 46mm
Internal Design: Monotube
Series: B8 5100
PartType: Shocks / Struts
Collapsed Length (MM): 421.4
Spring Seat Included: Yes
Extended Length (MM): 636.5
Extended Length (IN): 25.06
