Bilstein 24-323550 - 21-22 Ford Bronco 2 Door B8 5100 (Ride Height Adjustable) Monotube Shock Absorber - Front

Bilstein  |  SKU: BIL-24-323550
Sale price $16800 Regular price $23500

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

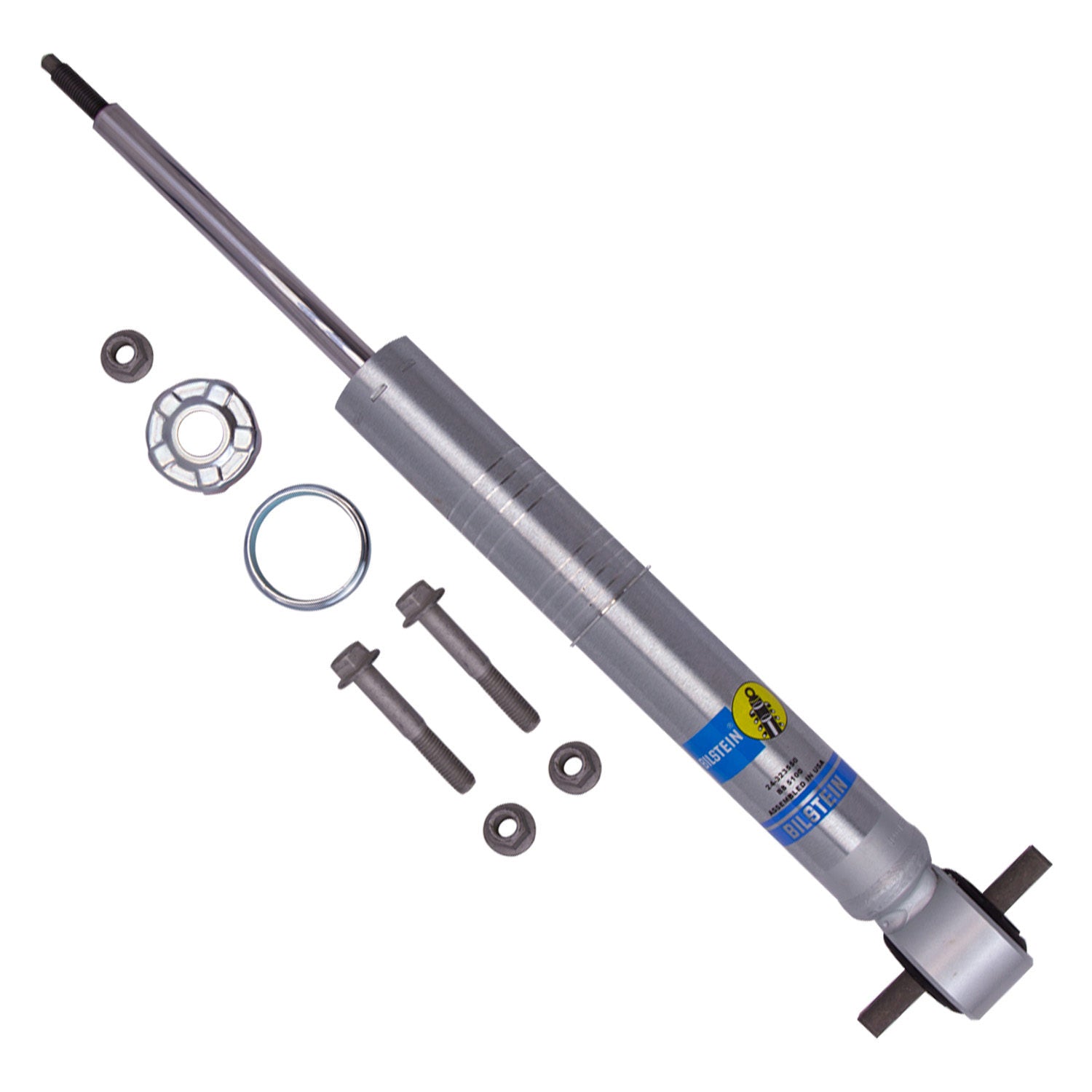

Bilstein 24-323550 - 21-22 Ford Bronco 2 Door B8 5100 (Ride Height Adjustable) Monotube Shock Absorber - Front

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Adjustable Damping: Non-Adjustable
Finish: Zinc Plated
Stroke/Travel Length (IN): 6.17
Lower Mount Type: Crossbar
Stroke/Travel Length (mm): 156.7
Piston Diameter: 46mm
Segment: Light Truck
Extended Length (MM): 579.2
Collapsed Length (MM): 422.2
Boot Included: No
Collapsed Length (IN): 16.62
Series: B8 5100 (Ride Height Adjustable)
PartType: Shocks / Struts
Upper Mount Type: Stem
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Shaft Diameter: 18mm
Spring Seat Included: No - Reuse OEM
Internal Design: Monotube
Extended Length (IN): 22.80
