Bilstein 24-317757 - 04-08 Ford F-150 / 06-08 Lincoln Mark LT B8 5100 (Ride Height Adj.) Shock Absorber - Front

Bilstein  |  SKU: BIL-24-317757
Sale price $16800 Regular price $23500

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

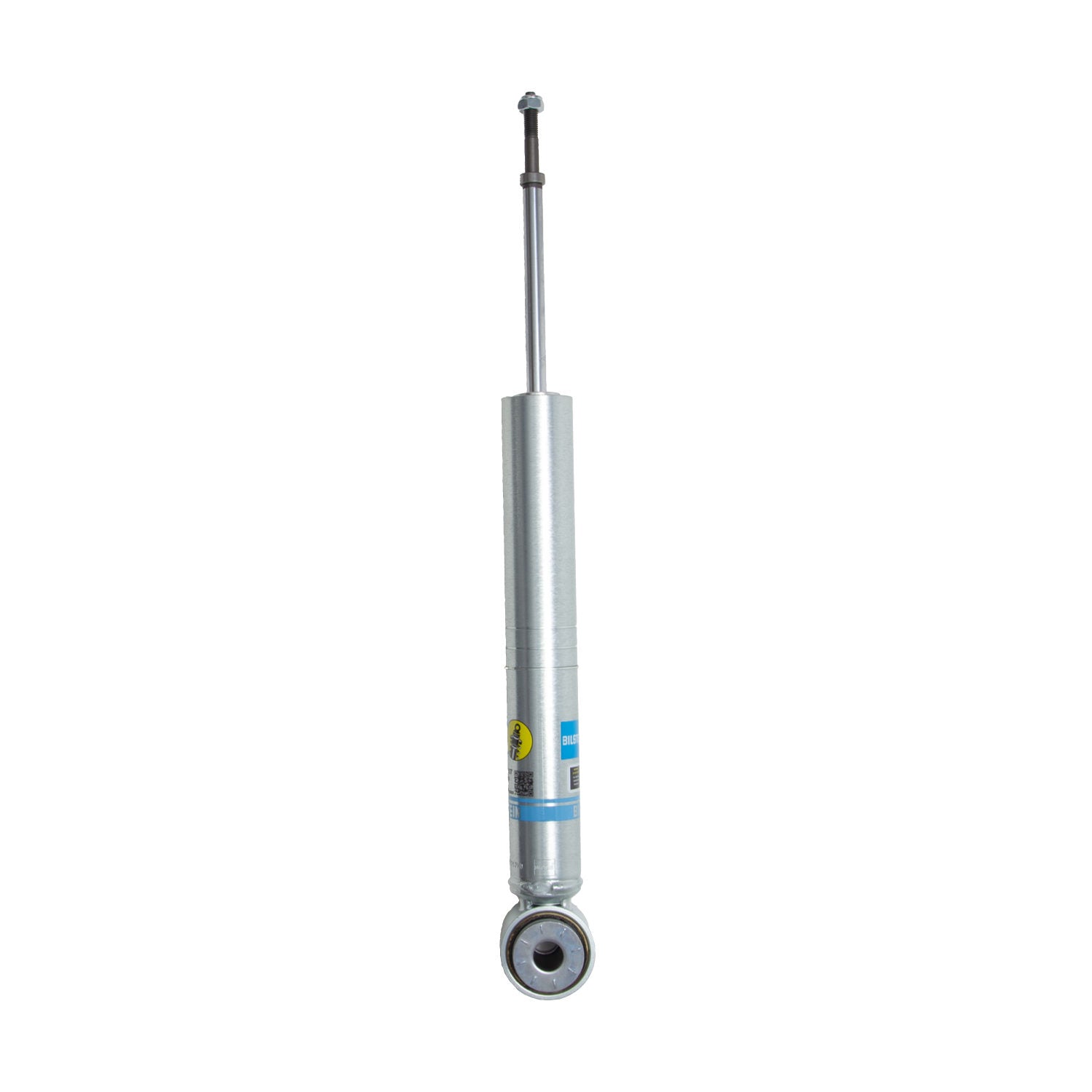

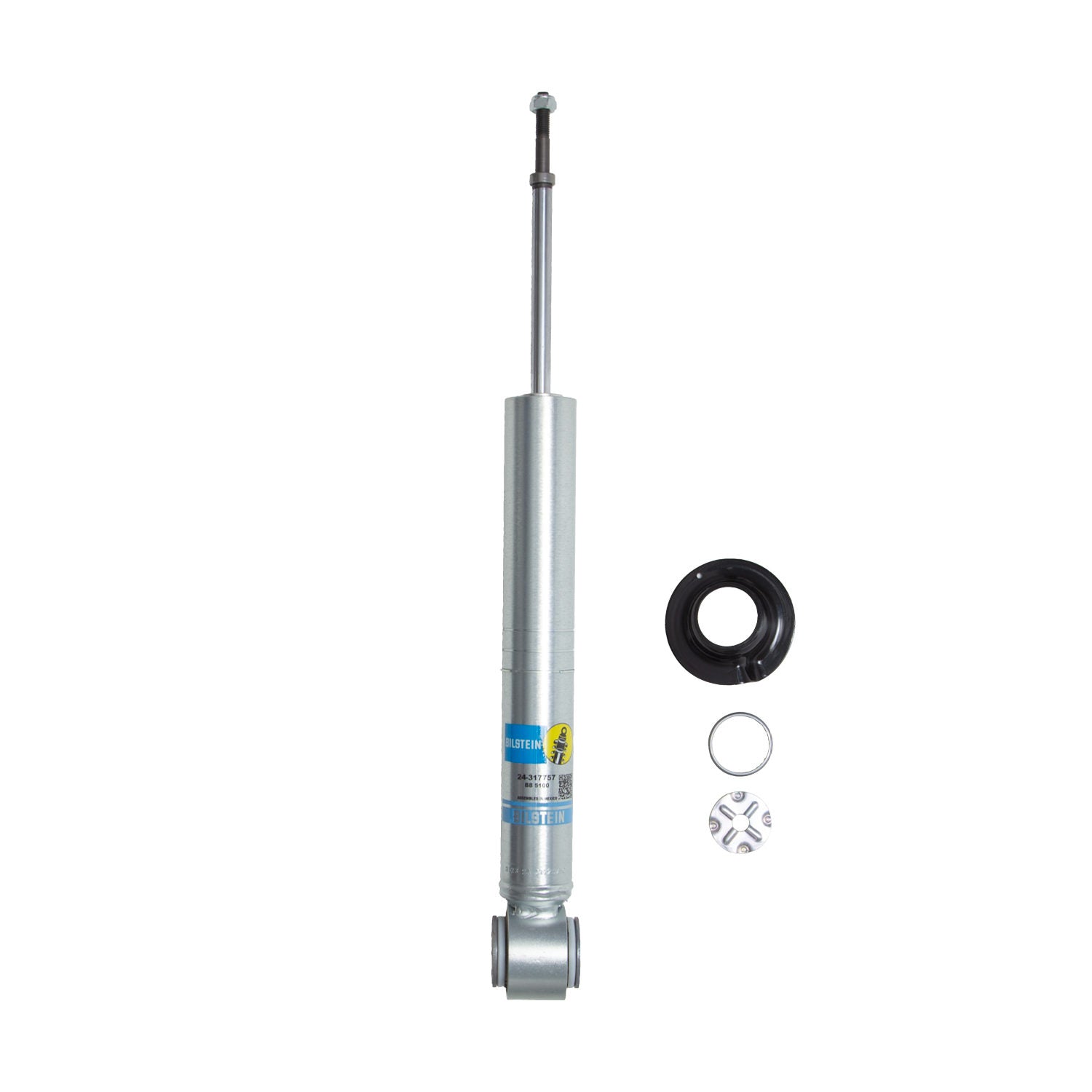

Bilstein 24-317757 - 04-08 Ford F-150 / 06-08 Lincoln Mark LT B8 5100 (Ride Height Adj.) Shock Absorber - Front

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Extended Length (IN): 20.97
Segment: Light Truck
Internal Design: Monotube
Finish: Zinc Plated
Body Diameter (ID): 46mm
Body Design: Snap Ring Grooved Body (Coilover)
Collapsed Length (MM): 390.5
Series: B8 5100 (Ride Height Adjustable)
Lower Mount Type: Eye 20.3mm
Spring Seat Included: Yes
Upper Mount Type: Stem
Extended Length (MM): 532.7
Boot Included: No
Spring Max Travel (IN): 5.60
Reservoir: No
Collapsed Length (IN): 15.37
Adjustable Damping: Non-Adjustable
PartType: Shocks / Struts
