Bilstein 24-313636 - Shock Absorbers
Bilstein | SKU:
BIL-24-313636
Sale price
$12516
Regular price
$13768
Unit price
/
Unavailable
$12.52 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

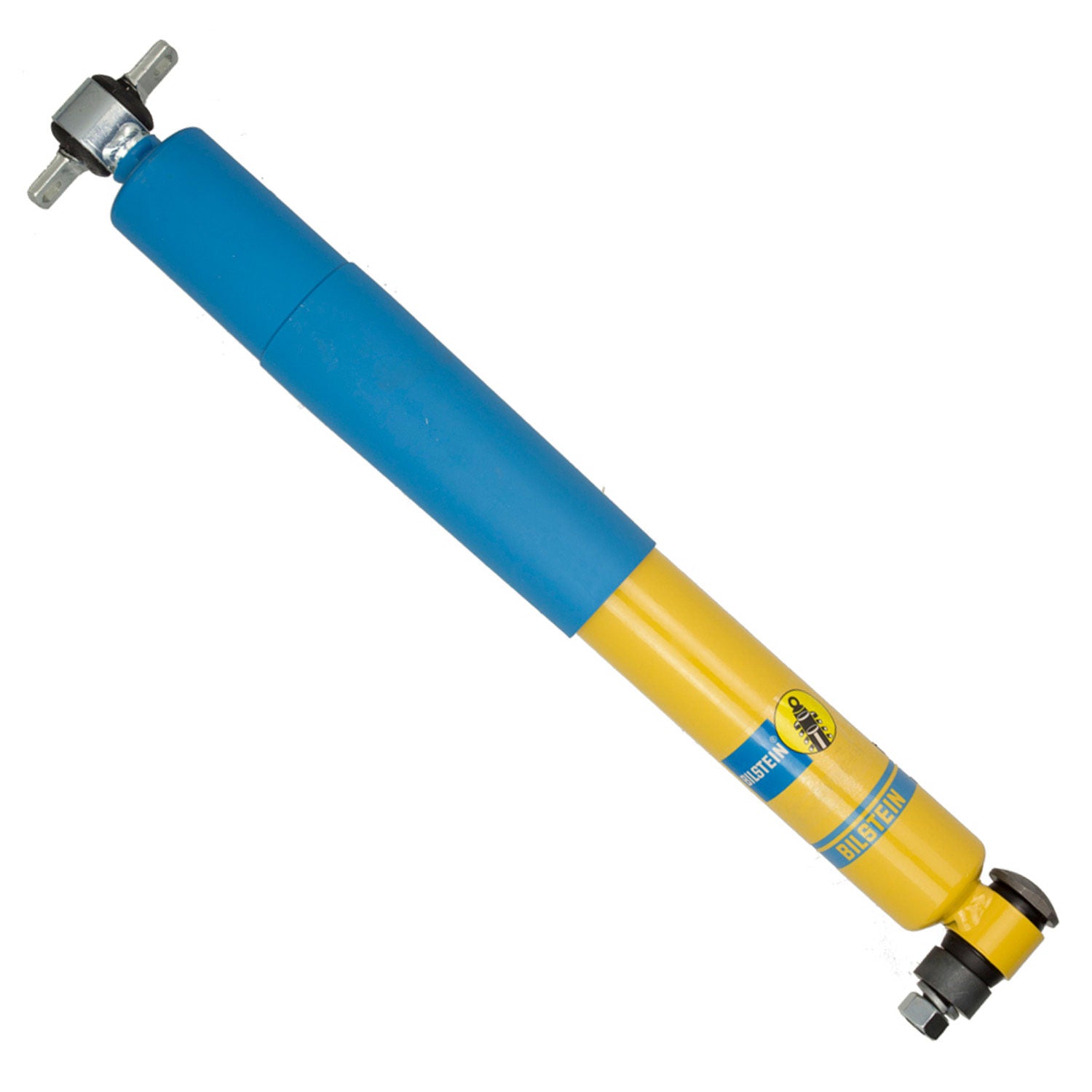

Bilstein 24-313636 - Shock Absorbers
Shock - AK Series - Monotube - 13.11 in Compressed / 20.31 in Extended - Digressive - Steel - Yellow Paint - Rear - GM A-Body 1973-83 - Each
46mm Monotube Suspension Shock Absorber
Bilstein AK Series Suspension Shock Absorbers are designed for motorsports applications that require the use of the OE mounting components. Each Suspension Shock Absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series Suspension Shock Absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Collapsed Length (IN): 13.11
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Design: Stock Mount Smooth Body
Extended Length (MM): 515.0
PartType: Shocks / Struts
Upper Mount Type: Bar Pin
Series: AK Series
Stroke/Travel Length (IN): 7.17
Stroke/Travel Length (mm): 182.1
Body Material: Steel
Collapsed Length (MM): 333.0
Rebound @0.52m/s: 1185
Boot Included: Blue Straight
Lower Mount Type: Cantilever
Compression @0.52m/s: 835
Shaft Diameter: 11mm
Finish: Yellow Paint
Piston Diameter: 46mm
Segment: Motorsports
Piston Type: Digressive
Extended Length (IN): 20.28
