CSP SAVINGS!

CSP2026

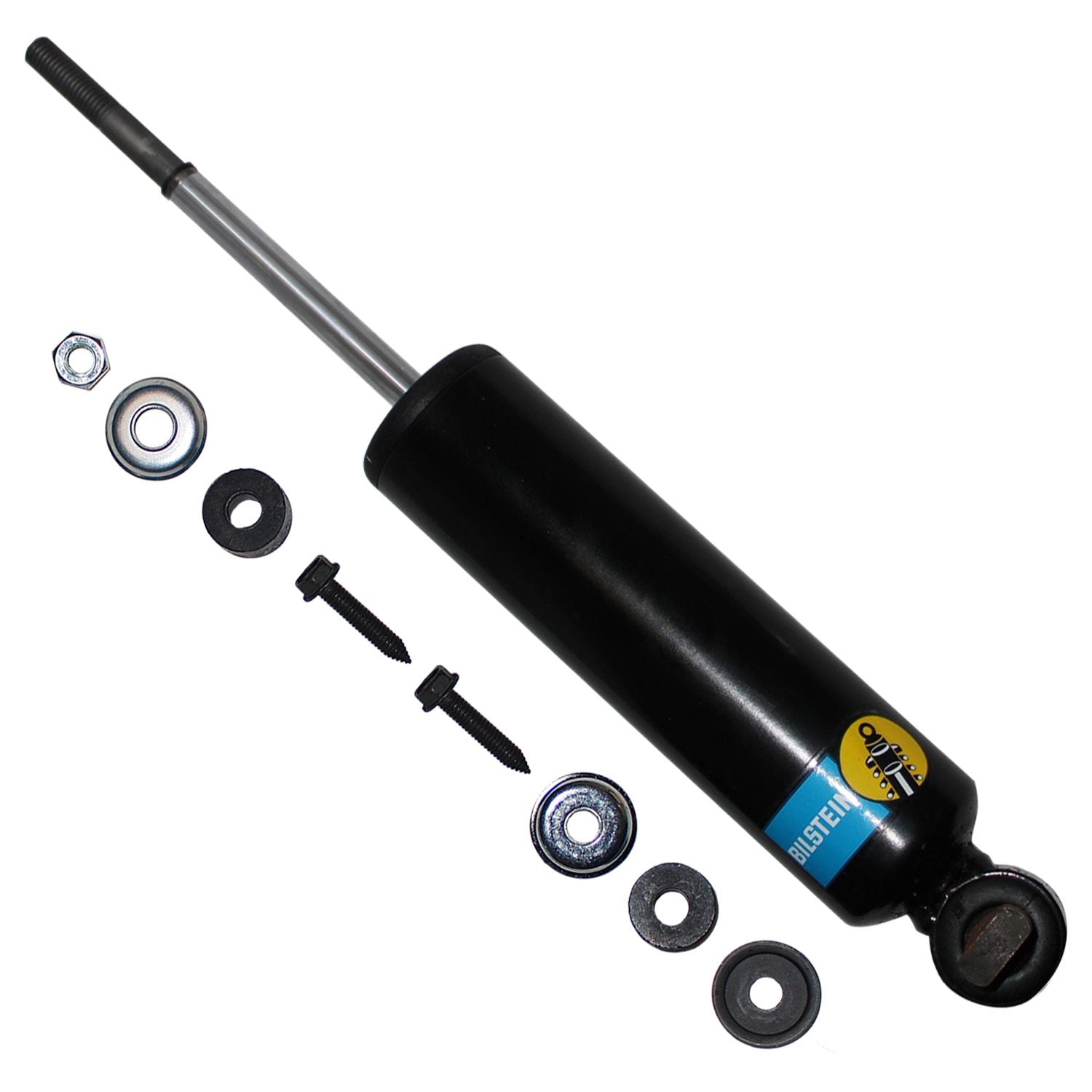

Bilstein 24-296830 - GM Metric Rear - 5 Valving 46mm Monotube SMX Series Shock

Bilstein  |  SKU: BIL-24-296830
Sale price $17915 Regular price $19706

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 24-296830 - GM Metric Rear - 5 Valving 46mm Monotube SMX Series Shock

Shock - SMX Series - Monotube - C5-R5 Valve - Steel - Black Paint - Front - GM A-Body / F-Body / G-Body - Each

46mm Monotube Shock Absorber

Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.

  • Stock mount design for GM metric chassis applications
  • 46mm piston design for maximum damping control
  • A wide range of valving choices available for endless tuning combinations
Boot Included: No
Compression @ 10"/sec: 275
Stroke/Travel Length (IN): 3.74
PartType: Shocks / Struts
Lower Mount Type: Bar Pin
Stroke/Travel Length (mm): 95.0
Body Design: Stock Mount Smooth Body
Shaft Diameter: 11mm
Collapsed Length (IN): 8.27
Body Material: Steel
Spring Hardware: N/A
Collapsed Length (MM): 210.0
Extended Length (IN): 12.01
Finish: Black Paint
Series: SMX Series
Adjustable Damping: Non-Adjustable
Rebound @ 10"/sec: 275
Upper Mount Type: Stem
Piston Diameter: 46mm
Piston Type: Linear
Segment: Motorsports
Spring Seat Included: No
Internal Design: Monotube
Extended Length (MM): 305.0
