Bilstein 24-294225 - 5100 Series 19-20 Ford Ranger Rear 46mm Monotube Shock Absorber (for 0-1in Rear Lift)

Bilstein  |  SKU: BIL-24-294225
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

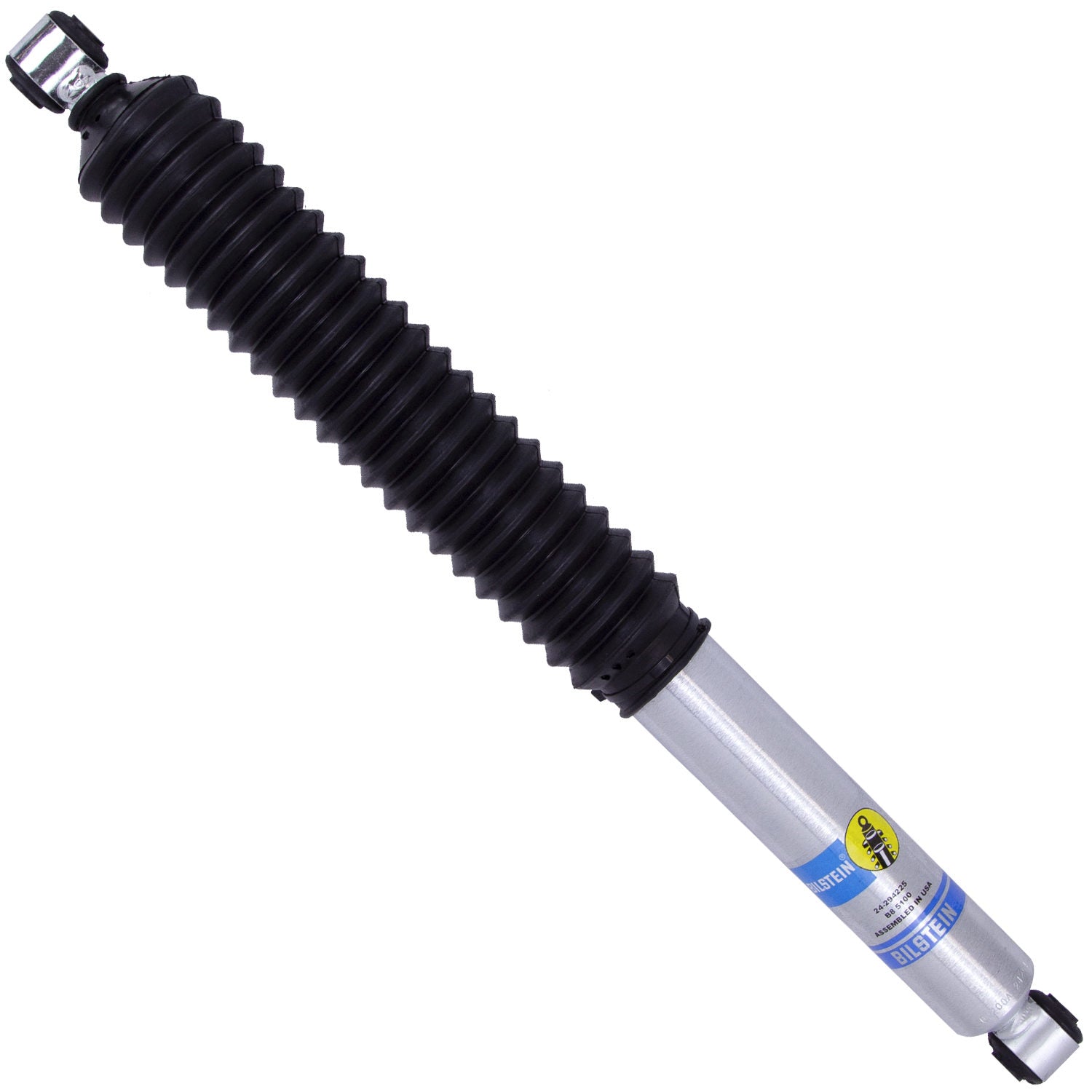

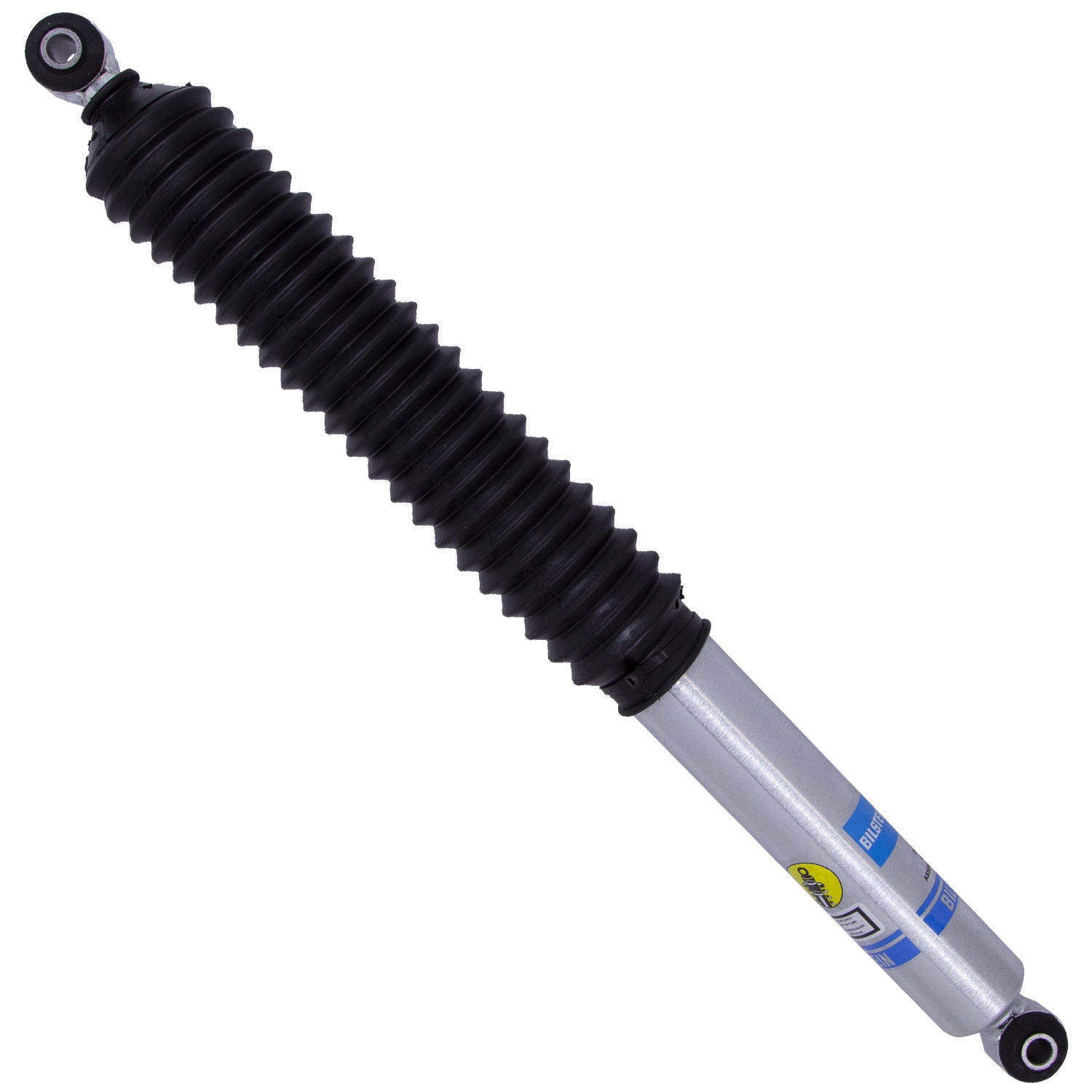

Bilstein 24-294225 - 5100 Series 19-20 Ford Ranger Rear 46mm Monotube Shock Absorber (for 0-1in Rear Lift)

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Series: B8 5100
Upper Mount Type: Eye 12.1mm
Body Design: Smooth Body (Non-coilover)
Extended Length (IN): 24.71
PartType: Shocks / Struts
Stroke/Travel Length (mm): 232.7
Piston Diameter: 46mm
Collapsed Length (IN): 15.55
Spring Seat Included: No
Collapsed Length (MM): 395.0
Shaft Diameter: 14mm
Segment: Light Truck
Internal Design: Monotube
Extended Length (MM): 627.7
Lower Mount Type: Eye 12.1mm
Stroke/Travel Length (IN): 9.16
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
