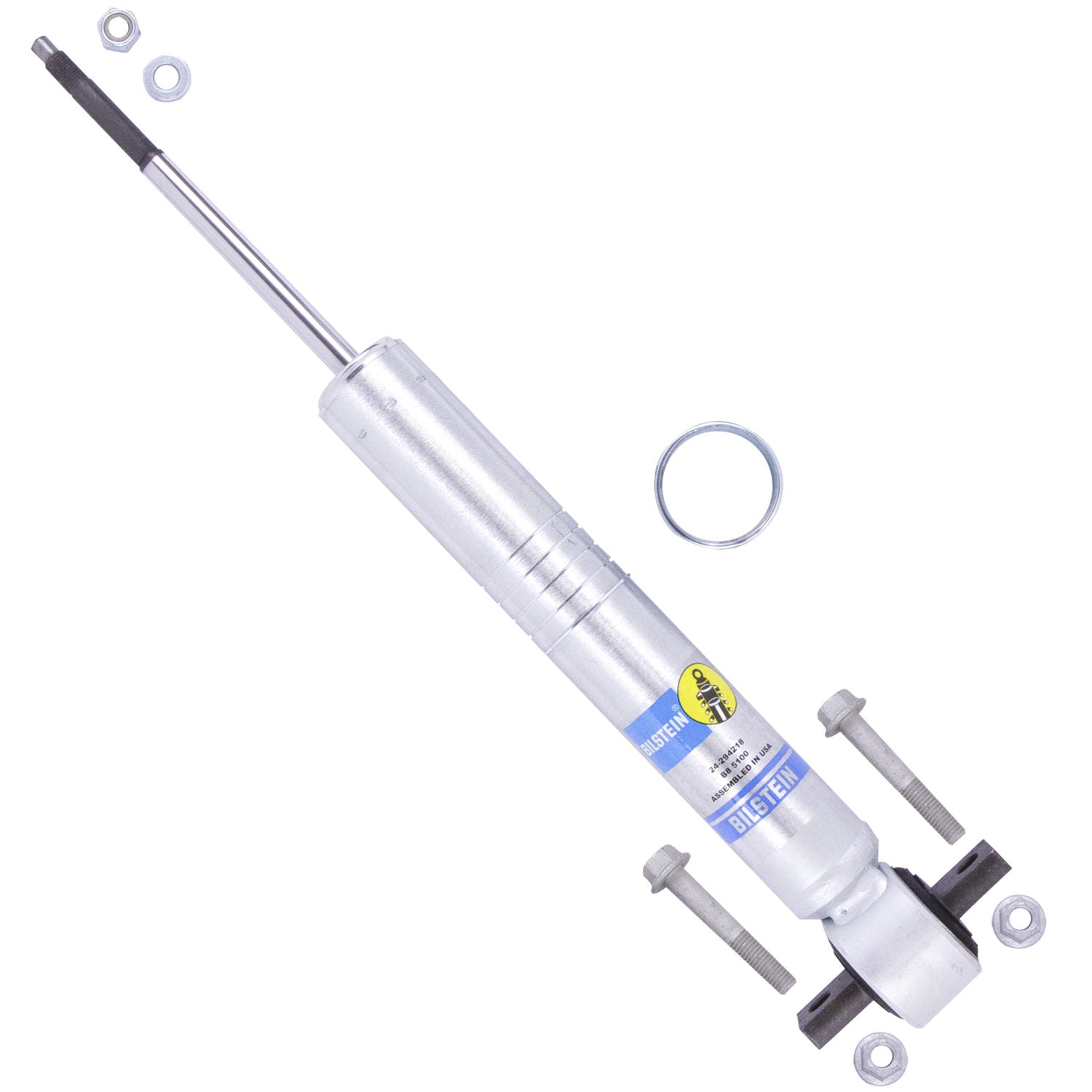

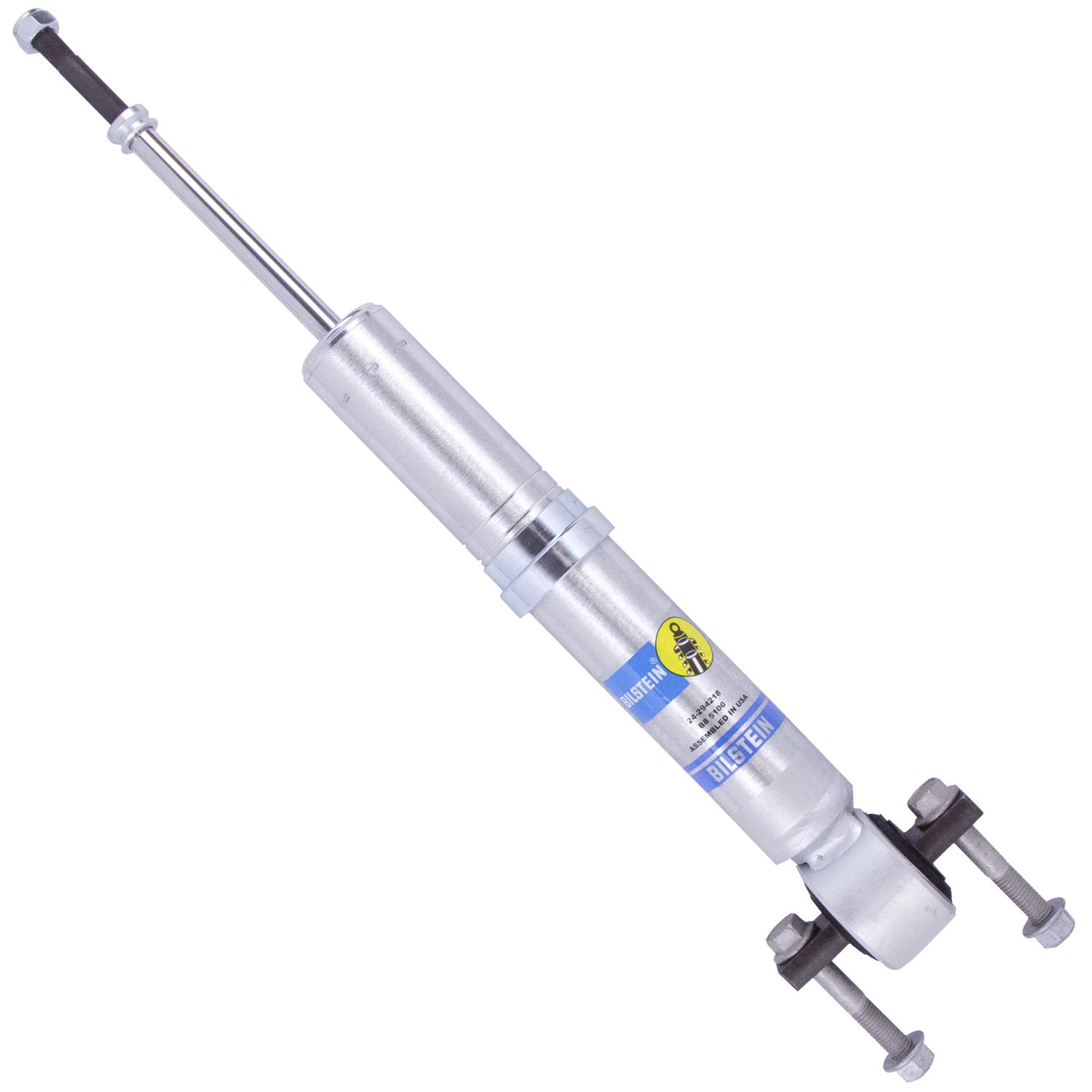

Bilstein 24-294218 - B8 5100 Series 19-20 Ford Ranger 46mm Monotube (Ride Height Adjustable) Shock Absorber

Bilstein  |  SKU: BIL-24-294218
Sale price $17600 Regular price $24585

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 24-294218 - B8 5100 Series 19-20 Ford Ranger 46mm Monotube (Ride Height Adjustable) Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Boot Included: No
PartType: Shocks / Struts
Reservoir: No
Shaft Diameter: 14mm
Collapsed Length (MM): 370.5
Finish: Zinc Plated
Stroke/Travel Length (IN): 4.67
Stroke/Travel Length (mm): 118.6
Piston Diameter: 46mm
Internal Design: Monotube
Collapsed Length (IN): 14.59
Adjustable Damping: Non-Adjustable
Upper Mount Type: Stem
Body Design: Snap Ring Grooved Body (Coilover)
Extended Length (IN): 19.26
Series: B8 5100 (Ride Height Adjustable)
Lower Mount Type: Crossbar
Segment: Light Truck
Spring Seat Included: No - Reuse OEM
Extended Length (MM): 489.2
