Bilstein 24-294195 - B6 4600 19-21 Ford Ranger Rear 46mm Monotube Shock Absorber (for 0-1in Rear Lift)

Bilstein  |  SKU: BIL-24-294195
Sale price $9200 Regular price $13685

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

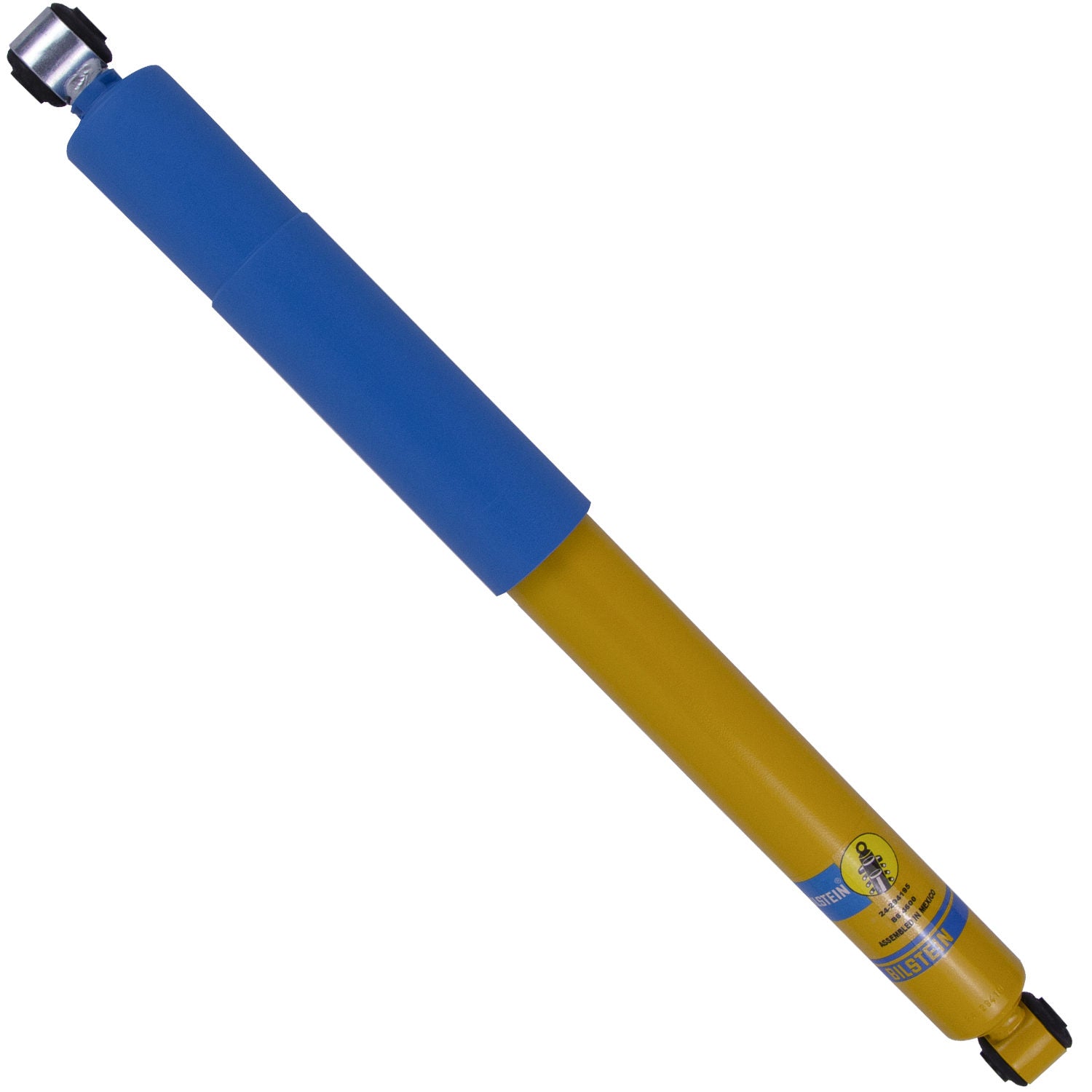

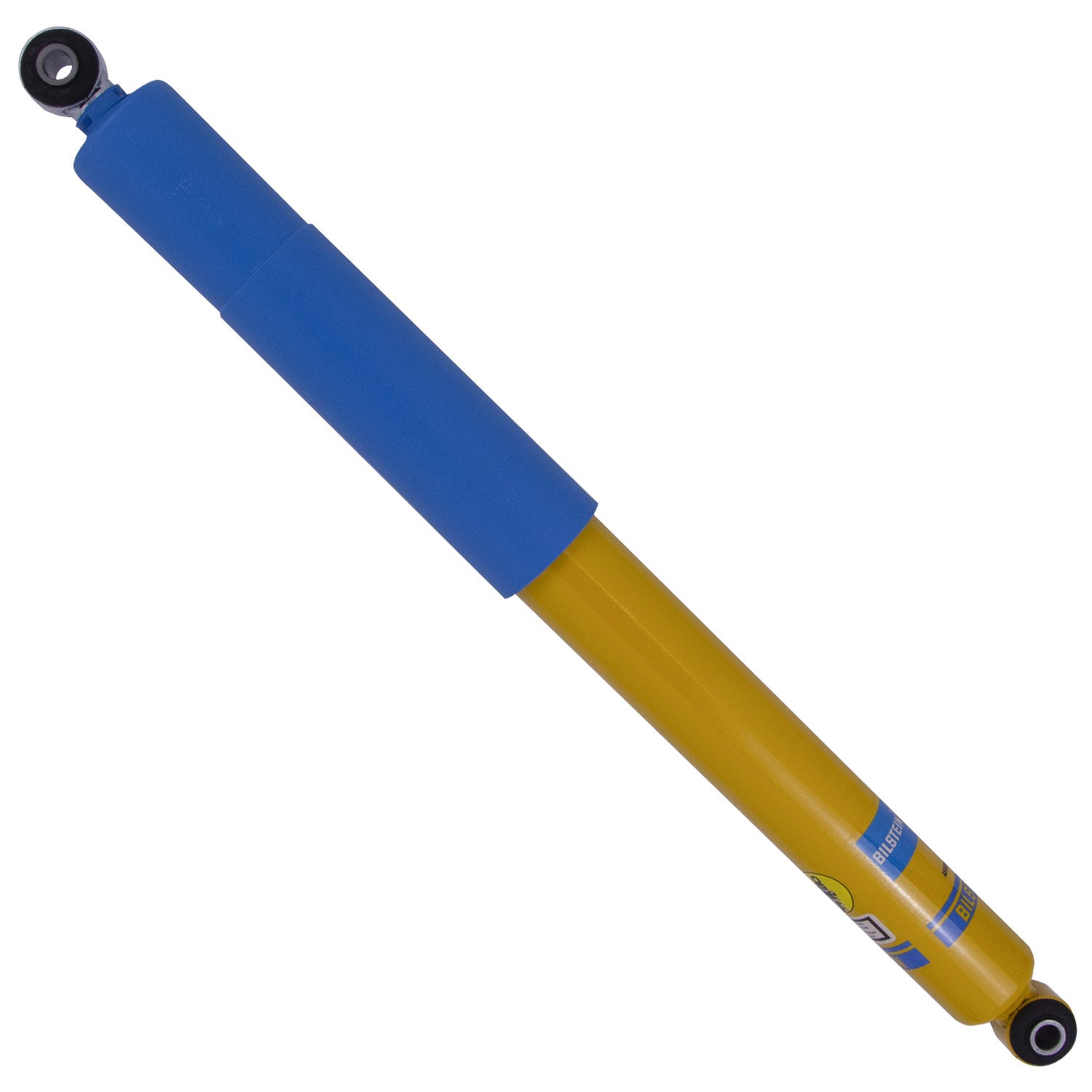

Bilstein 24-294195 - B6 4600 19-21 Ford Ranger Rear 46mm Monotube Shock Absorber (for 0-1in Rear Lift)

B6 4600 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Specific tuning for stock height vehicles
  • Uses OEM springs and mounting hardware
Extended Length (IN): 24.57
PartType: Shocks / Struts
Stroke/Travel Length (mm): 229.1
Piston Diameter: 46mm
Spring Seat Included: No
Internal Design: Monotube
Boot Included: Blue Straight
Adjustable Damping: Non-Adjustable
Reservoir: No
Shaft Diameter: 14mm
Finish: Yellow Paint
Stroke/Travel Length (IN): 9.02
Lower Mount Type: Eye 12.1mm
Collapsed Length (IN): 15.55
Extended Length (mm): 624.0
Series: B6 4600
Upper Mount Type: Eye 12.1mm
Body Design: Smooth Body (Non-coilover)
Segment: Light Truck
Collapsed Length (mm): 395.0
