Bilstein 24-274951 - 5100 Series 2017 Ford F-250 / F-350 Super Duty Front Shock Absorber

Bilstein  |  SKU: BIL-24-274951
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

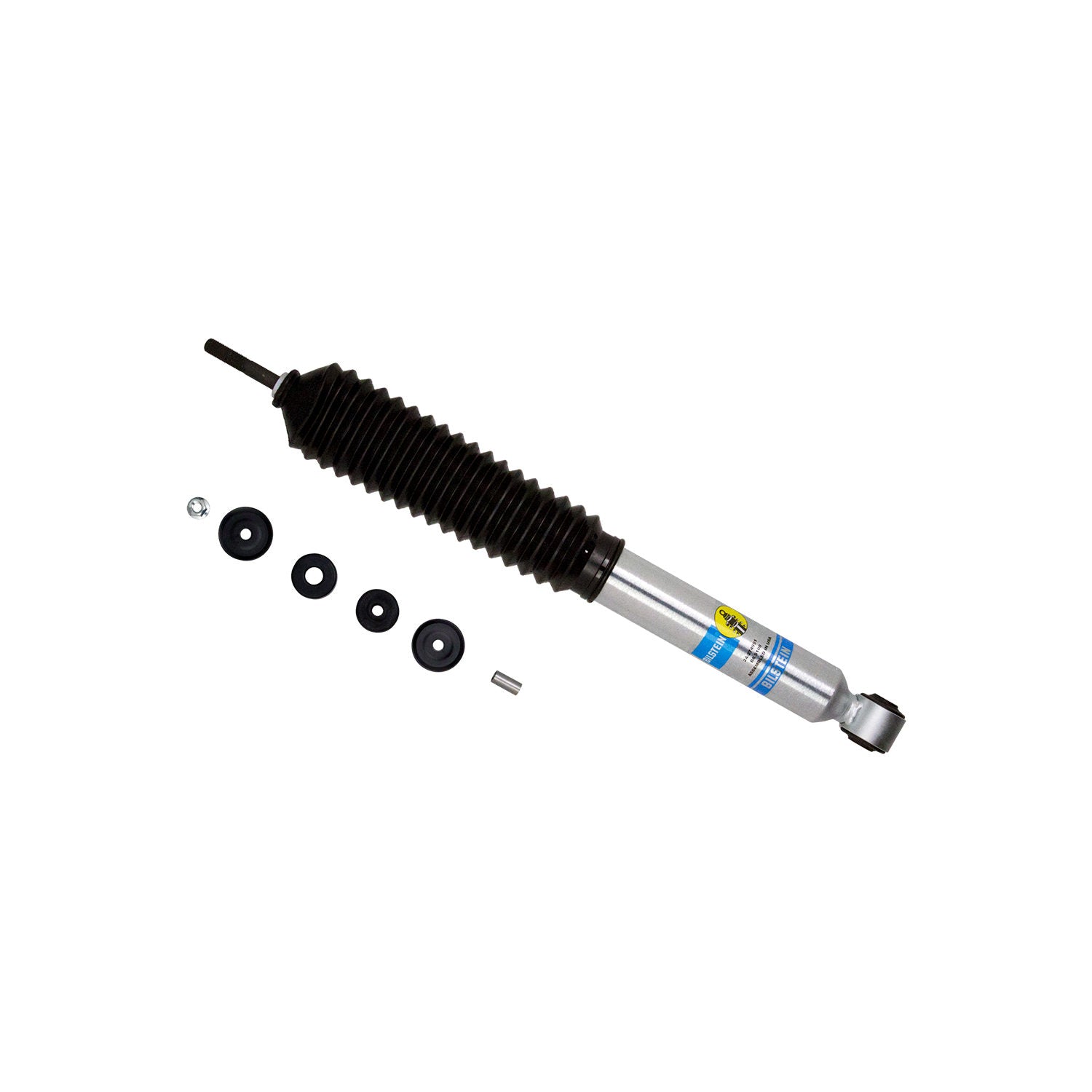

Bilstein 24-274951 - 5100 Series 2017 Ford F-250 / F-350 Super Duty Front Shock Absorber

Shock - B8 5100 Series - Monotube - Steel - Zinc Plated - Front - Ford Fullsize Truck 2017-22 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Series: B8 5100
Lower Mount Type: Eye 14.4mm
Spring Seat Included: No
Collapsed Length (IN): 13.46
Boot Included: Black Bellows
Finish: Zinc Plated
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (mm): 197.1
Shaft Diameter: 14mm
Extended Length (IN): 21.20
Stroke/Travel Length (IN): 7.76
PartType: Shocks / Struts
Reservoir: No
Piston Diameter: 46mm
Collapsed Length (MM): 342.0
Upper Mount Type: Stem
Body Design: Smooth Body (Non-Coilover)
Segment: Light Truck
Internal Design: Monotube
Extended Length (MM): 538.5
