Bilstein 24-267014 - 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

Bilstein  |  MPN: 24-267014  |  SKU: BIL-24-267014
$16000 $22360

Description

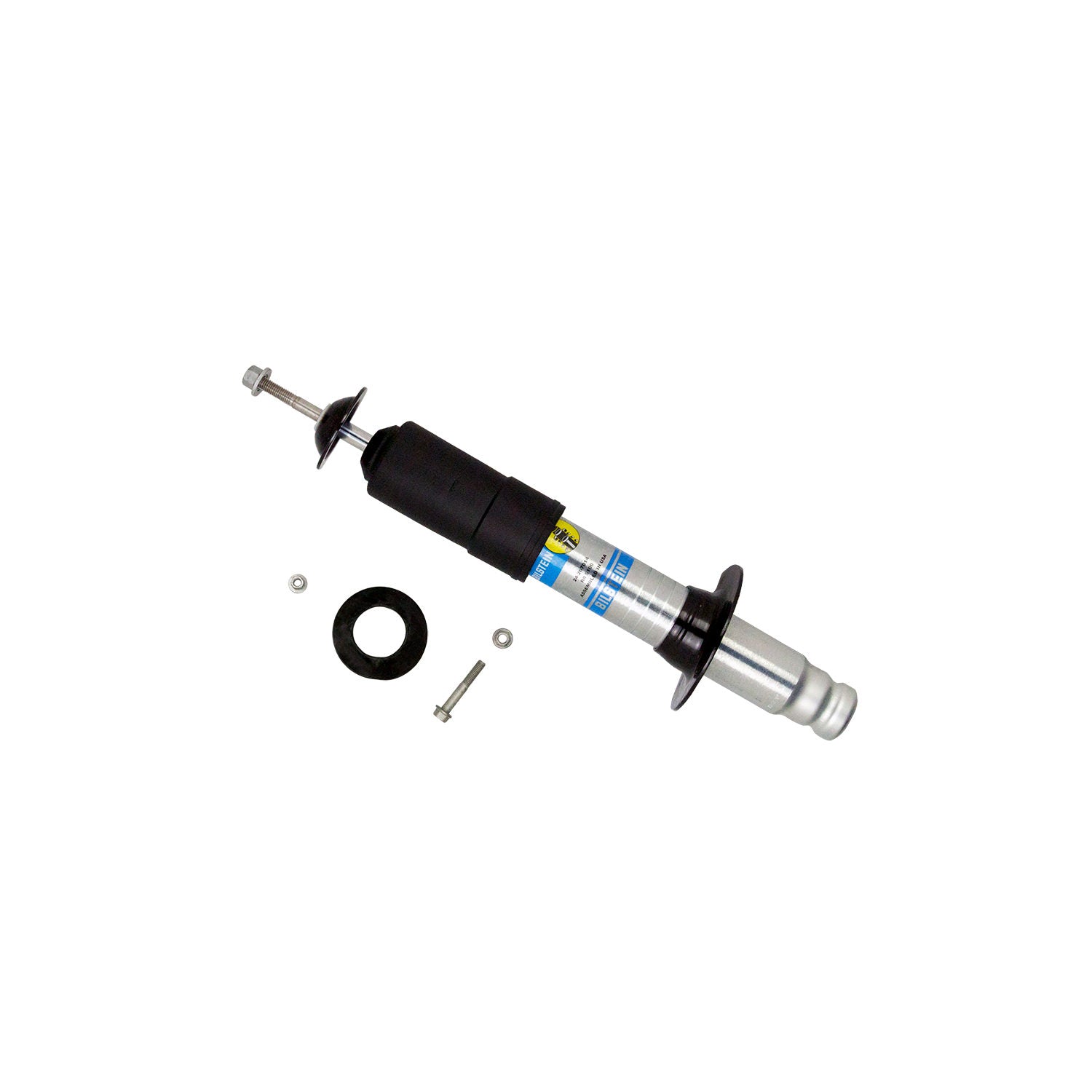

Bilstein 24-267014 - 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

PartType: Shocks / Struts
Segment: Light Truck
Boot Included: Black Straight
Adjustable Damping: Non-Adjustable
Extended Length (MM): 416.9
Spring Seat Included: Yes
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Collapsed Length (IN): 11.26
Lower Mount Type: Base Cup
Extended Length (IN): 16.41
Series: B8 5100 (Ride Height Adjustable)
Upper Mount Type: Stem
Reservoir: No
Finish: Zinc Plated
Body Diameter (ID): 46mm
Collapsed Length (MM): 286.1
