CSP SAVINGS!

CSP2026

Bilstein 24-256759 - B8 5100 Series 2014 Ford F-150 3.5/3.7/5.0/6.2 Front 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-24-256759
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

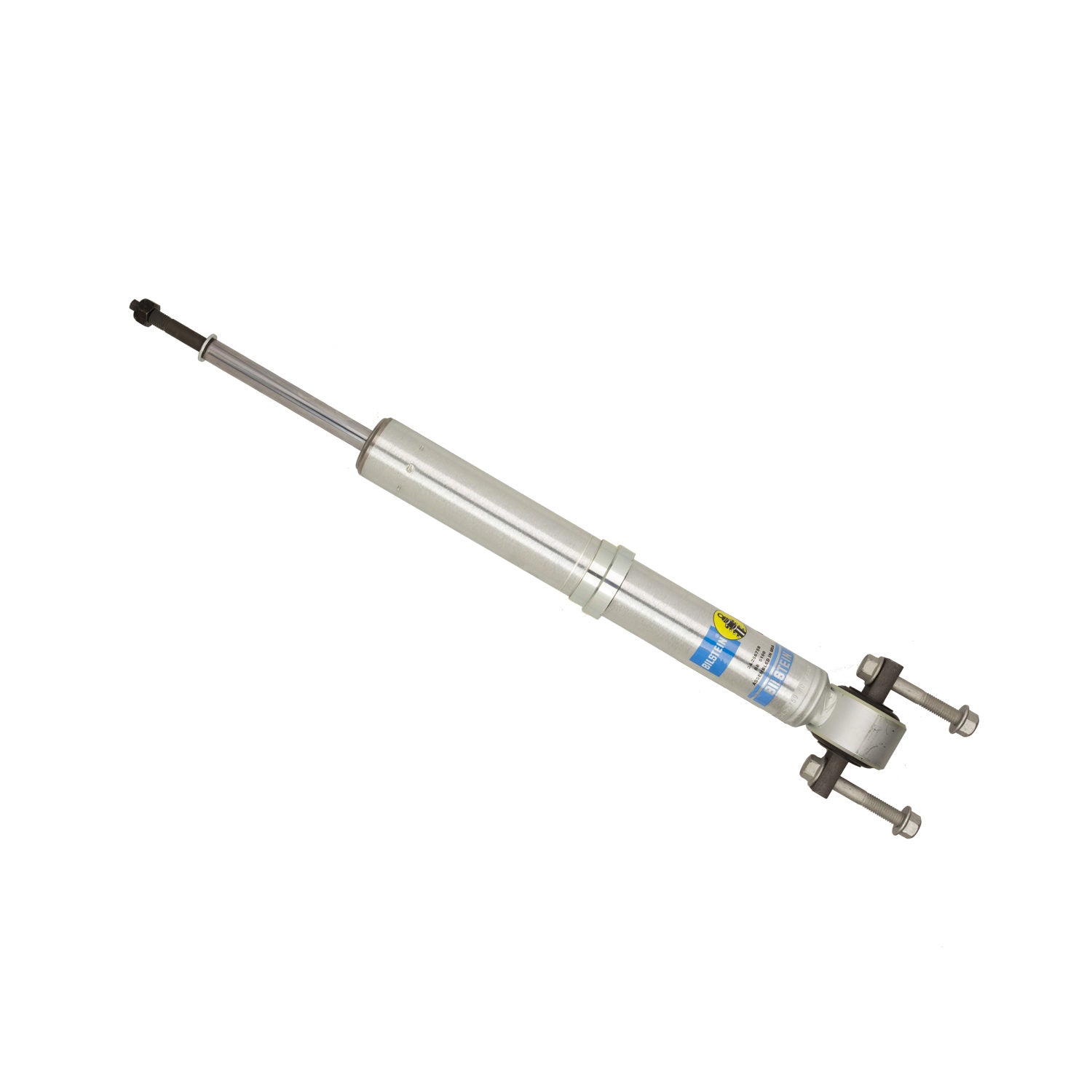

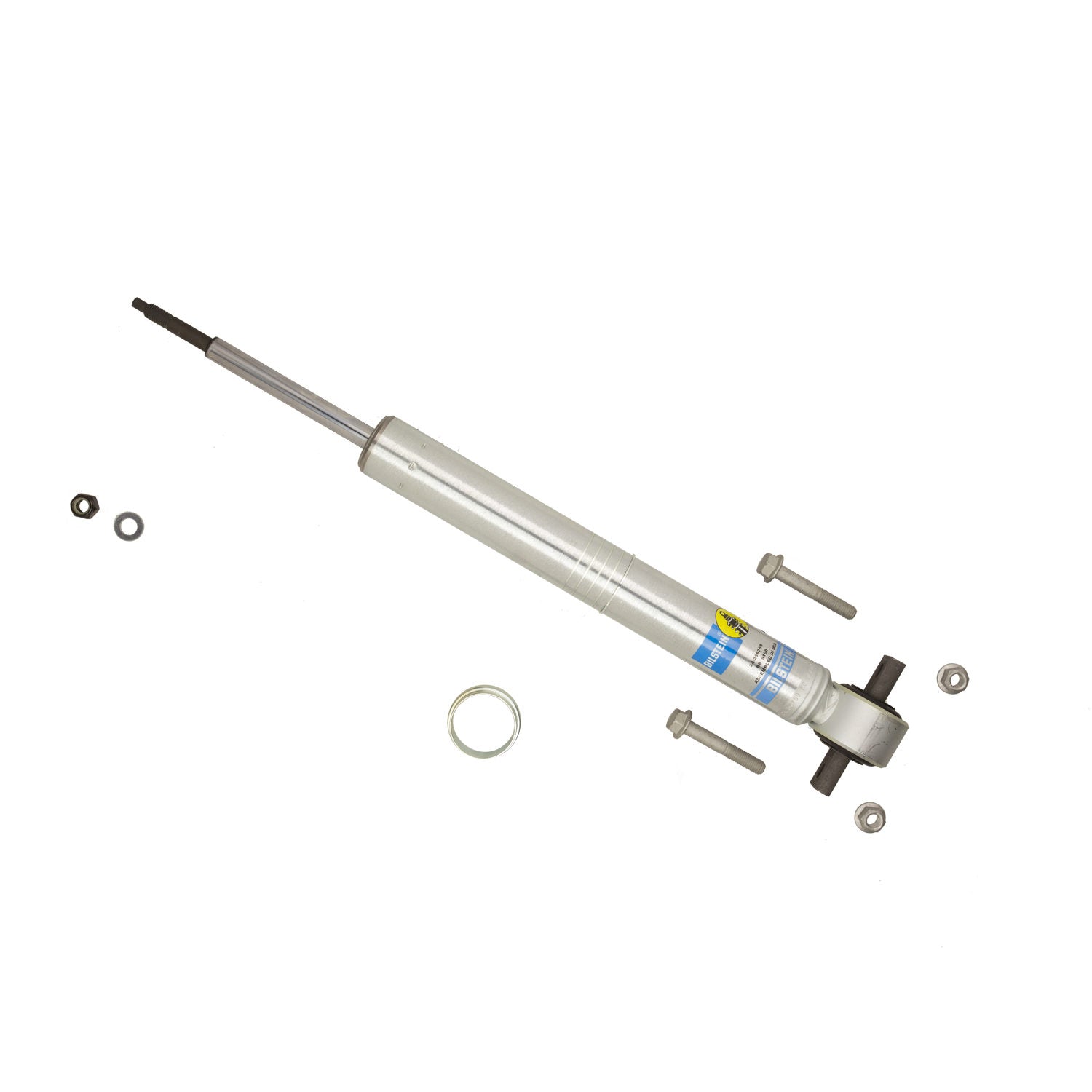

Bilstein 24-256759 - B8 5100 Series 2014 Ford F-150 3.5/3.7/5.0/6.2 Front 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Series: B8 5100 (Ride Height Adjustable)
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 429.6
Shaft Diameter: 14mm
Spring Seat Included: No
Extended Length (MM): 569.1
Boot Included: No
Upper Mount Type: Stem
Reservoir: No
Piston Diameter: 46mm
Extended Length (IN): 22.41
Stroke/Travel Length (IN): 5.55
Lower Mount Type: Crossbar
Internal Design: Monotube
Finish: Zinc Plated
PartType: Shocks / Struts
Stroke/Travel Length (mm): 141.0
Body Design: Snap Ring Grooved Body (Coilover)
Segment: Light Truck
Collapsed Length (IN): 16.91
