Bilstein 24-253161 - 5100 Series 11-16 GM 2500/3500 Front 46mm Monotube Shock Absorber
Bilstein | SKU:
BIL-24-253161
Sale price
$12300
Regular price
$17185
Unit price
/
Unavailable
$48.85 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

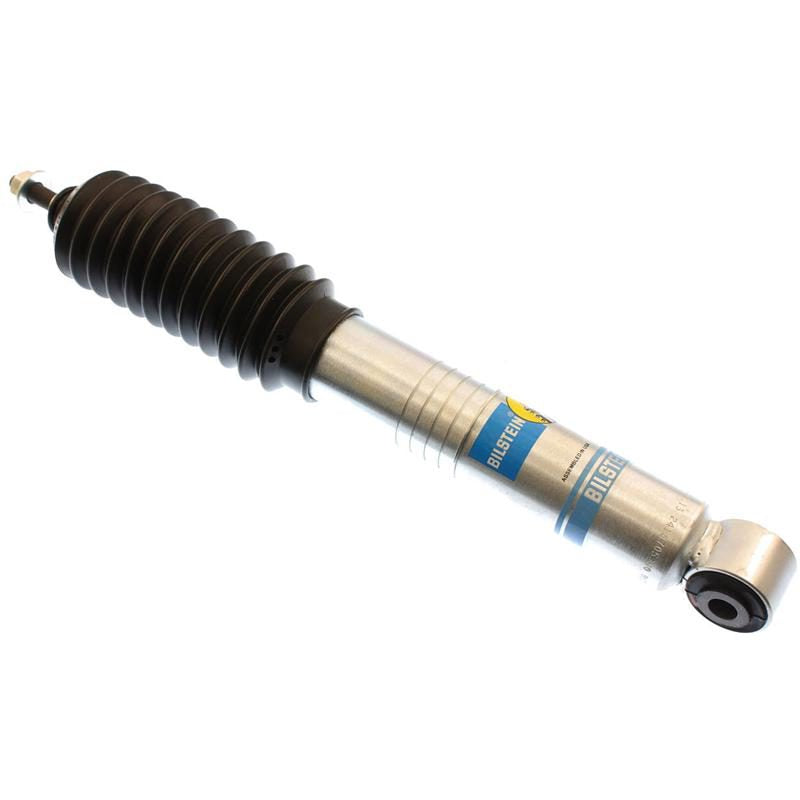

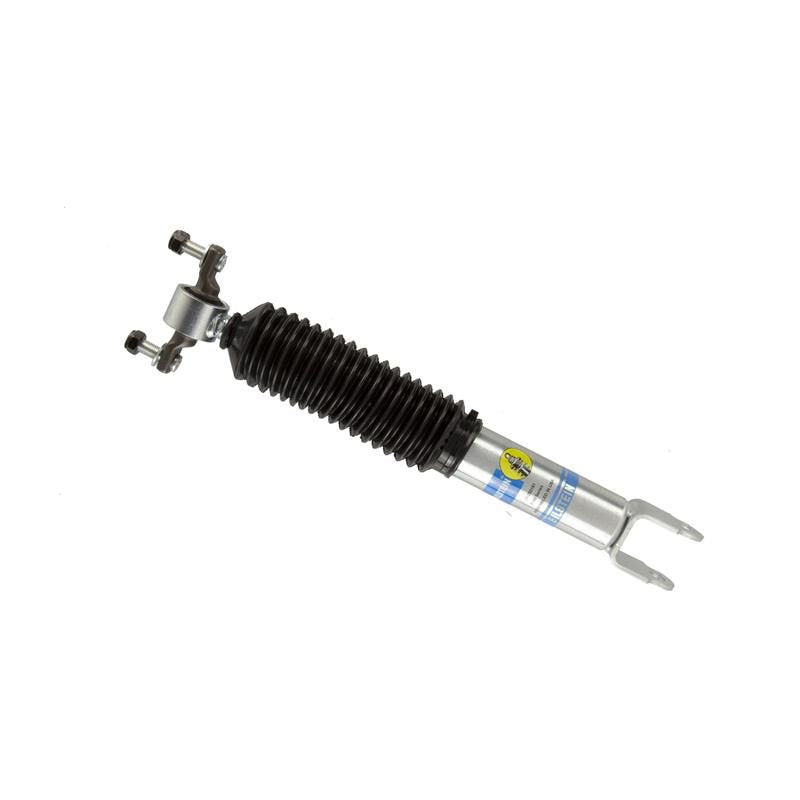

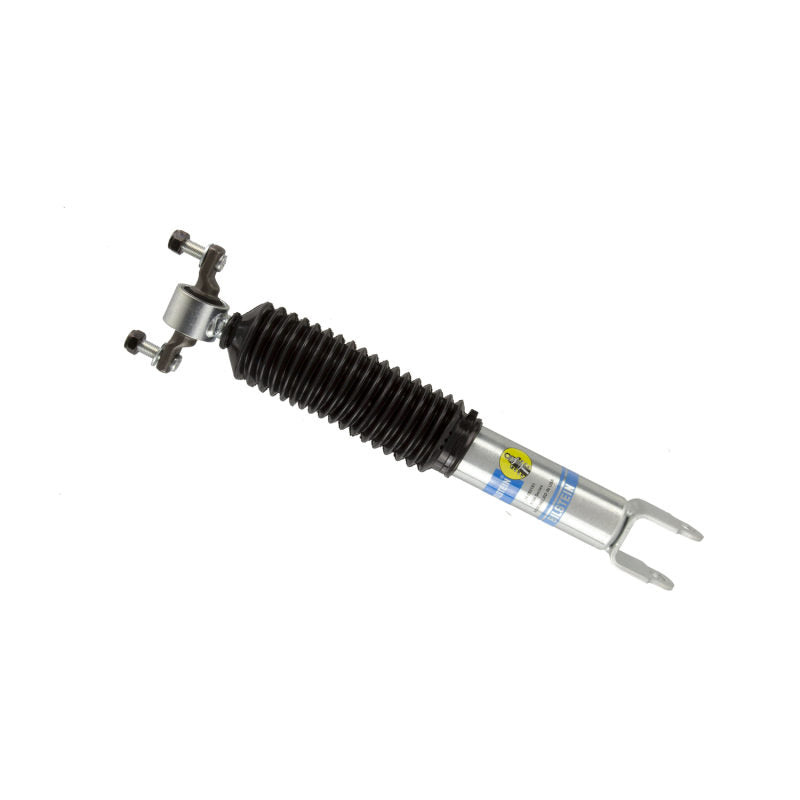

Bilstein 24-253161 - 5100 Series 11-16 GM 2500/3500 Front 46mm Monotube Shock Absorber
B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Finish: Zinc Plated
Series: B8 5100
Boot Included: Black Bellows
Stroke/Travel Length (IN): 4.37
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Lower Mount Type: Clevis
Upper Mount Type: Crossbar
Collapsed Length (MM): 357.0
Stroke/Travel Length (mm): 111.0
Reservoir: No
Piston Diameter: 46mm
Shaft Diameter: 14mm
Segment: Light Truck
Body Design: Smooth Body (Non-Coilover)
Spring Seat Included: No
Internal Design: Monotube
Collapsed Length (IN): 14.06
Extended Length (MM): 467.5
Extended Length (IN): 18.41
