Bilstein 24-232173 - B8 5100 07-13 Toyota Tundra 2Dr/4Dr 46mm Front Shock Absorber

Bilstein  |  SKU: BIL-24-232173
Sale price $17600 Regular price $24585

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

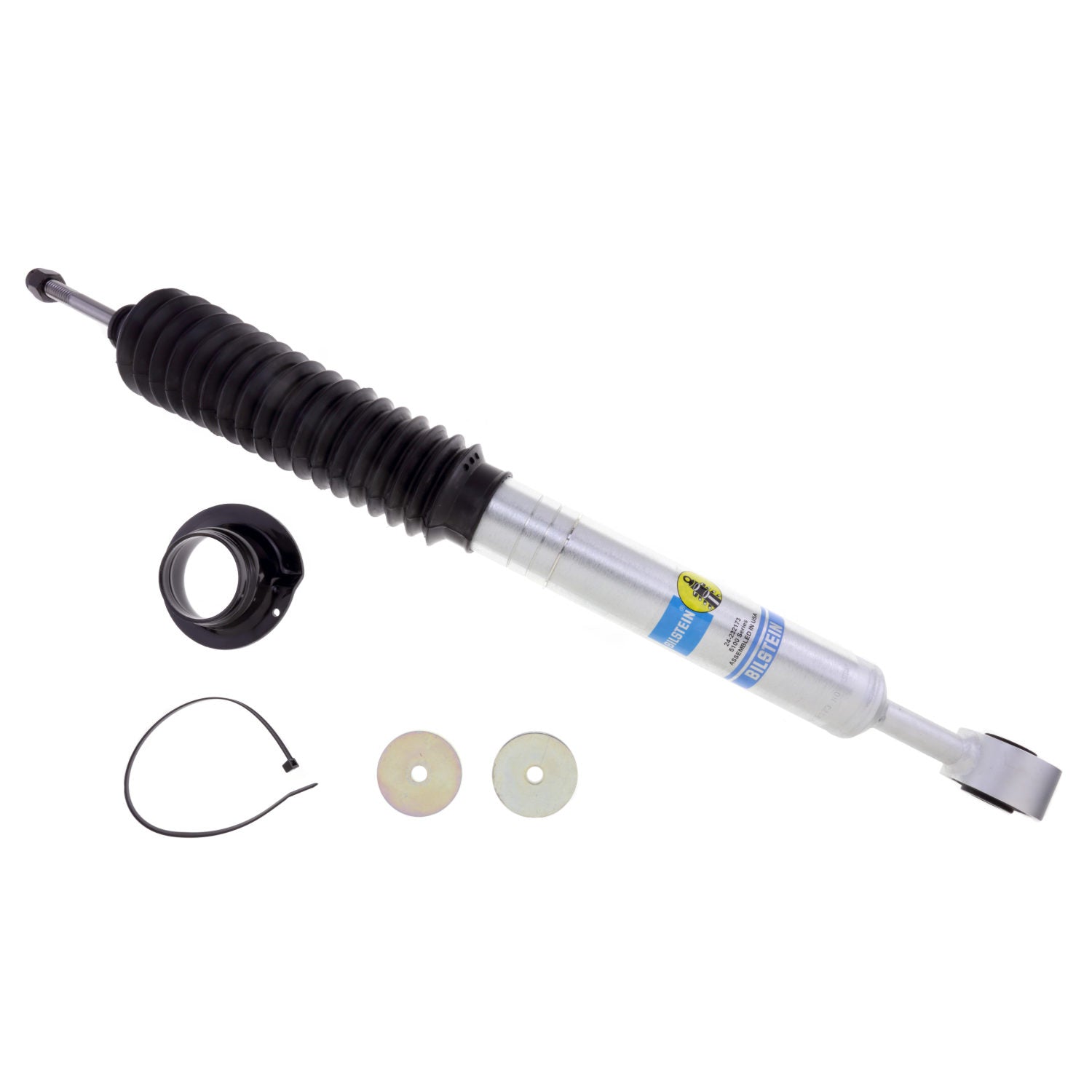

Bilstein 24-232173 - B8 5100 07-13 Toyota Tundra 2Dr/4Dr 46mm Front Shock Absorber

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Front - Toyota Fullsize Truck 2007-21 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application

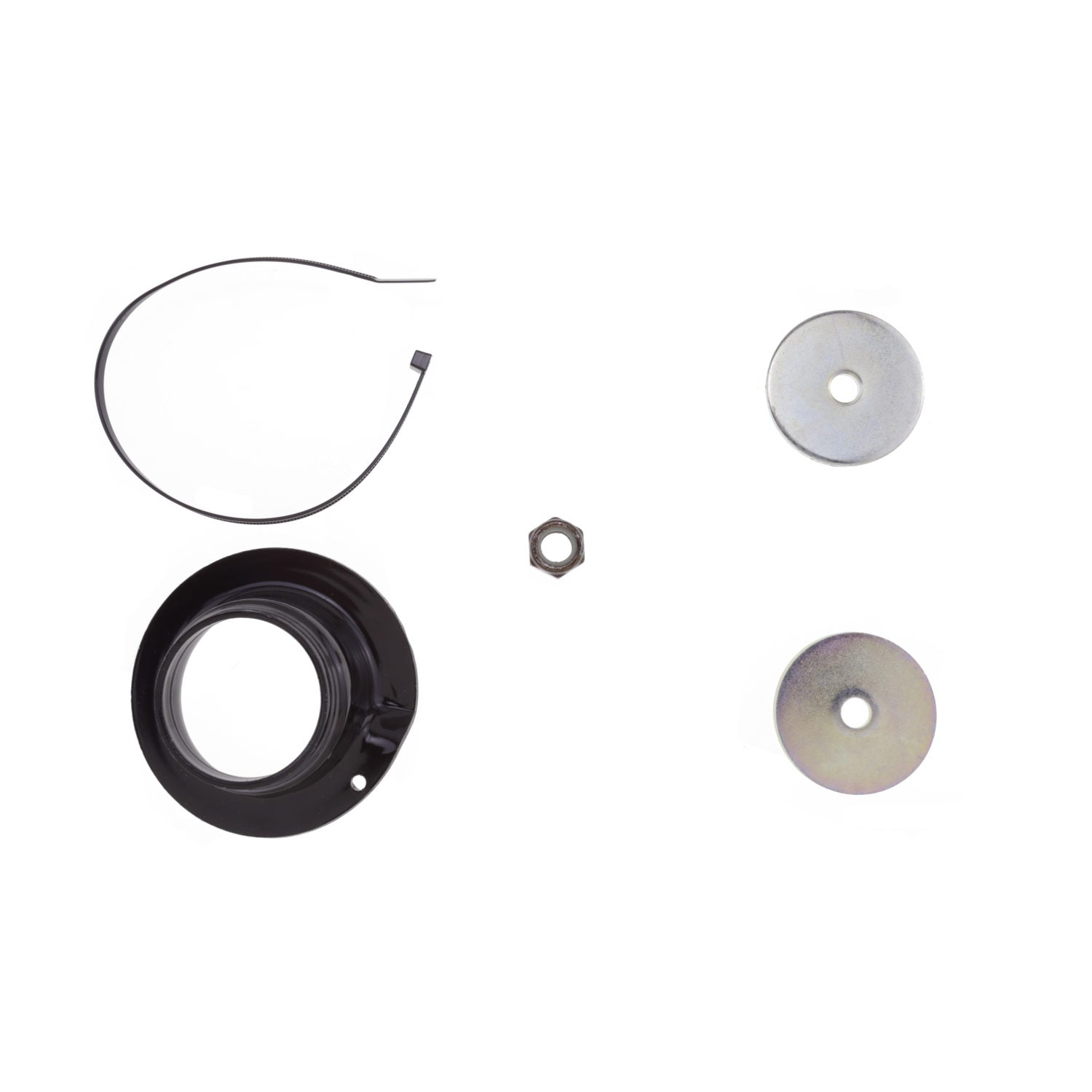

Boot Included: Black Bellows
Stroke/Travel Length (mm): 163.6
Piston Diameter: 46mm
Extended Length (IN): 24.35
Stroke/Travel Length (IN): 6.44
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 451.3
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Upper Mount Type: Stem
Shaft Diameter: 14mm
Collapsed Length (IN): 17.77
Series: B8 5100 (Ride Height Adjustable)
PartType: Shocks / Struts
Lower Mount Type: Eye 16.4mm
Reservoir: No
Segment: Light Truck
Spring Seat Included: Yes
Extended Length (MM): 618.5
