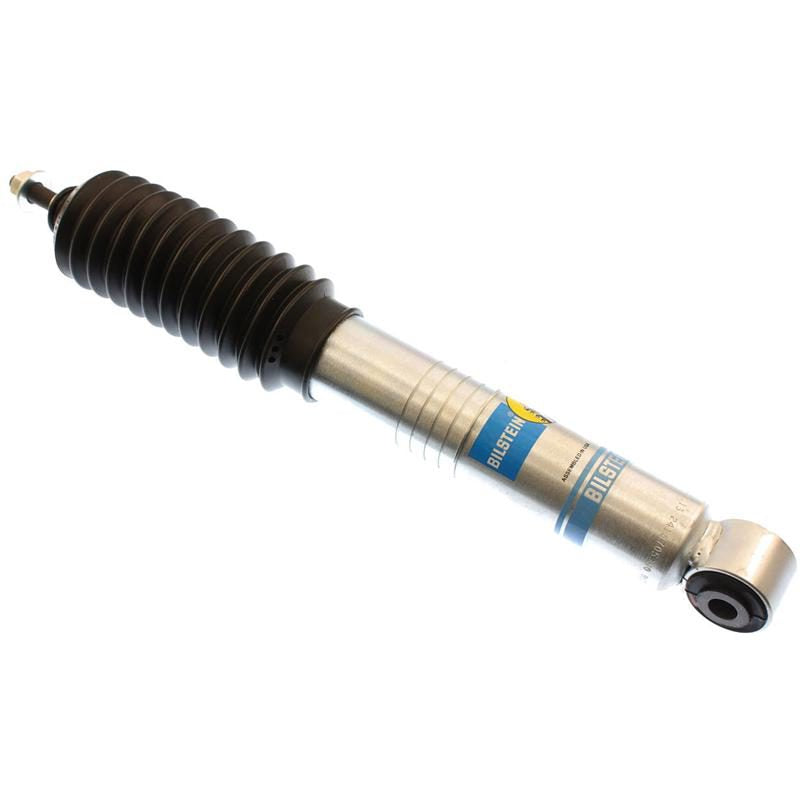

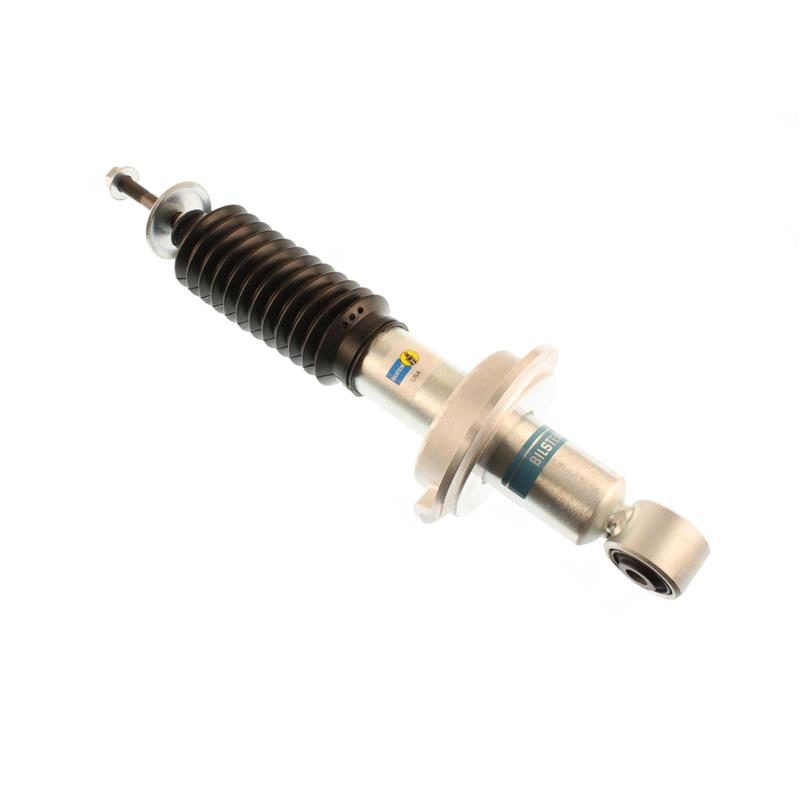

Bilstein 24-197649 - 5100 Series 2010 Nissan Titan XE Front 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-24-197649
Sale price $17600 Regular price $24585

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 24-197649 - 5100 Series 2010 Nissan Titan XE Front 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Stroke/Travel Length (IN): 4.24
Lower Mount Type: Eye 14.2mm
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Spring Seat Included: Yes
Extended Length (MM): 392.0
Finish: Zinc Plated
PartType: Shocks / Struts
Stroke/Travel Length (mm): 107.7
Shaft Diameter: 14mm
Boot Included: Black Bellows
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 284.2
Internal Design: Monotube
Extended Length (IN): 15.43
Series: B8 5100 (Ride Height Adjustable)
Upper Mount Type: Stem
Piston Diameter: 46mm
Segment: Light Truck
Collapsed Length (IN): 11.19
