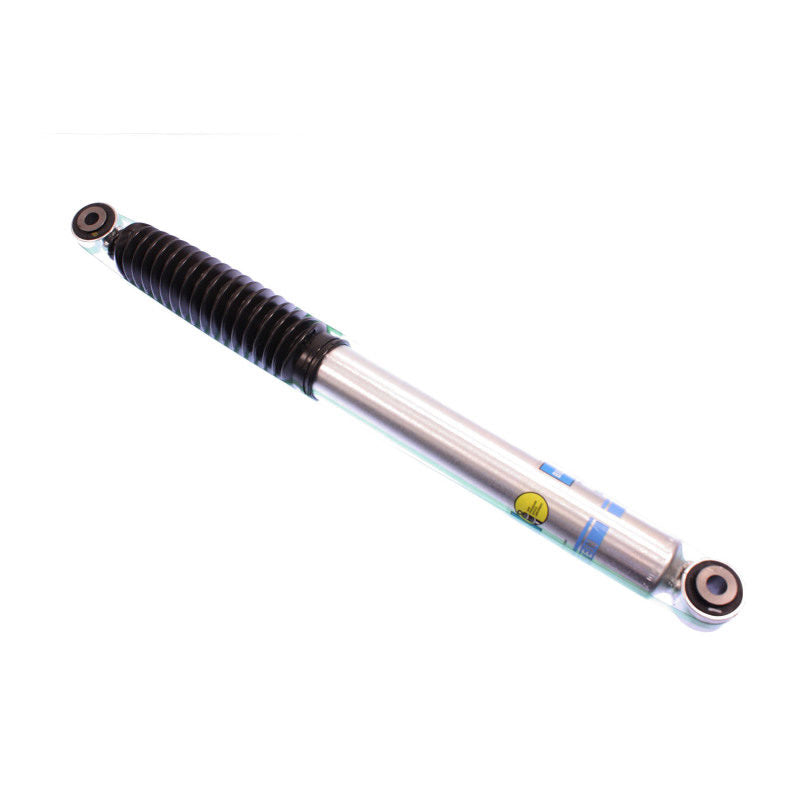

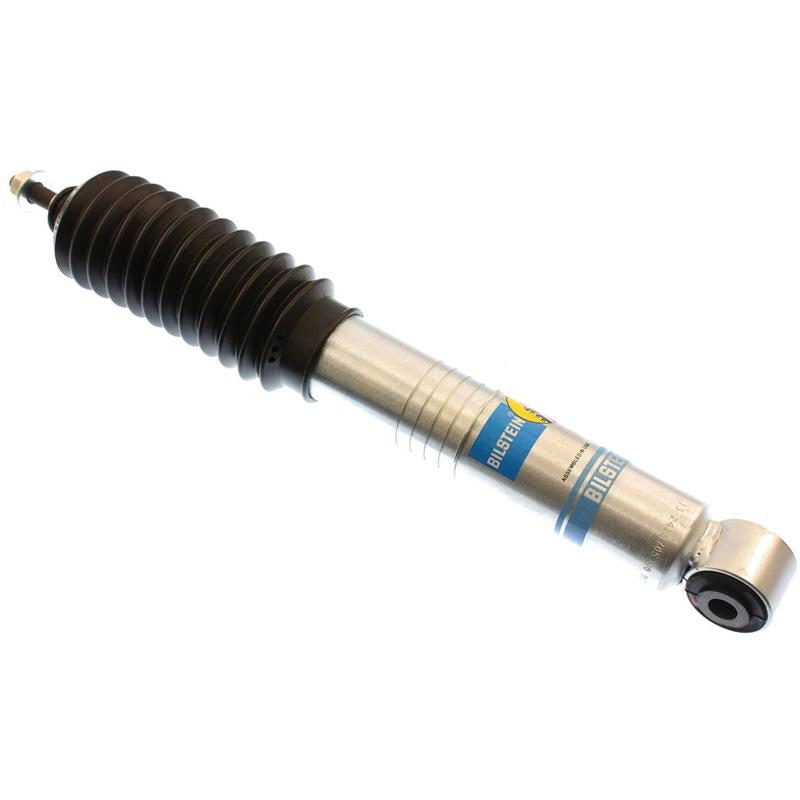

Bilstein 24-186766 - 5100 Series 2010 Nissan Titan XE 4WD Rear 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-24-186766
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 24-186766 - 5100 Series 2010 Nissan Titan XE 4WD Rear 46mm Monotube Shock Absorber

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Finish: Zinc Plated
Stroke/Travel Length (IN): 9.21
Lower Mount Type: Eye 14mm
Stroke/Travel Length (mm): 233.9
Collapsed Length (MM): 401.0
Shaft Diameter: 14mm
Series: B8 5100
Boot Included: Black Bellows
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Upper Mount Type: Eye 14mm
Reservoir: No
Piston Diameter: 46mm
Segment: Light Truck
Collapsed Length (IN): 15.79
Body Design: Smooth Body (Non-Coilover)
Spring Seat Included: No
Extended Length (MM): 635.0
Internal Design: Monotube
Extended Length (IN): 25.00
