Bilstein 24-186704 - B6 2004 Ford F-150 Lariat RWD Rear 46mm Monotube Shock Absorber
Bilstein | SKU:
BIL-24-186704
Sale price
$12300
Regular price
$17185
Unit price
/
Unavailable
$48.85 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

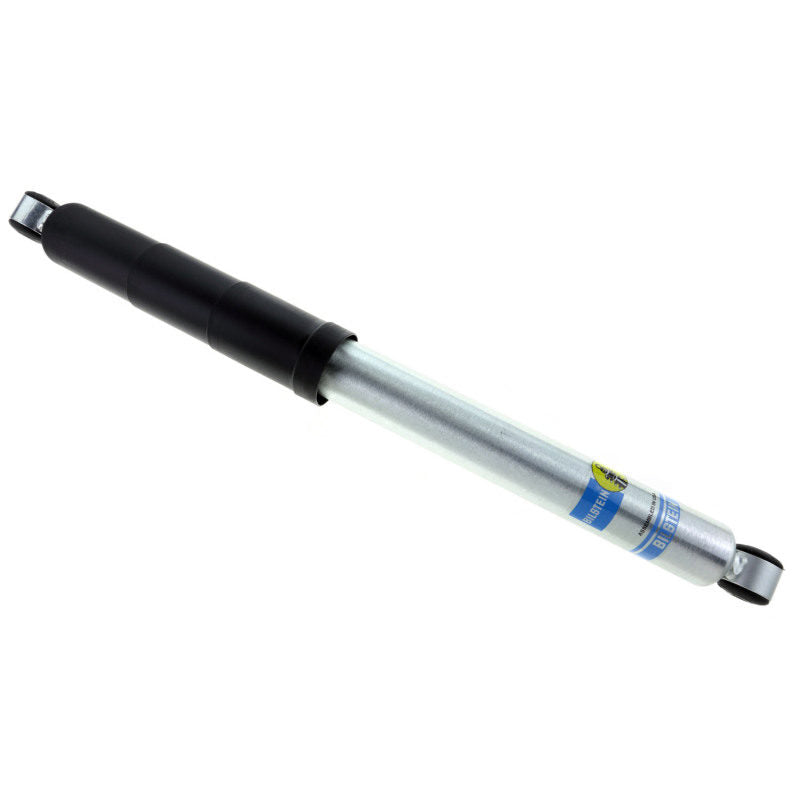

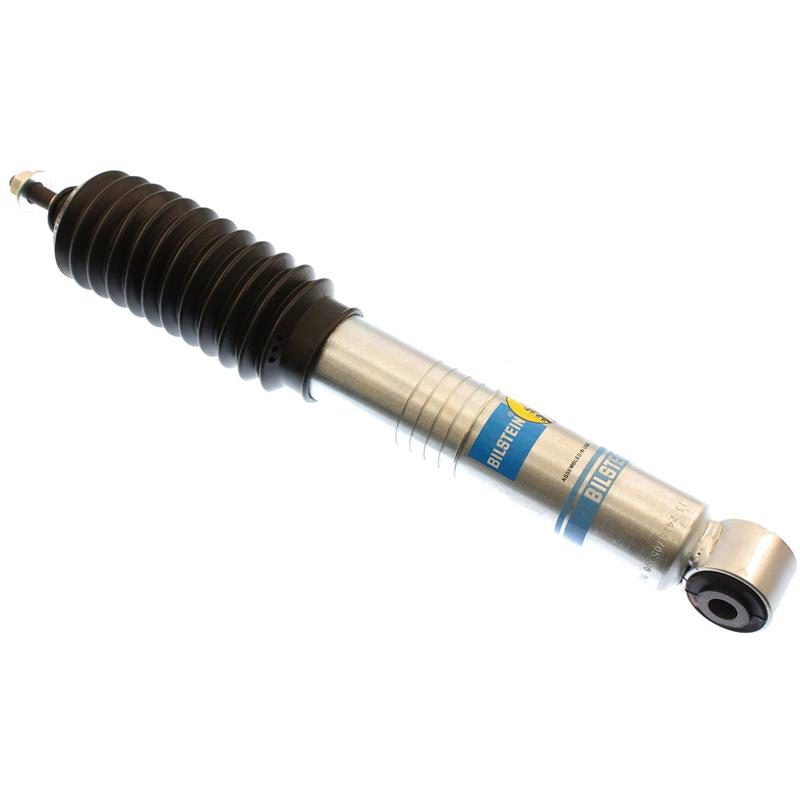

Bilstein 24-186704 - B6 2004 Ford F-150 Lariat RWD Rear 46mm Monotube Shock Absorber
B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Stroke/Travel Length (mm): 244.6
Collapsed Length (IN): 15.31
Spring Seat Included: No
Finish: Zinc Plated
Boot Included: Black Straight
Adjustable Damping: Non-Adjustable
Reservoir: No
Segment: Light Truck
Extended Length (IN): 24.94
Lower Mount Type: Eye 12mm
Collapsed Length (MM): 389.0
Shaft Diameter: 14mm
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 633.5
Series: B8 5100
PartType: Shocks / Struts
Upper Mount Type: Eye 12mm
Piston Diameter: 46mm
Internal Design: Monotube
Stroke/Travel Length (IN): 9.63
