Bilstein 24-186520 - M 7100 Classic Coilover - 5.90in Stroke/Travel Length

Bilstein  |  SKU: BIL-24-186520
Sale price $21276 Regular price $23404

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

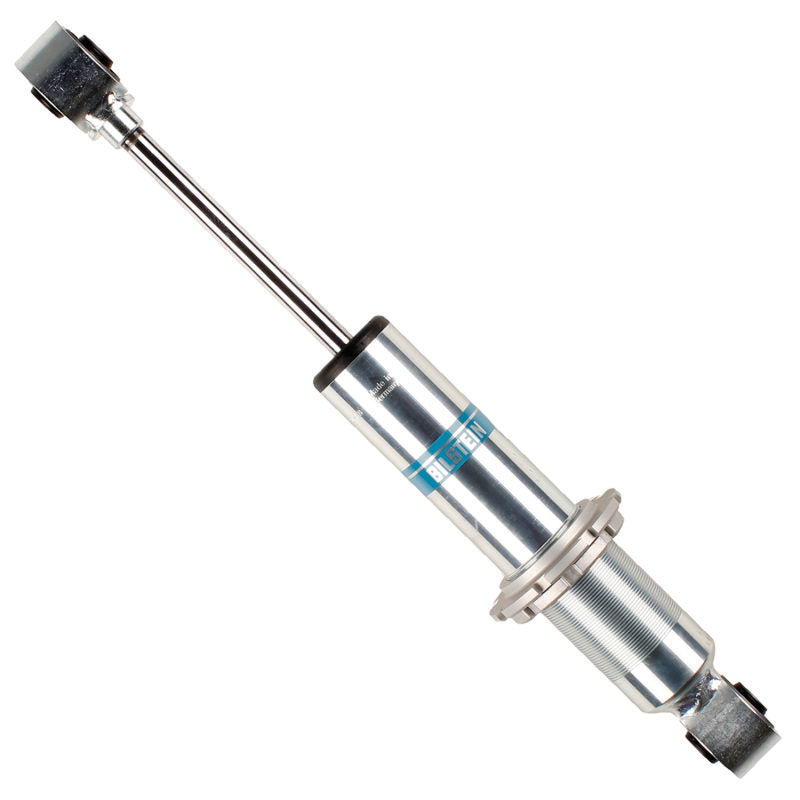

Bilstein 24-186520 - M 7100 Classic Coilover - 5.90in Stroke/Travel Length

M 7100 Classic (Coilover) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Available for standard and coilover applications in a wide variety of lengths
  • Self-adjusting deflective disc valving
Collapsed Length (IN): 12.34
Spring Seat Included: Lower
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Internal Design: Monotube
PartType: Shocks / Struts
Body Design: Threaded Body (Coilover)
Extended Length (MM): 463.0
Upper Mount Type: Eye 14.2mm
Series: M 7100 Classic (Coilover)
Stroke/Travel Length (IN): 5.90
Collapsed Length (MM): 313.5
Stroke/Travel Length (mm): 149.9
Rebound @0.52m/s: 3030
Reservoir: No
Finish: Zinc Plated
Lower Mount Type: Eye 14.2mm
Compression @0.52m/s: 965
Segment: Motorsports
Piston Diameter: 46mm
Shaft Diameter (mm): 14.0
Extended Length (IN): 18.22
Spring Hardware: Single Rate (2.5in)
