Bilstein 24-185509 - 5100 Series 1984 Ford Bronco II Base Rear 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-24-185509
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

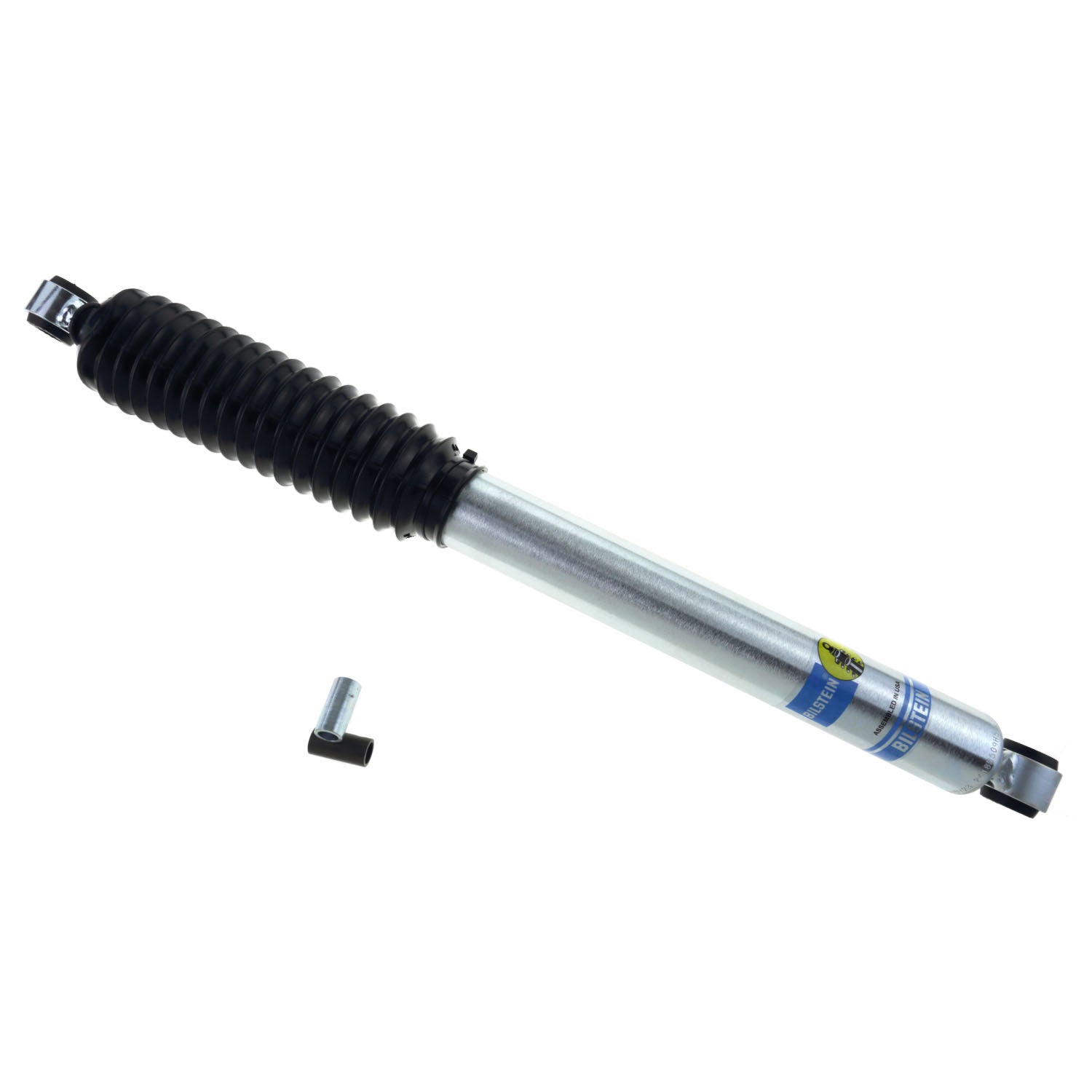

Bilstein 24-185509 - 5100 Series 1984 Ford Bronco II Base Rear 46mm Monotube Shock Absorber

Shock B8 5100 Series - Monotube - Steel - Zinc Plated - Rear - Ford Compact SUV / Truck 1983-97 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Finish: Zinc Plated
Adjustable Damping: Non-Adjustable
Series: B8 5100
Boot Included: Black Bellows
Stroke/Travel Length (IN): 10.02
PartType: Shocks / Struts
Lower Mount Type: Eye 16mm
Stroke/Travel Length (mm): 254.5
Upper Mount Type: Eye 16mm
Collapsed Length (MM): 410.0
Reservoir: No
Spring Seat Included: No
Piston Diameter: 46mm
Segment: Light Truck
Shaft Diameter: 14mm
Collapsed Length (IN): 16.14
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Extended Length (MM): 664.5
Extended Length (IN): 26.16
