Bilstein 24-146708 - 5100 Series 2010 Jeep Wrangler X Front 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-24-146708
Sale price $12300 Regular price $17185

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

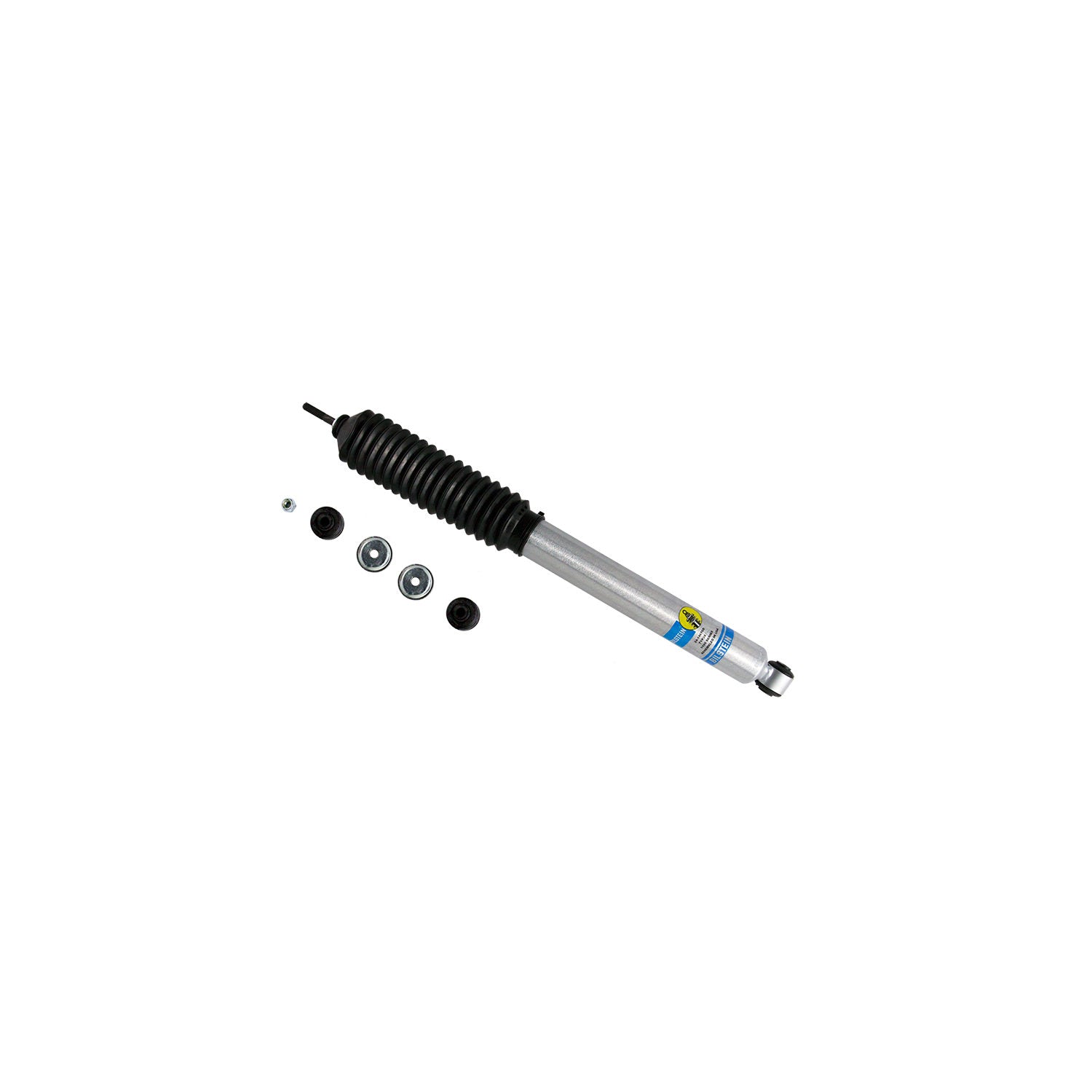

Bilstein 24-146708 - 5100 Series 2010 Jeep Wrangler X Front 46mm Monotube Shock Absorber

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Front - 1-1/2 to 3 in Lifted - Jeep Wrangler JK 2007-13 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Extended Length (MM): 625.5
Adjustable Damping: Non-Adjustable
Extended Length (IN): 24.63
Stroke/Travel Length (IN): 9.65
Lower Mount Type: Eye 12.1mm
Upper Mount Type: Stem
Piston Diameter: 46mm
Shaft Diameter: 14mm
Collapsed Length (IN): 14.98
Collapsed Length (MM): 380.6
Internal Design: Monotube
Finish: Zinc Plated
Series: B8 5100
Boot Included: Black Bellows
PartType: Shocks / Struts
Stroke/Travel Length (mm): 245.1
Reservoir: No
Spring Seat Included: No
Segment: Light Truck
Body Design: Smooth Body (Non-Coilover)
